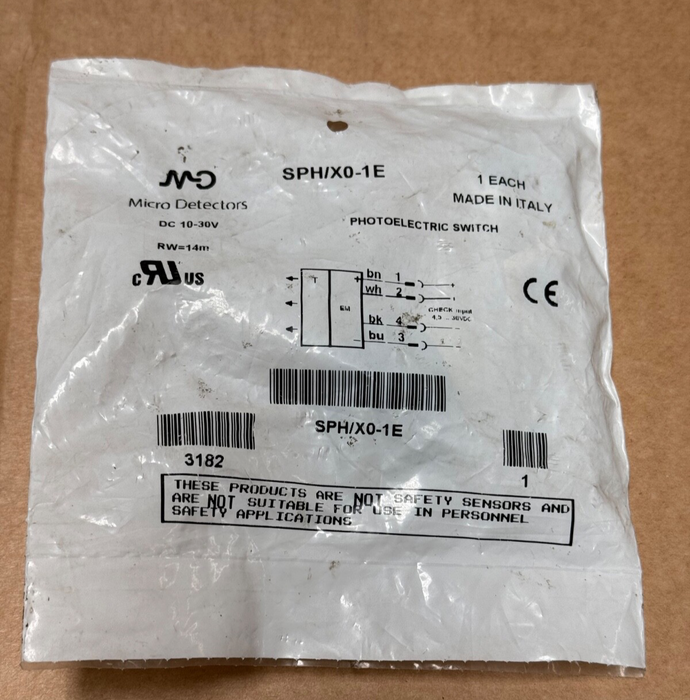

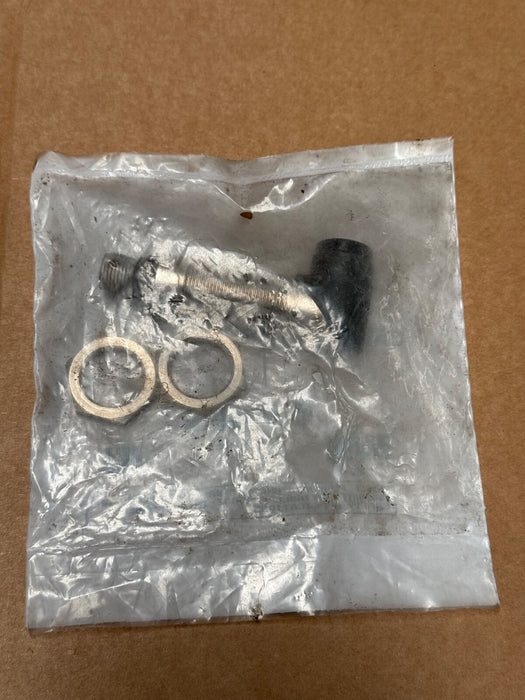

Micro Detectors – SPH/X0‑1E – M18 Axial Photoelectric Sensor Emitter

The Micro Detectors SPH/X0‑1E is an axial emitter/photoelectric sensor in a right-angle M18 housing, designed to pair with SP-series receivers. Featuring robust red LED emission, fast response, and compatibility with 14 m sensing systems, it’s optimized for long-range retro-reflective and diffuse applications in industrial automation.

 Key Features

• Model: SPH/X0‑1E – axial emitter element (right-angle body) †

• Housing Size: M18 × ~75 mm barrel; right-angle orientation for space-efficient installation

• Sensing Range: Up to 14 m (when used with compatible SP receivers)

• Light Source: Red LED (~660 nm); indication LEDs for power and emitter activity

• Power Requirements:

  • Supply voltage 10–30 V DC; typical current ≤25 mA; max ripple 10 %

  • Protection against reverse polarity and transient voltage spikes

• Output Compatibility: Designed to pair with NPN/PNP SP-series receivers (e.g., SSZ, SSD, SSG), enabling up to 14 m object detection

• Connector: M12 4-pin male connector; industrial seal rated for harsh environments

• Response Characteristics: Power-up ready in ≤200 ms; robust light immunity for stable sensing

• Environmental Rating: IP67 sealed, operating temperature −25 to +70 °C
