The Micro Detectors SS7/0N‑0E is a rugged M18 tubular diffuse (reflective) photoelectric sensor featuring a 400 mm sensing range and NPN output. With selectable light‑ON/dark‑ON switching, IP67 protection in plastic housing, and M12 connector, this sensor is suitable for harsh industrial environments requiring reliable object detection.

Key Features:

• Model: SS7/0N‑0E

• Sensor Type: Tubular diffuse (reflective), 400 mm sensing range

• Housing: M18 plastic, IP67 rated

• Supply Voltage: 10–30 V DC

• Current Consumption: ≤ 30 mA

• Output: 3‑wire NPN transistor, light‑ON/dark‑ON selectable (“0N” = NPN)

• Load Current: ≤ 100 mA

• Leakage Current: ≤ 10 µA

• Output Voltage Drop: ≤ 1.2 V @ 100 mA

• Switching Frequency: ~250 Hz typical (for SS7 series)

• Connector: M12 4‑pin or axial cable

• Protection Circuitry: Short‑circuit and reverse‑polarity protected

• Environmental: IP67, –25 °C to +70 °C, suitable for industrial use

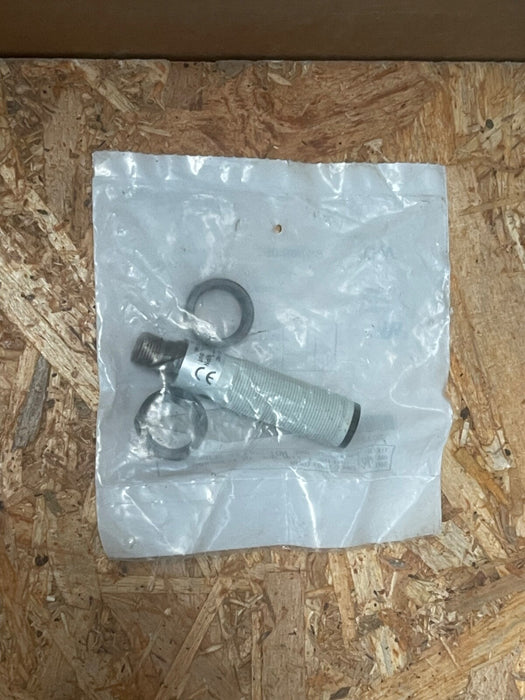

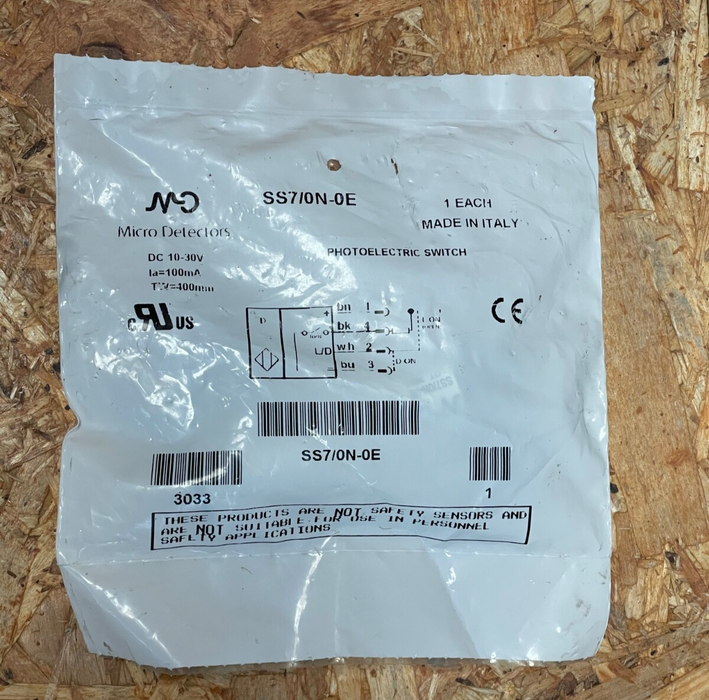

Micro Detectors – SS7/0N-0E – M18 Tubular Diffuse Photoelectric Sensor (NPN)
