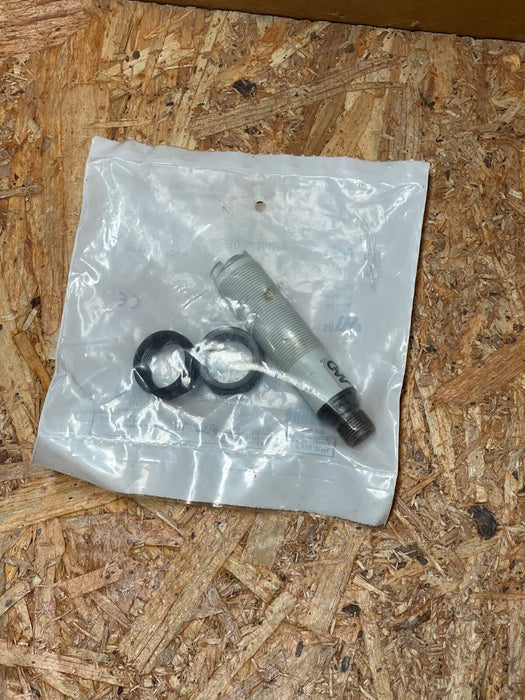

Micro Detectors – SSP/DN‑0E – M18 Tubular Diffuse Photoelectric Sensor (NPN Outp

The Micro Detectors SSP/DN‑0E is an M18 tubular diffuse (reflective) photoelectric sensor with an NPN output, designed for detection of objects in industrial automation. Featuring IP67 stainless-steel housing and selectable light/dark switching, it’s ideal for rugged environments and precise object sensing.

Key Features:

• Model: SSP/DN‑0E

• Sensor Type: Diffuse (reflective) with background suppression capabilities

• Housing: M18 tubular, stainless steel, IP67 rated

• Detection Range: Up to ~400 mm (consistent with SSP series diffuse sensors)

• Voltage Supply: 10–30 V DC

• Output: 3‑wire NPN transistor, light‑ON (DN designation)

• Load Current: ≤ 100 mA

• Ripple: Max 10%

• Output Voltage Drop: ≤ 2 V @ 100 mA

• Supply Current: ≤ 30 mA

• Indicators: LED status for power/load and switching

• Mounting: Axial or M12 connector options

• Environmental: IP67, –25 °C to +70 °C typical industrial range
