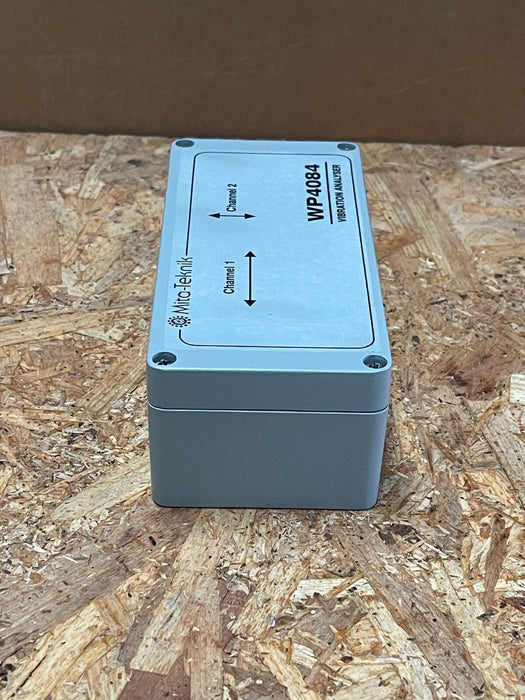

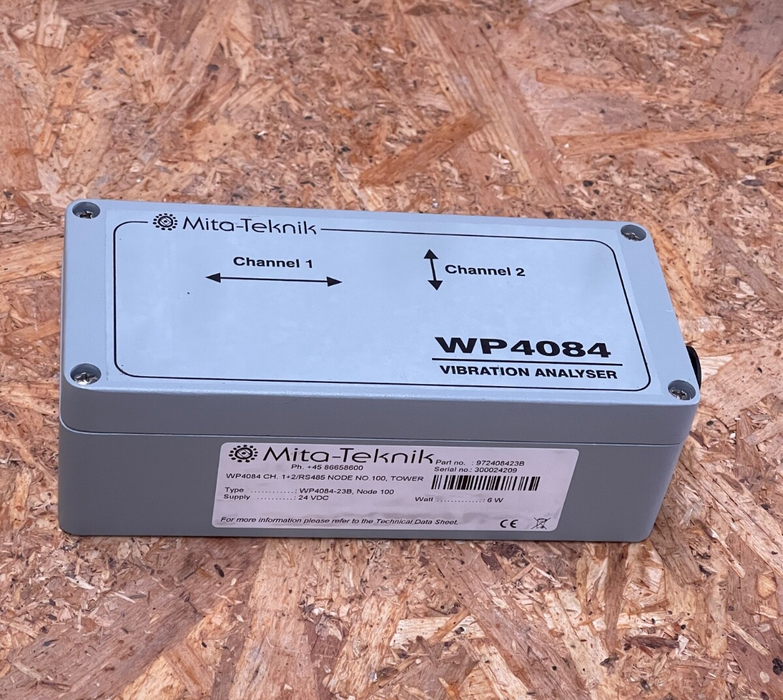

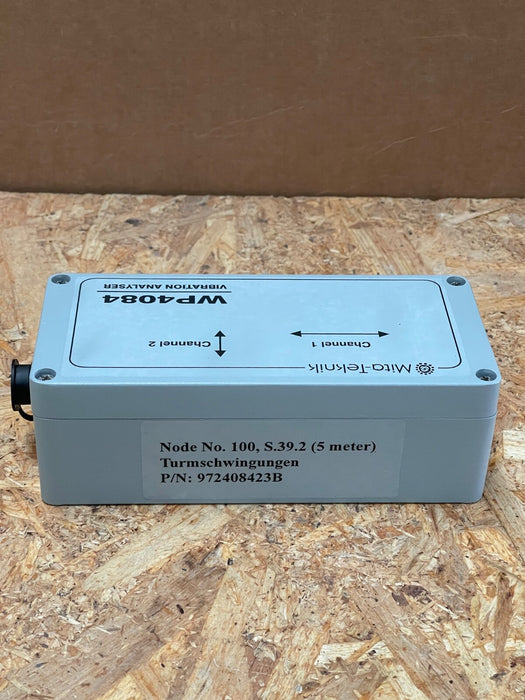

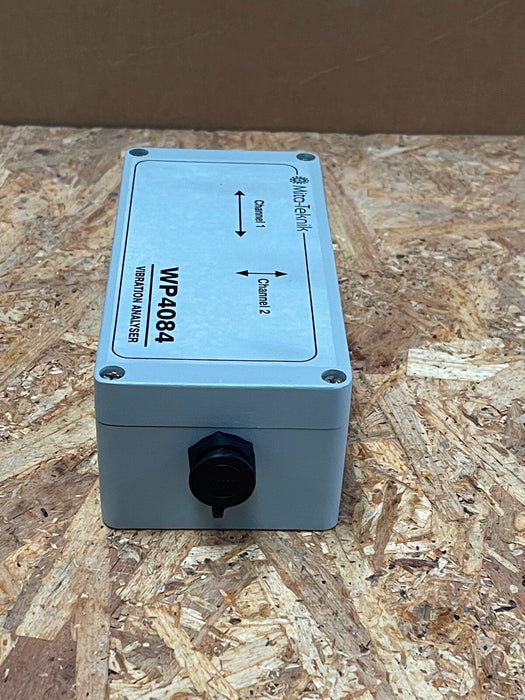

Mita‑Teknik – WP4084‑23B (972408423B) – Dual‑Channel Vibration Analyser

Main Features

• Manufacturer: Mita‑Teknik (part of Emerson’s wind energy instrumentation)

• Model/MPN: WP4084‑23B / Part No. 972408423B

• Device Type: Dual‑channel vibration analyser module, built for continuous condition monitoring—optimized for tower-mounted installation (Node 100)

• Measurement Specs:

  • Frequency bandwidth: 0.1–5 Hz

  • Vibration range: 0.01–0.300 g

  • Supports one or two accelerometers to track vibrations in X/Y axes

• Alarm Functionality:

  • Internal user-adjustable alarm levels with delay timing

  • Watchdog self-test every hour for sensor, cable, and power supply verification

• Communication: RS‑485 node-based interface (configurable as Node 100) with relay output to trigger shutdown or alert systems

• Configuration: Set center frequency, bandwidth, alarm thresholds, and delay via supplied PC software or controller communication

• Enclosure & Power: Rugged housing (approx. 18×8×6 cm, 0.6 kg) – powered by 24 V DC, draws ~6 W

• Primary Application: Designed for low-frequency vibration surveillance on wind turbine towers—ideal for early fault detection and shuttering mechanisms
