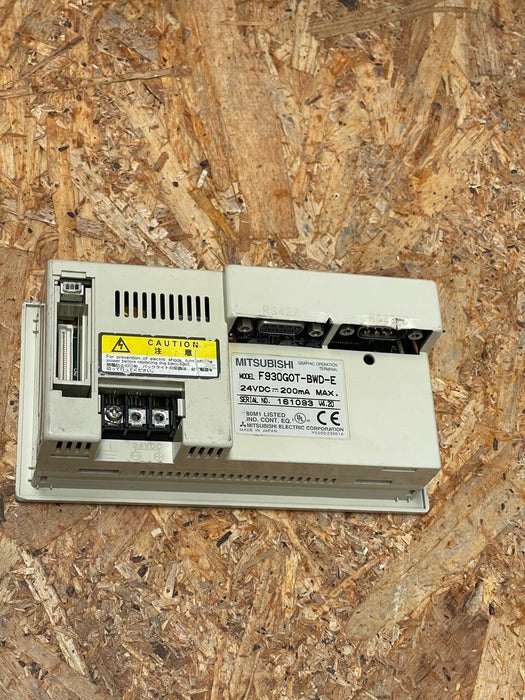

Mitsubishi – F930GOT‑BWD‑E – 4.4″ F900 GOT Graphic Touch Terminal, 24 V DC

The Mitsubishi F930GOT‑BWD‑E is a compact and durable Graphic Operation Terminal (GOT) from the F900 series, ideal for machine panels and PLC interfacing. Featuring a monochrome 4.4″ STN touchscreen display in blue/white and robust industrial specs, it provides reliable operator interactions and secure data access over RS‑422, RS‑232, and service port links.

Key Features:

• Model: F930GOT‑BWD‑E

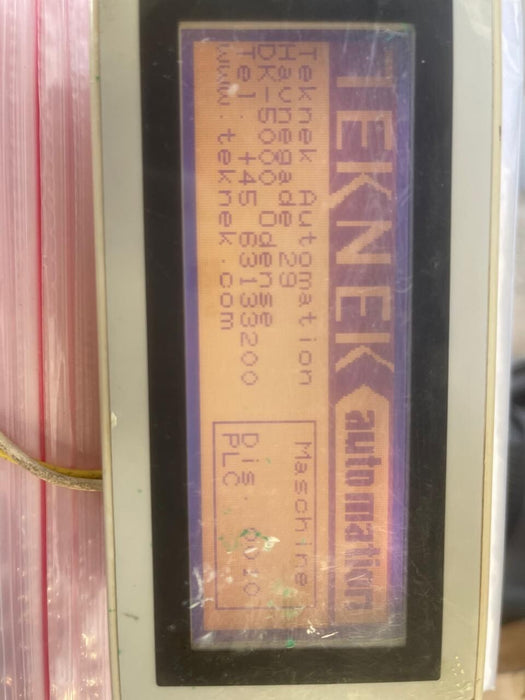

• Display: 4.4″ STN, 240 × 80 dots, 2‑color (blue/white), showing 15×5 full‑width characters; ~117×42 mm active area

• Touchscreen: Resistive input via soft‑key touchscreen

• Power Supply: 24 V DC (+10/–15%), ~200 mA (up to 100 mA w/o backlight); internal 2 A fuse; ride‑through for 5 ms power dips

• Interfaces: RS‑422 (primary), optional RS‑232/485; service port for PLC link

• Memory & LEDs: Up to 500 user screens; backlight replacement; alarm history retained by FX2NC‑32BL battery

• Protection: Front panel IP65/67F; certified to IEC 61131‑2 for shock/vibration and ESD (6 kV)

• Temperature Range: 0 °C to +50 °C; 10–90 % RH non-condensing; ≤2,000 m altitude

• Physical Size: Panel cut‑out 156×123.5 mm; bezel ~132.2×88.4 mm; depth ~50 mm; ~0.55–0.79 kg
