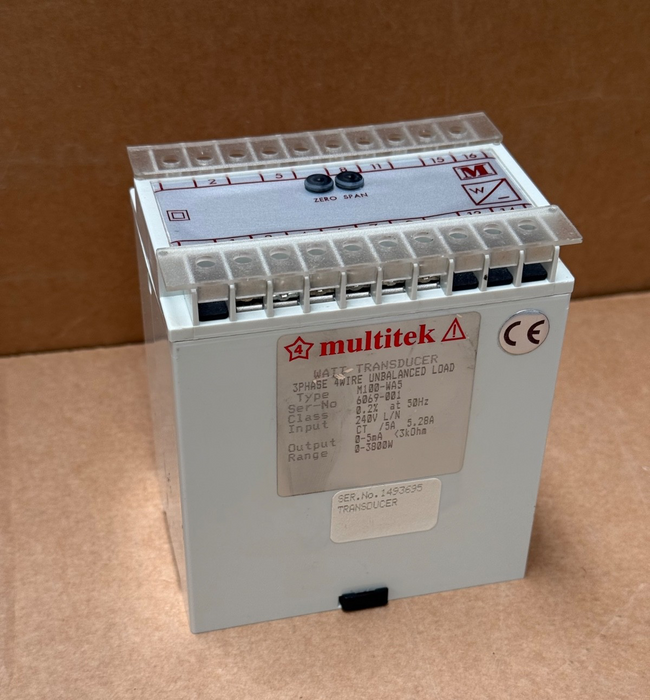

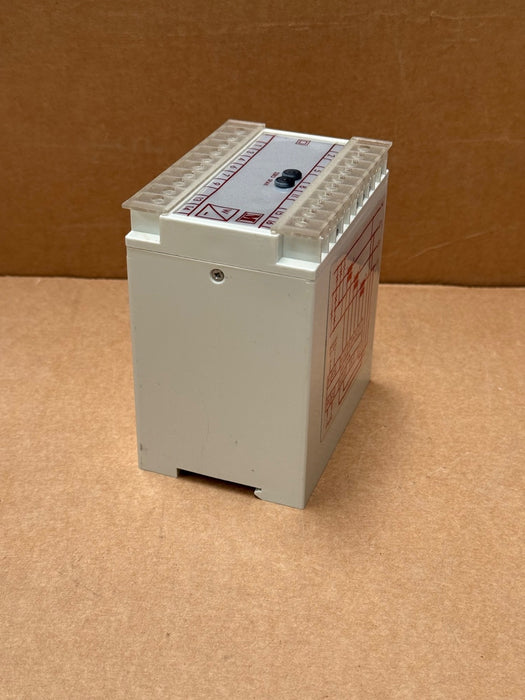

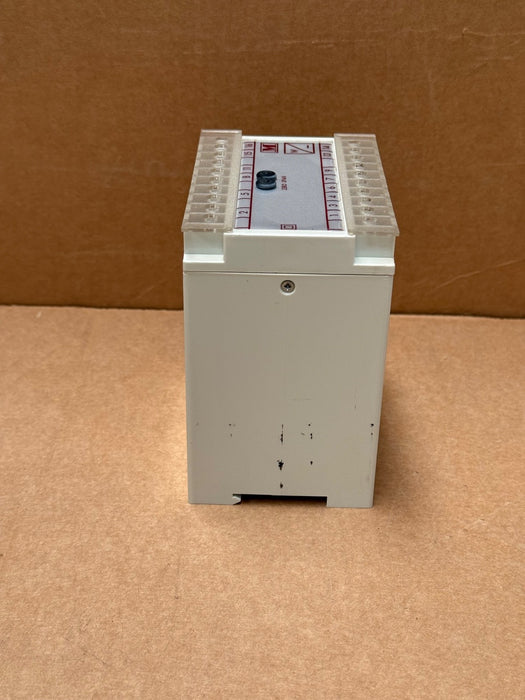

Multitek – M100‑WA5 – 3‑Phase 4‑Wire Unbalanced Watt Transducer, 0–20mA / 0–10V

The Multitek M100‑WA5 (also branded Hobut) is a DIN‑rail mounted active power transducer designed for measuring power in three-phase, four-wire, unbalanced systems. It accepts input from a current transformer (up to 5 A) and line voltage up to 600 V AC, then outputs a DC signal proportional to instantaneous power—ideal for monitoring energy usage, integration with PLCs or data systems, and power station or generator set monitoring.

Key Features:

• Model: M100‑WA5 (Multitek/Hobut)

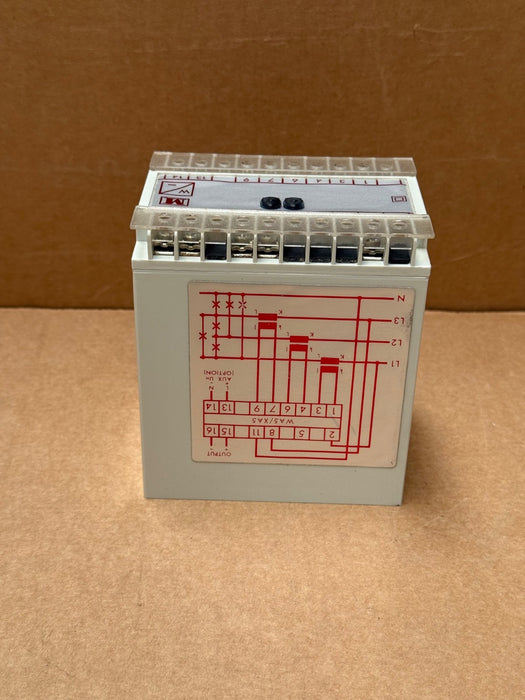

• System Type: 3‑phase, 4‑wire (unbalanced load)

• Current Input: 1 A CT or 0.5–10 A direct

• Voltage Input: Up to 600 V nominal; works via voltage or CT input

• Output Options: 0–1/5/10/20 mA, 4–20 mA, or 0–5/10 V (specify at ordering)

• Auxiliary Supply: Optional 115/230/400 V AC or 24/48/110 V DC (<3 VA)

• Isolation: 4 kV between input and output

• Case Size: ~100 × 112 mm; weight ~0.8 kg

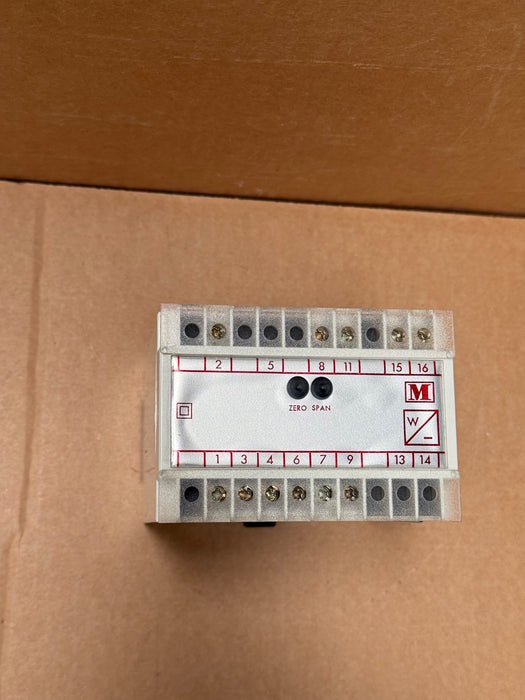

• Adjustments: Front panel zero/span trimmer ±2%/±10%

• Applications: Metering in switchboards, power stations, gensets, automation systems aggregated to PLC/SCADA via DC signal output
