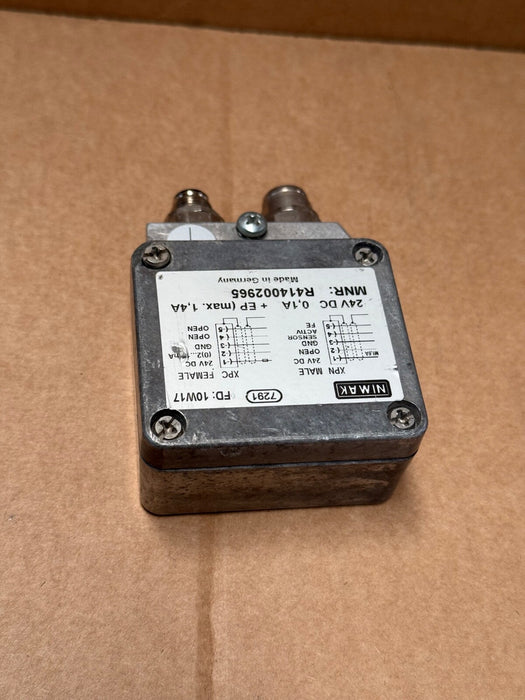

NIMAK – R414002965 – ED05 Series Proportional Pressure Control Valve

The Nimak R414002965 (ED05 series) is a direct-acting proportional pressure control valve designed for precise pneumatic regulation in industrial systems. With an analog control input and robust IP65 protection, it offers high-flow performance and flexible installation, perfect for automation, material-handling, and process control applications.

Key Features & Specifications:

• Model / MPN: R414002965 (ED05 Series)

• Type: Direct-acting proportional pressure control valve

• Max Pressure: 11 bar (160 psi)

• Nominal Flow: 1 000 L/min

• Control Inputs: 0–10 V or 4–20 mA analog signal

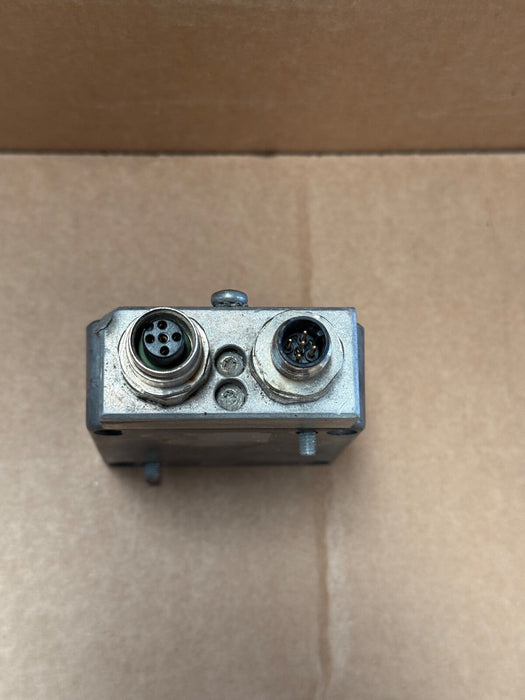

• Electrical Connection: 5‑pin M12 female connector, IP65

• Mounting Orientation: Permits α = 0–90° and β = 0–90° installation angles

• Fluid Media: Compressed air, ambient & medium temps 0 °C – 70 °C

• Protection Class: IP65 (dust-tight & water jets)
