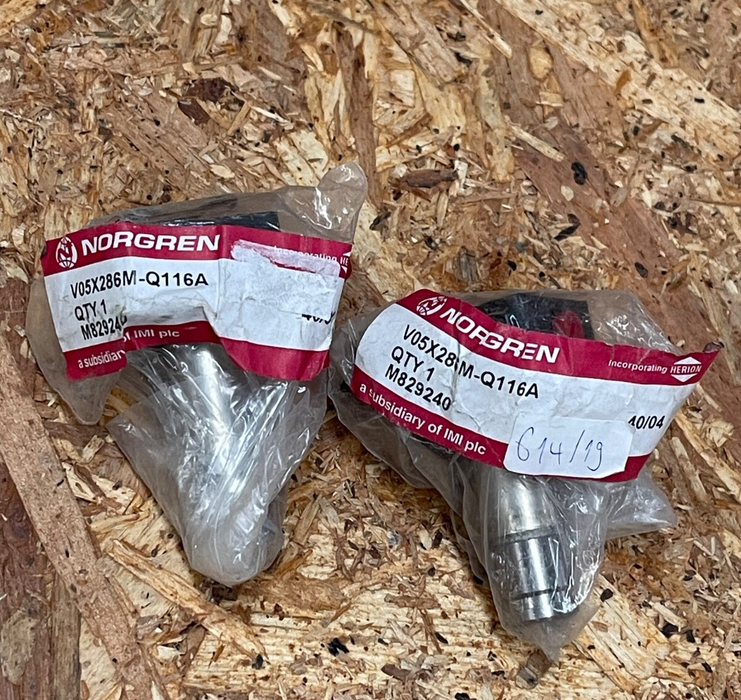

Norgren - V05X286M-Q116A - 2/2 NC Solenoid Valve, Interface Mount

The Norgren V05X286M-Q116A is a compact, interface-mounted 2/2-way solenoid valve from the EXCEL 5 series, designed for reliable performance in industrial pneumatic systems. Featuring a 2.5 mm orifice and a normally closed (NC) configuration, this valve operates on 48 V AC and is directly actuated with a spring return mechanism. Its removable coil and standard exhaust diffuser facilitate easy maintenance and installation. The valve’s robust construction and IP65 protection rating make it suitable for various industrial applications.

Key Features:

• Model: V05X286M-Q116A

• Brand: Norgren

• Series: EXCEL 5

• Function: 2/2-way, normally closed (NC)

• Mounting Type: Interface (flange) mount

• Orifice Size: 2.5 mm

• Operating Voltage: 48 V AC

• Power Consumption: 27 VA (inrush), 20 VA (holding)

• Actuation: Direct solenoid with spring return

• Operating Pressure Range: 0 to 16 bar

• Flow Rate: Up to 190 l/min

• Manual Override: Screwdriver-operated, memory type

• Coil Type: Removable, 30 mm, DIN 43650 Form A connector

• Protection Class: IP65 (with connector fitted)

• Operating Temperature Range: –20 °C to +50 °C

• Materials:

  • Body: Zinc alloy

  • Seals: NBR

  • Coil Housing: Glass-reinforced PA

• Applications: Ideal for use in industrial automation, packaging machinery, and other pneumatic systems requiring reliable solenoid valve performance.
