Novaris – SL2‑7V5 – High‑Energy Signal‑Line Surge Protector, 7 VDC Clamp

The Novaris SL2‑7V5 is a DIN‑rail mounted, high‑energy surge protection module designed for safeguarding balanced pair signalling lines in industrial control and SCADA systems. Rated for line currents up to 500 mA and lightning impulse currents up to 20 kA, the device features a modular, pluggable top unit combined with a secure base providing earth connection. Ideal for protecting RS‑485/232, fieldbus, and sensor communications, it includes visual indication and optional alarm contacts for status monitoring.

🔌 Key Features

• Model / P/N: SL2‑7V5 (part of Novaris SL2 series)

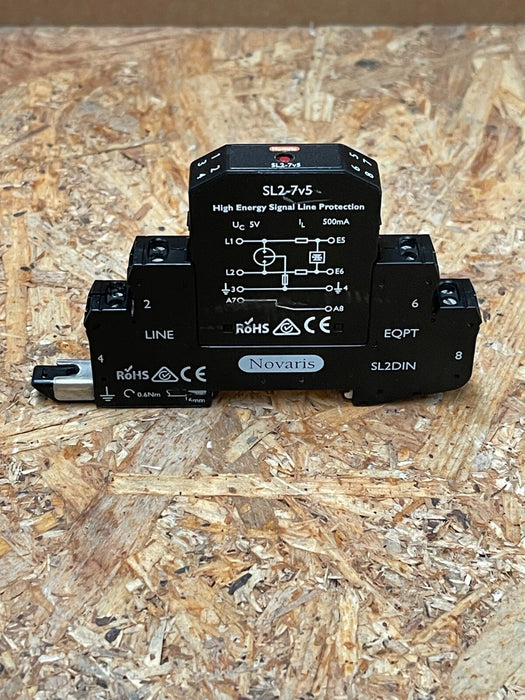

• Clamping Voltage: ~7 V DC maximum, with multi-stage protection via gas discharge tube followed by diode clamp

• Line Current Capacity: Up to 500 mA continuous

• Surge Ratings:

  • Lightning impulse (10/350 µs): 2.5 kA per line, 5 kA common mode

  • 8/20 µs discharge: 10 kA per line, 20 kA common mode

• Insertion Loss: Low attenuation up to 60 MHz – suitable for data/comm lines

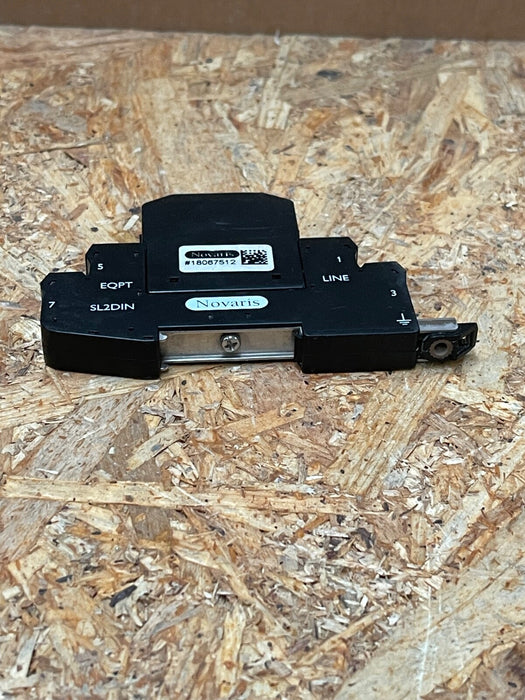

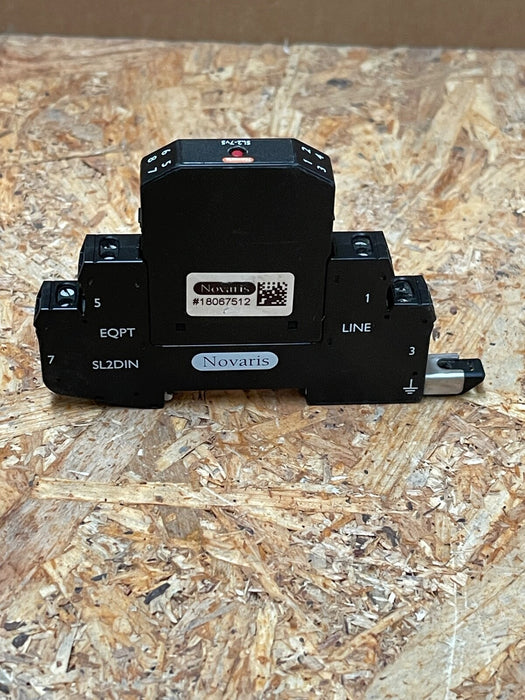

• Modular Design: Plug-in top module with screw-lock earth base – easy replacement

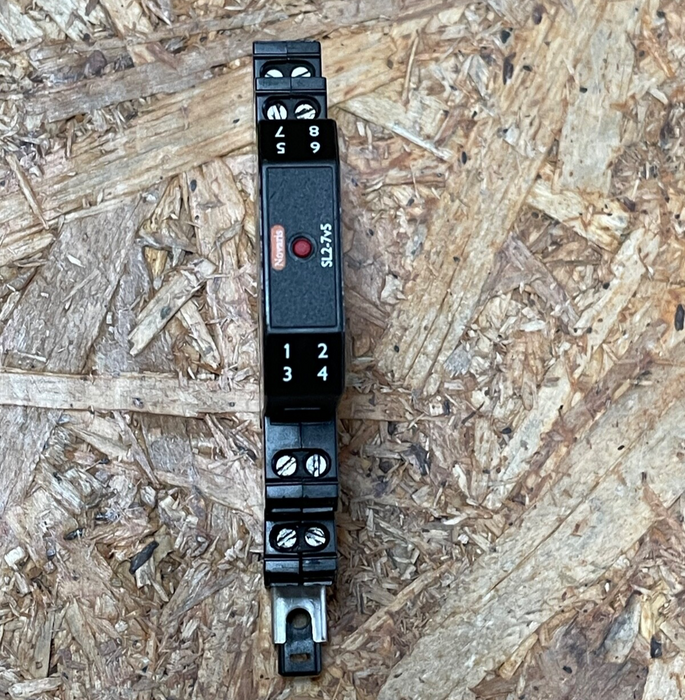

• Status Indication: Visual LED and integral alarm contacts support monitoring

• Mounting & Earth: DIN‑rail base with earth screw ensures reliable grounding

• Operating Temperature: –40 °C to +70 °C
