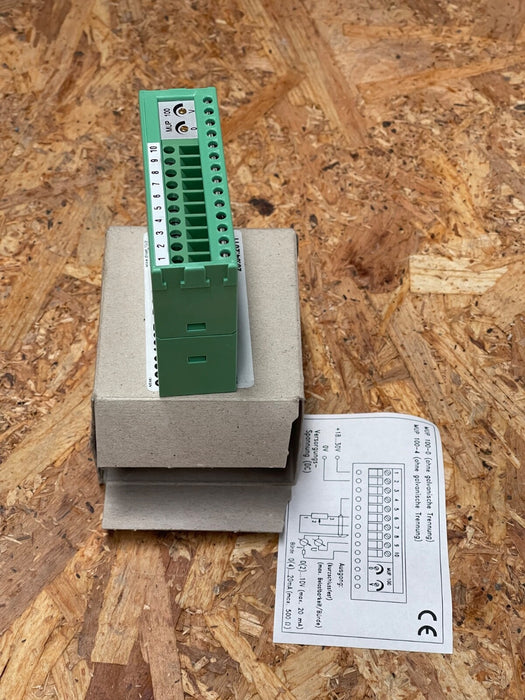

The Novotechnik MUP100-4 (Part No. 054003) is a signal conditioner designed for precise position measurement applications. It converts the signal from potentiometric position sensors into a standardized 4–20 mA current output, ensuring reliable and interference-free signal transmission over long distances. This unit is ideal for industrial environments where accurate position feedback is critical.

Key Features:

Model: MUP100-4
Part Number: 054003
Brand: Novotechnik
Function: Signal conditioner for potentiometric position sensors
Output Signal: 4–20 mA (burden impedance max. 500 Ω)
Operating Voltage: 18–30 V DC
Input Resistance: >10 MΩ
Internal Reference Voltage: 10 V DC, highly stable and short-circuit proof
Adjustment Range:
- Zero Point: -30% to +20%
- Gain: 0.65 to 2
Linearity: Typical 0.01%
Temperature Coefficient: 20 ppm/K (typical)
Operating Temperature Range: -25°C to +70°C
Mounting: DIN EN 50022 rail (35 mm)
Housing Width: 22.5 mm
Protection Class: IP50 (housing), IP00 (terminals)
Weight: Approximately 110 g
Applications: Suitable for converting potentiometric sensor signals into standardized current outputs in industrial automation systems, ensuring accurate position feedback and control.

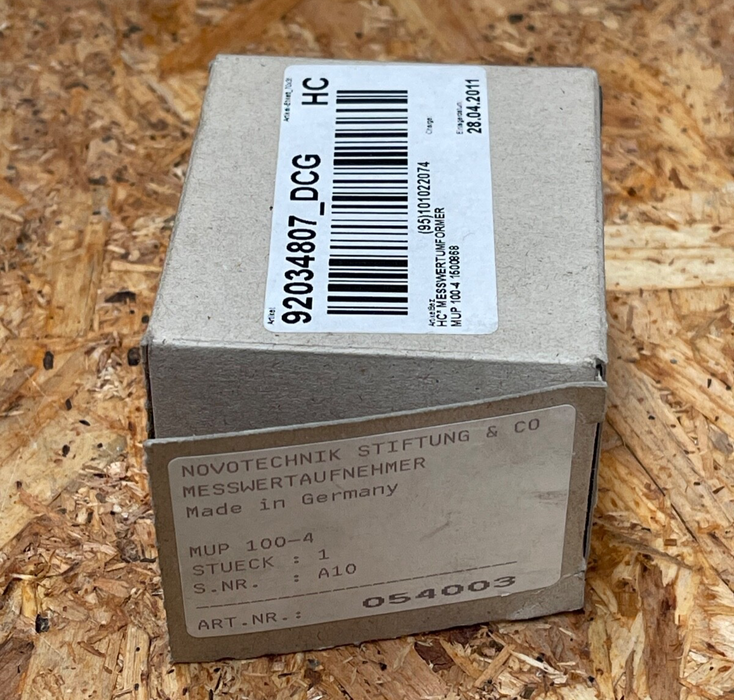

Novotechnik - 054003 (MUP100-4) - Signal Conditioner, 4–20 mA Output
