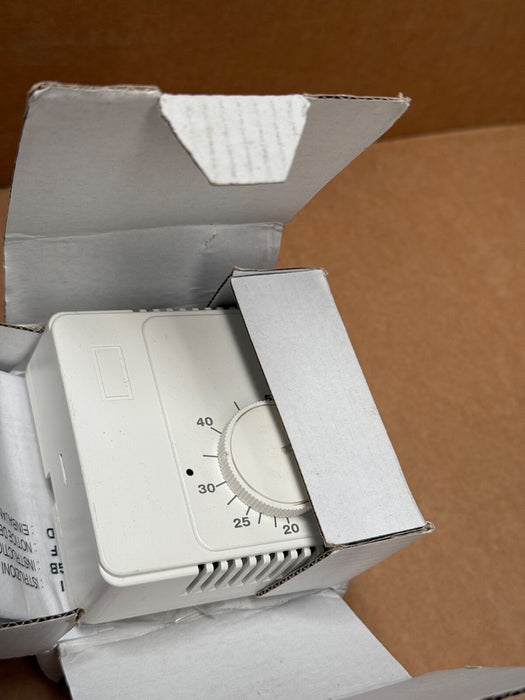

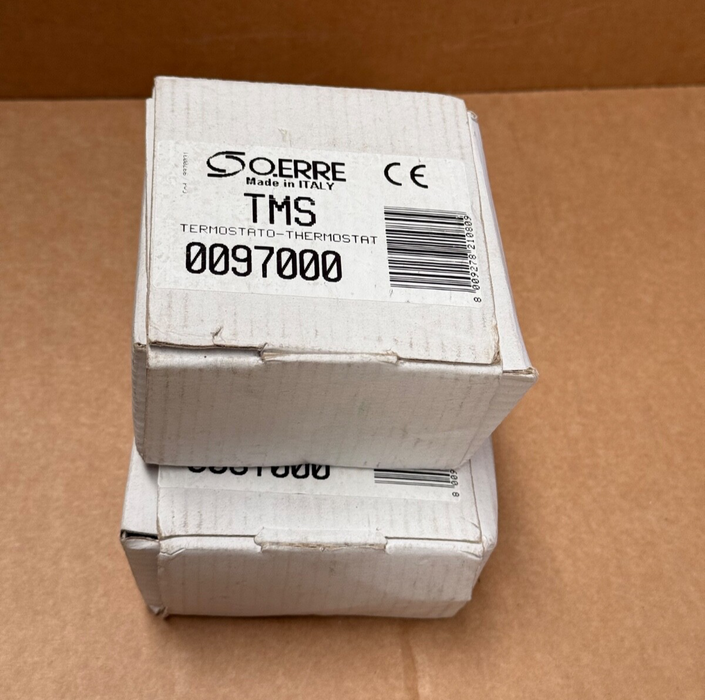

O.ERRE – TMS 0097000 – DIN‑Rail Temperature Thermostat, 0 °C – 60 °C

The O.ERRE TMS 0097000 is a compact bi-metallic DIN-rail thermostat designed for controlling heating and cooling elements within industrial control cabinets. Clipping easily onto a 35 mm DIN rail, it features a precise set point range of 20 °C to 60 °C with tight 0.5 K hysteresis, ideal for maintaining safe operating temperatures in enclosures.

Key Features & Specifications:

• Model / Code: TMS 0097000

• Temperature Range: Adjustable from 20 °C to 60 °C

• Hysteresis: Approx. 0.5 K

• Contact Rating: 250 VAC, 10 A (resistive) / 2 A (inductive)

• Power Rating: 30 W (DC)

• Mounting Style: Snap-on 35 mm DIN rail; IP30 housing

• Construction: Rugged plastic housing; bi-metallic sensor

• Durability: Rated for over 100,000 switching cycles

• Operating Range: –45 °C to +80 °C storage; typical working –40 °C to +70 °C

• Dimensions & Weight: 78 × 78 × 30 mm; approx. 90 g
