ORAF – CCU 2100A3A1A – 3‑Output Multifunction Counter / Tachometer Module, 220 V

The ORAF Elektronik CCU 2100A3A1A is a multifunctional counter/tachometer module designed for industrial automation applications requiring counting, speed monitoring, and preset control. This model operates on a 220 V AC supply and includes 3 programmable outputs. It features a panel-mountable design with tactile buttons for mode selection, an LED display, and terminal block connections for fast integration into control panels.

Key Features:

• Model: CCU 2100A3A1A

• Power Supply: 220 V AC

• Logic Power: 24 V DC internal output

• Functions:

 – C1 = Counter 1

 – C2 = Tachometer

 – C3 = Counter 2

 – P = Presets (P1–P5 programmable values)

• Outputs: 3 digital outputs (individually configurable)

• Interface:

 – Front panel with LED status and 6 control keys

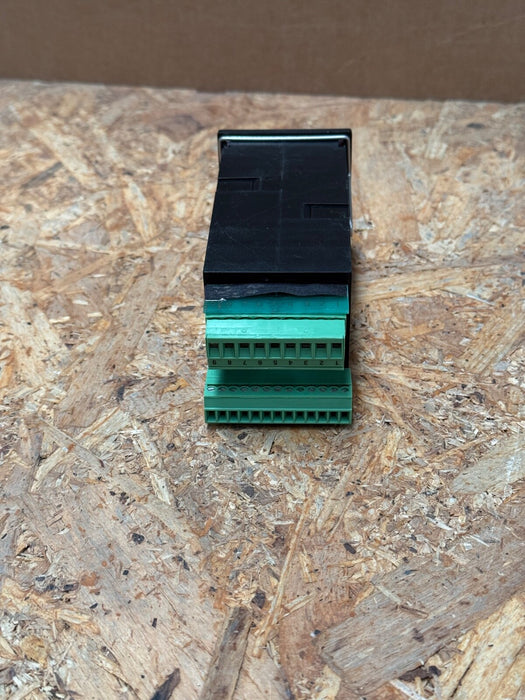

 – Terminal blocks for input/output wiring

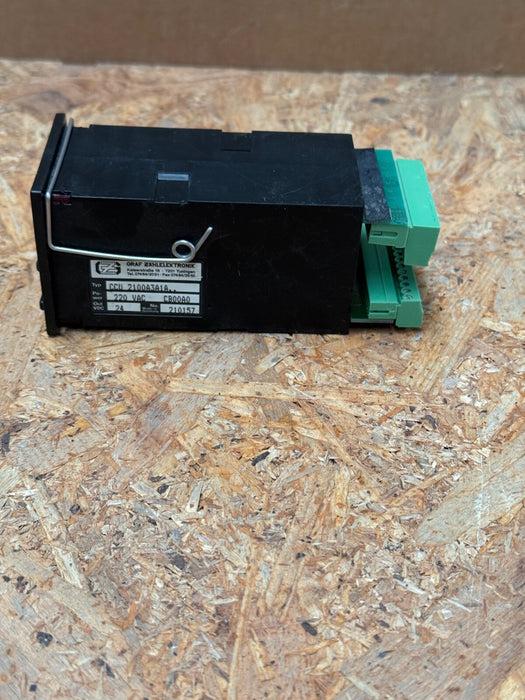

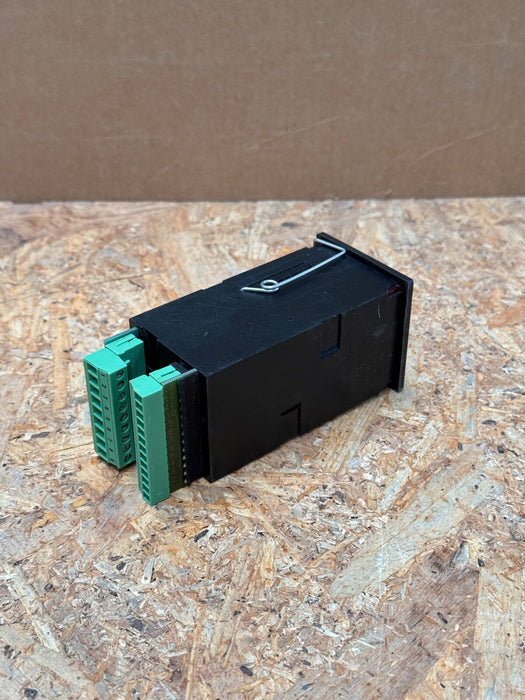

• Mounting: Front-panel installation with integrated spring clip

• Use Cases: Suitable for machine control, batch counting, rotational speed display, or length measurement
