ORAF CCU 2100B3A1C – 24 V DC Multifunction Electronic Counter Tachometer Module

The ORAF Elektronik CCU 2100B3A1C is a multifunctional electronic counter and tachometer unit designed for panel mounting in industrial automation environments. Powered by 24 V DC, it features 3 outputs and versatile operating modes for counting, preset control, and speed measurement. The front panel includes dedicated function keys and a clear LED display, suitable for applications such as machine cycle counting, RPM feedback, or batching control.

Key Features:

• Model: CCU 2100B3A1C

• Power Supply: 24 V DC

• Inputs: Multiple digital inputs (C1, C2, C3) for counting and tachometry

• Functions:

 – C1 = Counter 1

 – C2 = Tachometer

 – C3 = Counter 2

 – P = Preset modes (P1–P5)

• Outputs: 3 programmable output channels

• Interface:

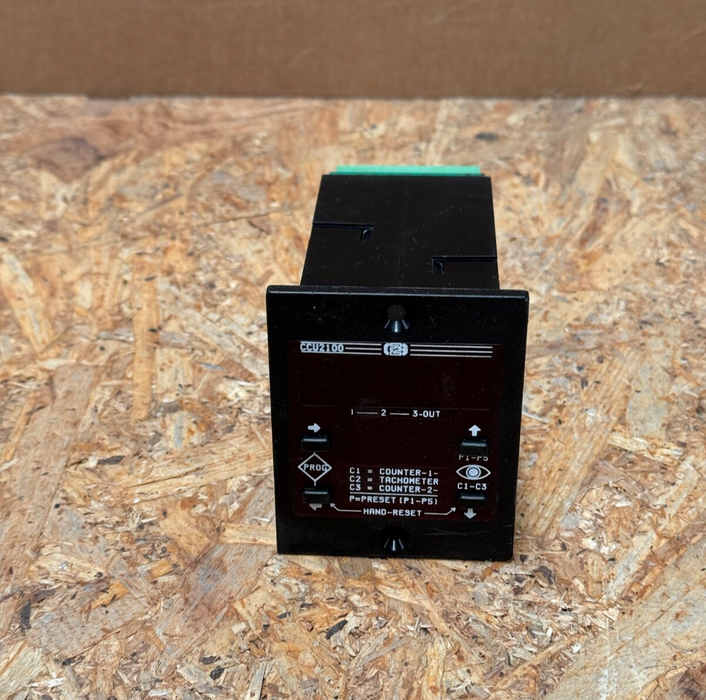

 – Front panel keypad for manual control and programming

 – LED status display

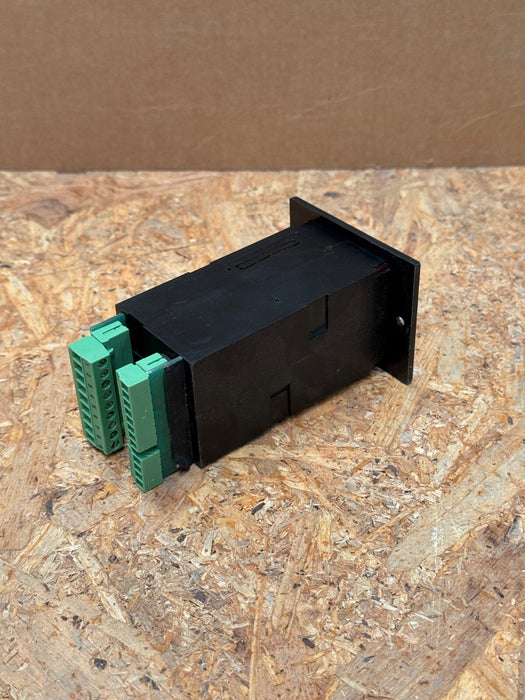

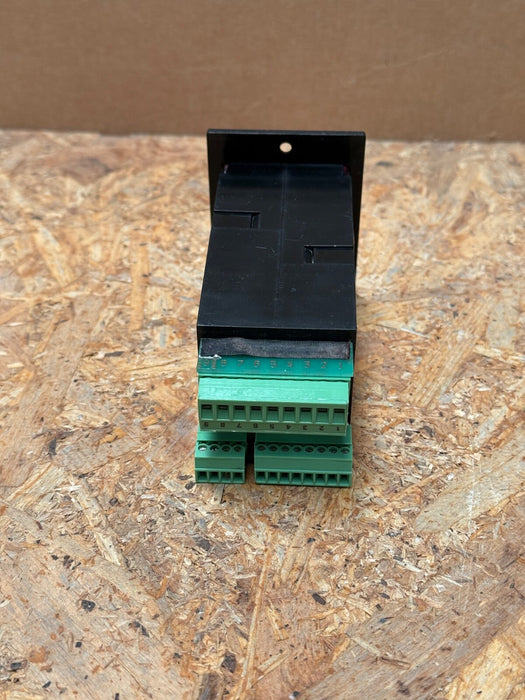

 – Rear terminal blocks for signal and power wiring

• Mounting: Panel mount with snap-in front bezel
