Orbis Italia – SCL202A1/A – Digital Panel Timer, 2‑Relay, 12–24 VAC/DC

The Orbis Italia SCL202A1/A is a rugged 2‑module digital panel timer offering dual relay outputs, a 3‑digit display, and a single PTC sensor input. Designed for demanding environments, it handles wide temperature extremes, supports EEPROM memory, and is suitable for industrial heating, cooling, or process control applications.

Key Features:

• Model: SCL202A1/A (Orbis Italia) 

• Brand: Orbis Italia S.p.A. 

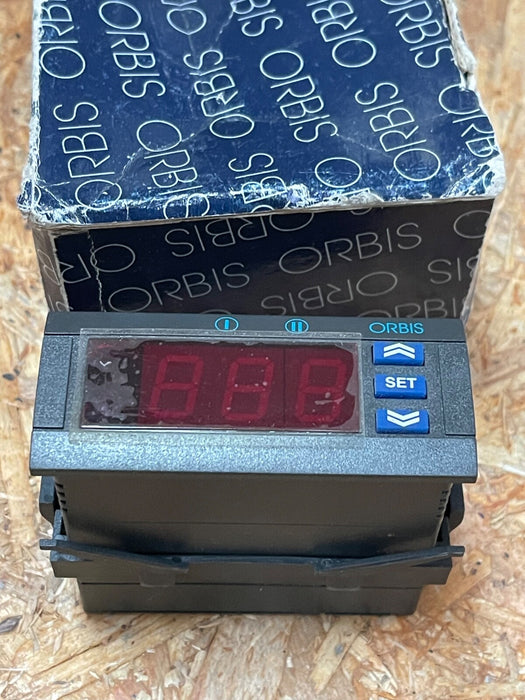

• Display: 3-digit panel mount (32 × 74 mm), clear numeric readout 

• Power Input: 12–24 VAC/DC ±10% 

• Operating Temp: −50 °C to +150 °C, ideal for high-heat environments 

• Sensor Input: 1 PTC input (990 Ω @ 25 °C) 

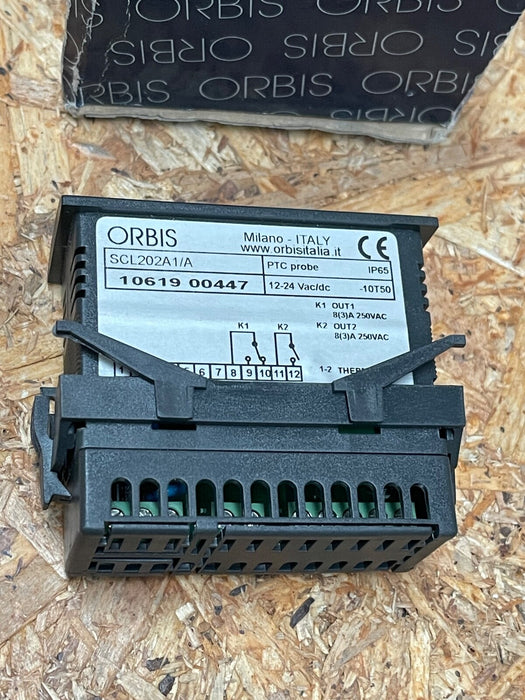

• Relay Outputs: 2 SPDT relays rated 8 A resistive at 250 VAC 

• Consumption: Approximately 3 VA typical 

• Memory: EEPROM for program retention during power loss 

• Protection: IP65 front panel for reliable operation in harsh environments
