The Orbis OB174012 (Data Log) is a compact DIN-rail digital timer designed for automated control of lighting, heating, pumps, and more. With up to 40 programmable events and easy configuration via front keypad or optional Bluetooth dongle, it offers reliable weekly scheduling and battery-backed memory for power loss situations.

Key Features & Specifications

Model / P/N: OB174012 (Orbis Data Log)
Programming: Daily and weekly schedules with up to 40 ON/OFF events
Contact Rating: 1 changeover/SPDT contact, 16 A AC1 @ 250 VAC
Supply Voltage: 230 VAC ±10%, 50/60 Hz
Modules & Mounting: 2 DIN-module width (35 mm); snap-on 35 mm DIN rail
Backup: Internal battery retains time and programs for ~10 years
Display & Control: Backlit LCD; manual override buttons; contrast adjustment; multi-language menus
Extra Functions: Automatic daylight saving adjustment, holiday schedule support, password lock, event counters
Connection Options: Optional Bluetooth dongle (OB709971) for phone/tablet programming
Operating Specs: Temp –10 °C to +45 °C; IP20 rating; conductor capacity up to 4 mm²

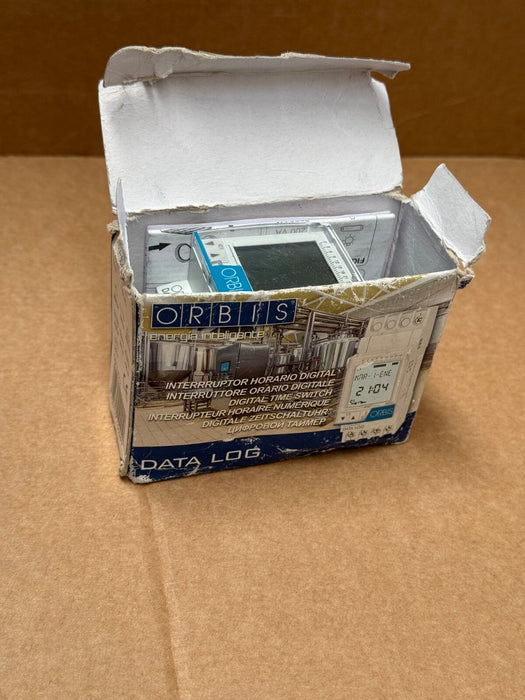

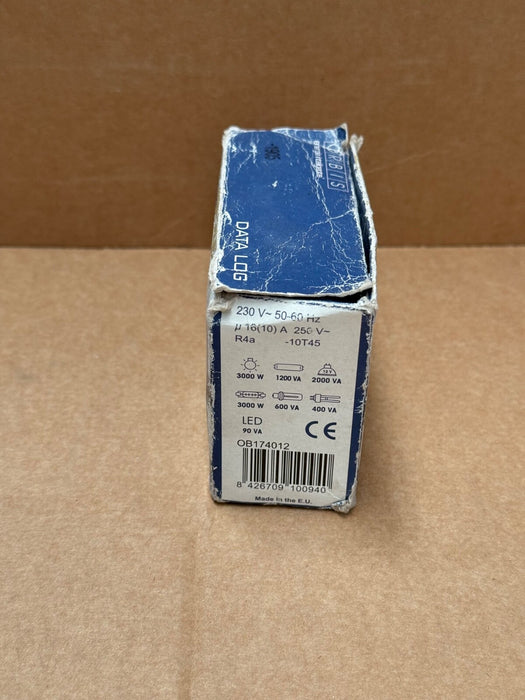

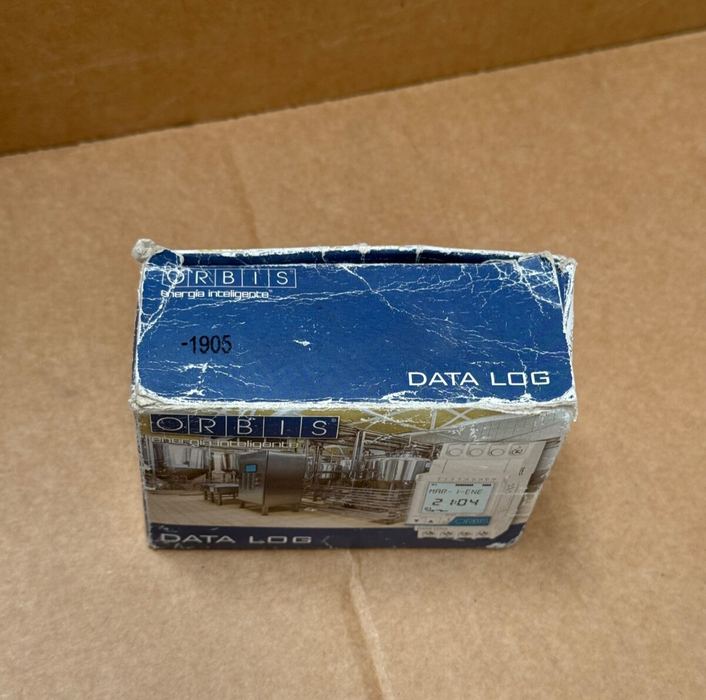

Orbis – OB174012 Data Log – 2-DIN Daily/Weekly Digital Time Switch, 16 A, 230VAC

Orbis – OB174012 Data Log – 2-DIN Daily/Weekly Digital Time Switch, 16 A, 230VAC
