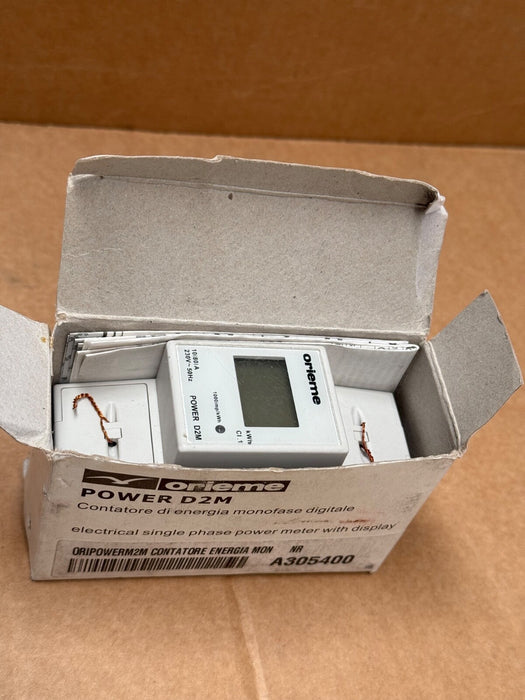

The Orieme POWER D2M is a compact, DIN-rail-mountable digital power meter designed for single-phase power monitoring. With its two-module width footprint and clear LCD display, it measures true‑RMS voltage, current, active power, frequency, and energy consumption—making it ideal for residential or commercial panel installations.

Key Features & Specifications

Model / MPN: POWER D2M (2‑module, single‑phase digital)
Current Range: 10 … 80 A via direct connection
Display: Two-line backlit LCD; shows cumulative energy and real-time parameters
Parameters Monitored:
- Voltage (V)
- Current (A)
- Active Power (kW)
- Energy Consumption (kWh), resettable partial counter
- Frequency (Hz)
- Power Factor (PF)
Dimensions: 2‑DIN modules wide, suitable for 35 mm DIN rail
Mounting: Snap-on DIN-rail installation
Operating Voltage: Standard single-phase mains (230 VAC)
Applications: Ideal for energy monitoring in control panels, branch circuits, or end-use equipment
Origin: Made in Italy
