The Parker PD34796 is a 5/2-way oscillating pneumatic valve designed to generate automatic reciprocating movements in pneumatic systems. Ideal for applications such as shaking, hammering, plunging, and feeding, this valve alternately supplies compressed air to output ports, enabling continuous back-and-forth motion without external control signals. Equipped with integrated exhaust air throttles, it allows precise adjustment of stroke frequency and speed.

Key Features:

Model: S9 568/68-1/4-SO
Brand: Parker
Part Number: PD34796
Valve Type: 5/2-way oscillating spool valve
Port Size: G1/4” threaded connections
Mounting: 2 screws M6 (M4)
Installation Position: Any orientation
Operating Pressure Range: 3 to 8 bar
Nominal Pressure: 6 bar
Nominal Flow Rate: 1300 L/min
Actuation: Pneumatic direct
Actuation Pressure Range: 3 to 8 bar
Medium: Filtered and oiled or filtered, unoiled compressed air
Medium Temperature Range: –10 °C to +60 °C
Ambient Temperature Range: –10 °C to +60 °C
Weight: 0.65 kg
Applications: Suitable for industrial processes requiring automatic reciprocating movements, such as shaking, hammering, plunging, feeding, scraping, wiping, winding, tensioning, raking, deflecting, spraying, cleaning, and soaking

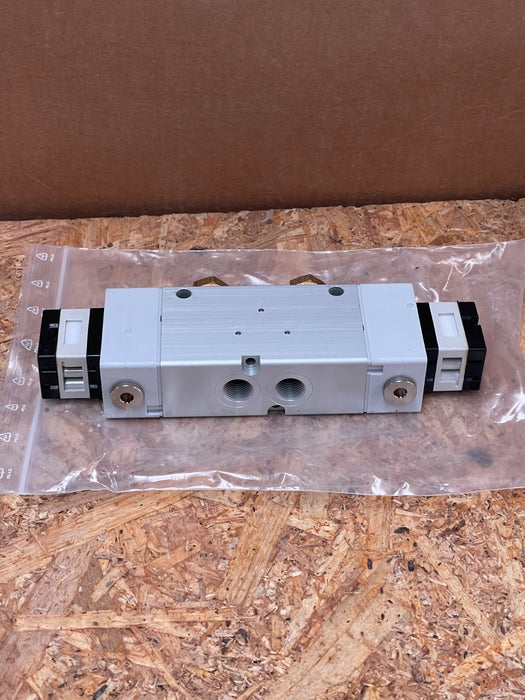

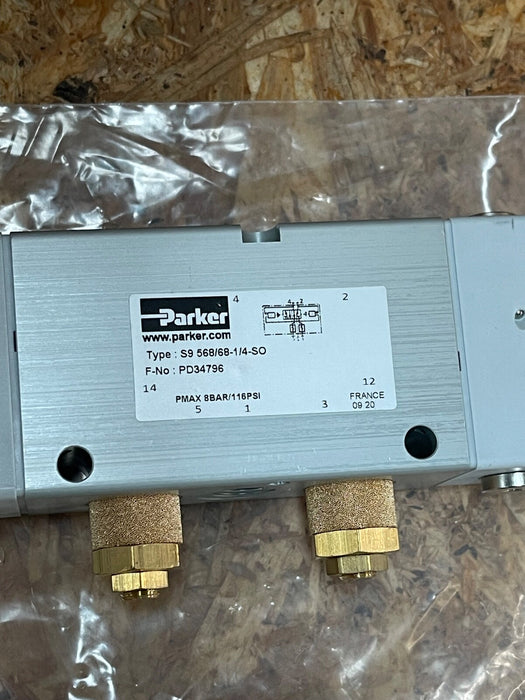

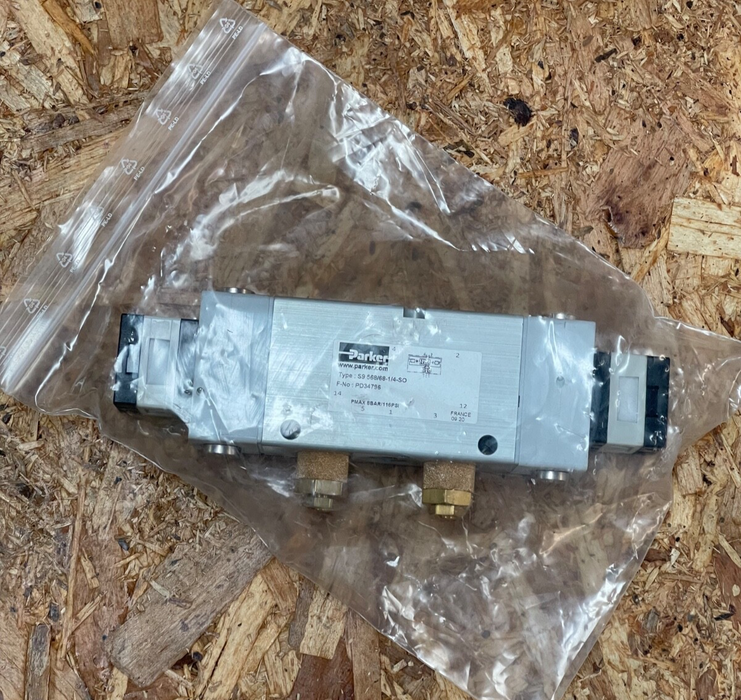

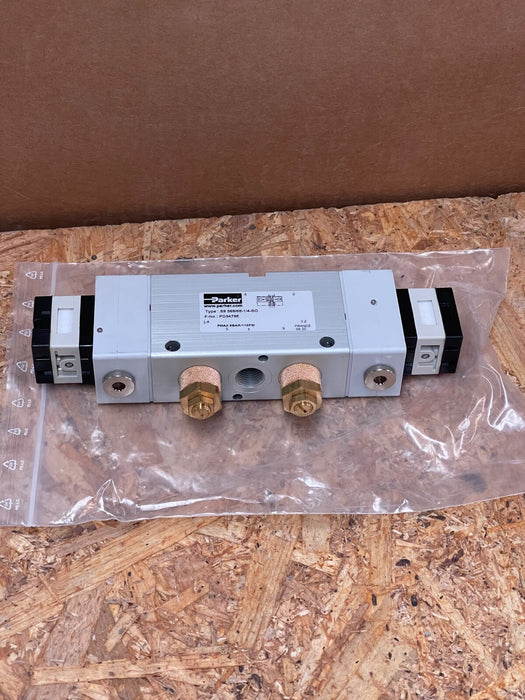

Parker - PD34796 - S9 568/68-1/4-SO 5/2 Oscillating Pneumatic Valve, G1/4” ￼
