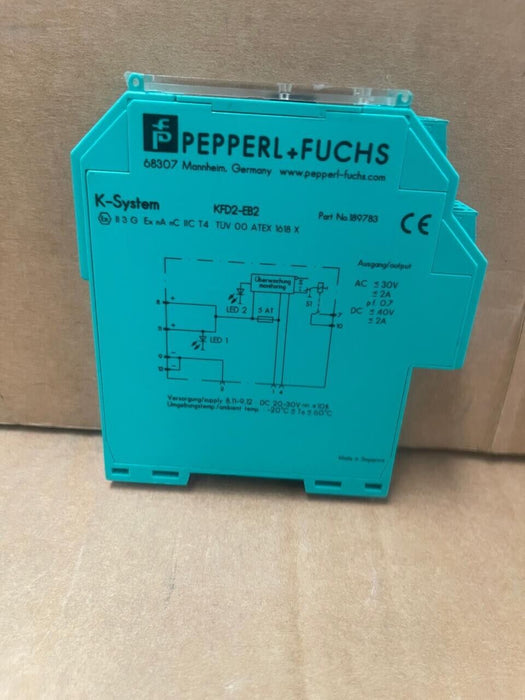

Pepperl+Fuchs - KFD2-EB2 - Power Feed Module 189783

The Pepperl+Fuchs KFD2-EB2 is a Power Feed Module designed to supply the Power Rail with a 24 V DC voltage and a maximum current of 4 A. It features a replaceable fuse, relay contact output (reversible), and LED status indicators for power and fault conditions. In the event of a device or wiring fault on the Power Rail, the module’s collective error messaging relay alerts the controller via a binary I/O point. This relay can be configured as normally-open or normally-closed. The module is compatible with all versions of the Power Rail.

Key Features:

• Power Rail Interface: Supplies 24 V DC to the Power Rail with a maximum current of 4 A.

• Fault Indication: Relay contact output alerts the controller in case of device or wiring faults.

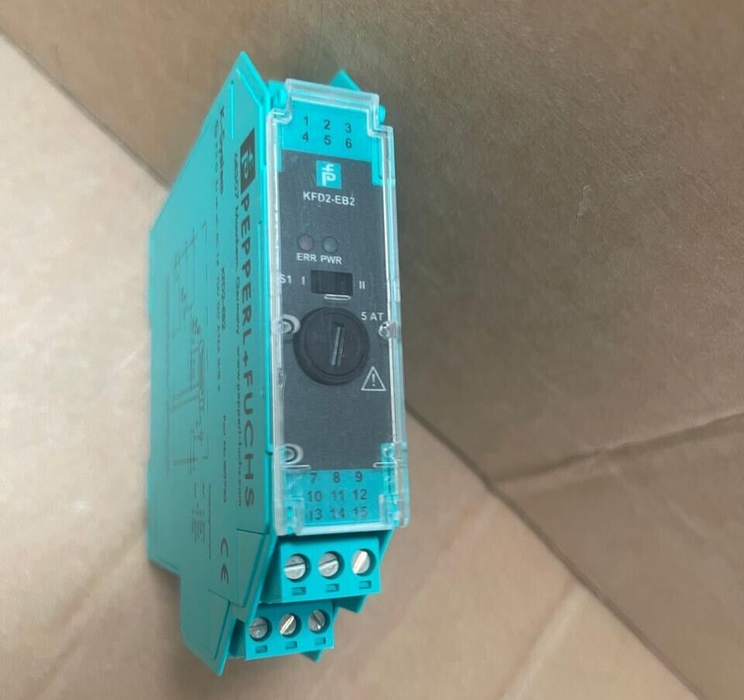

• LED Status Indicators: Green LED indicates power status; red LED indicates fault conditions.

• Replaceable Fuse: 5 A fuse ensures protection and allows for easy maintenance.

• Configurable Relay: Relay can be set as normally-open or normally-closed based on application requirements.

Technical Specifications:

• Supply Voltage: 20 V DC to 30 V DC

• Output Current: Up to 4 A

• Fuse Rating: 5 A / 250 V AC

• Power Dissipation: ≤1 W

• Relay Contact Loading: 30 V AC / 2 A / cos φ ≥ 0.7; 40 V DC / 2 A

• Indicators: Green and red LEDs for power and fault status

• Operating Temperature: -40°C to +70°C

• Dimensions: 20 mm (W) x 119 mm (H) x 115 mm (D)

• Mounting: 35 mm DIN mounting rail (EN 60715:2001)

• Degree of Protection: IP20
