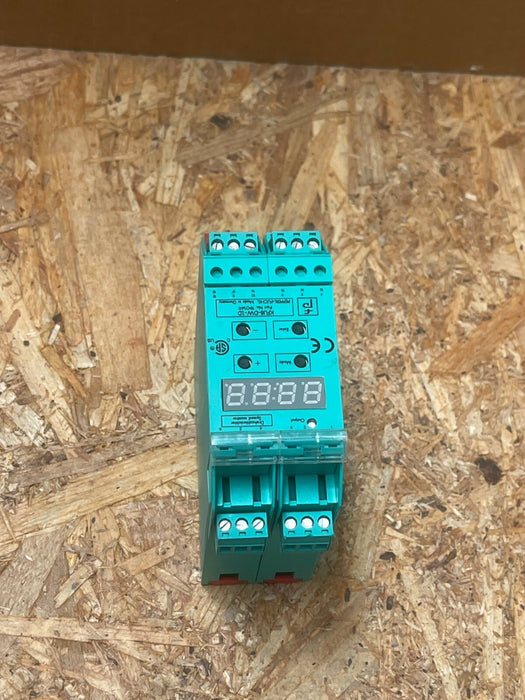

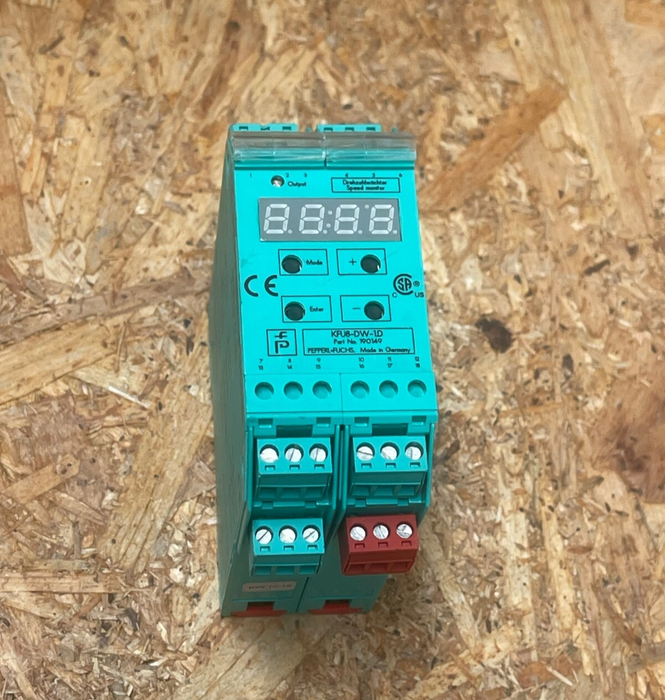

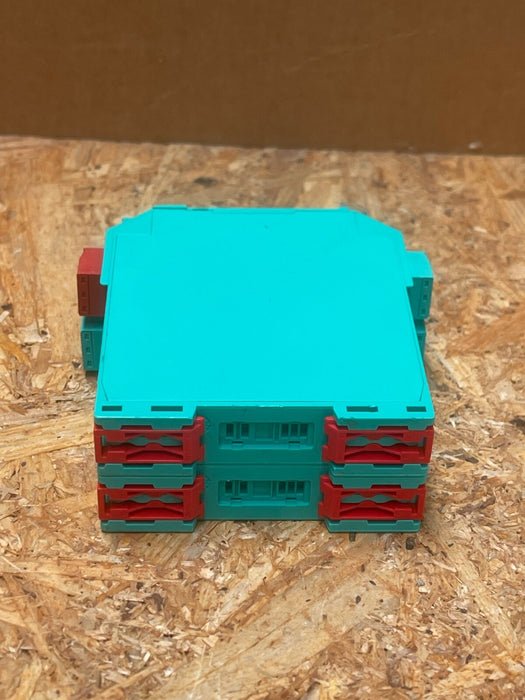

Pepperl & Fuchs – KFU8‑DW‑1.D (190149) – Rotation & Speed Monitor, SIL 2 Signal
The Pepperl & Fuchs KFU8‑DW‑1.D (P/N 190149) is a precision rotation/speed monitor and signal conditioner designed for industrial automation and safety applications. It accepts signals from proximity sensors, encoders, or NAMUR contacts and converts them into configurable relay outputs and analog/digital signals with user-defined thresholds, timers, and fault detection—perfect for overspeed/underspeed monitoring up to 40 kHz.
Key Features & Technical Specs
Feature |
Specification |
|---|---|
Input Range |
0.002 Hz … 40 kHz (cycle/period mode), accepts 2–4 wire sensors, encoders, NAMUR dry contacts |
Display & Interface |
4-digit, 7-segment LED with four front push-buttons for menu parameters |
Alarm Output |
1 pre-set relay (changeover), LED indication, with 10 timer types (e.g. delay on/off, pulse stretching) |
Sensor Power Supply |
19–31 V DC (≤ 30 mA), short‑circuit protected |
Loops & Fault Detection |
Line-fault detection, signal inversion option, period measurement mode |
Power Supply |
24 V DC typical; AC options available, ≤ 100 mA consumption |
Safety & Diagnostics |
SIL 2 rated; reinforced galvanic isolation between circuits; front LED status |
Mounting / Housing |
DIN-rail (35 mm), IP20, ~40 mm wide, operating –25…+60 °C |
