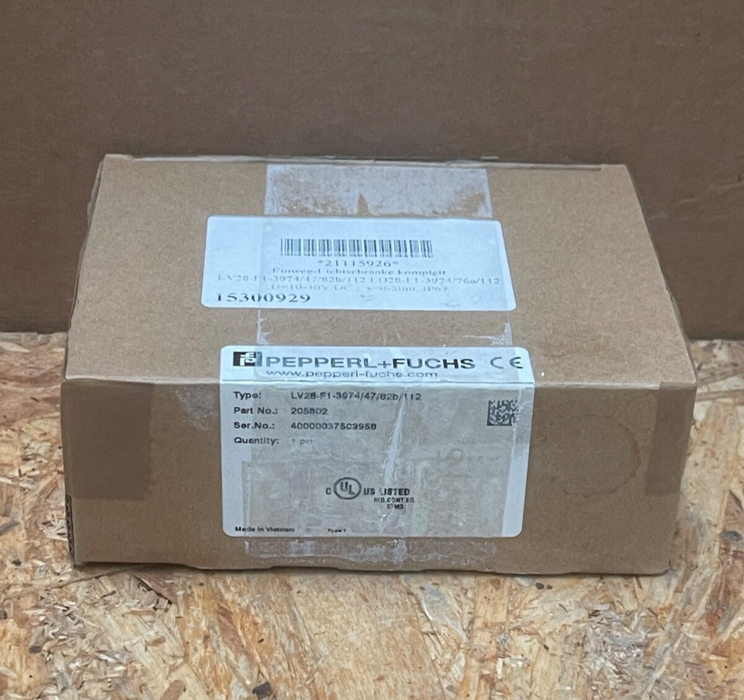

Pepperl + Fuchs – LV28‑F1‑3974/47/82B/112 (205802) – 2‑Wire Through‑Beam

The Pepperl + Fuchs LV28‑F1‑3974/47/82B/112 (EDV 205802) is a robust two-wire, 30 m range through-beam photoelectric sensor with PNP output. Its industrial design ensures reliable detection of objects across varied materials and environments. With IP67 protection, it’s ideal for warehouse conveyors, packaging lines, and harsh industrial automation setups.

Key Specifications & Features:

• Model / EDV: LV28‑F1‑3974/47/82B/112 (Pepperl + Fuchs 205802)

• Sensing Method: Through-beam optical (emitter required separately)

• Range: 0–30 m (0–1181 in)

• Output Type: PNP, configurable for dark-on / light-on modes

• Power Supply: 10–30 VDC

• Operating Specs: Response time ~500 µs; 660 nm red light

• Connection: M12 threaded 4-pin connector

• Ingress Protection: IP67, -40…+60 °C operating

• Certifications: UL listed, CE, RoHS compliant
