Phoenix Contact – MCR‑F/U‑100K/V (P/N 2808255) – 0–100 kHz Frequency Transducer

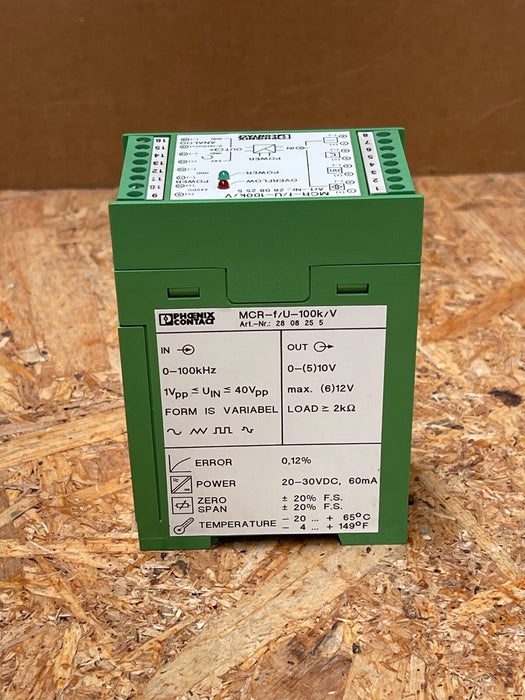

The MCR‑F/U‑100K/V (P/N 2808255) from Phoenix Contact is a DIN‑rail mountable frequency transducer designed to convert input pulses or frequency signals (up to 100 kHz) into a standardized 0–5 V or 0–10 V analog output. Operated on 20–30 V DC power, it’s ideal for industrial automation systems, offering clean signal conversion for PLCs, meters, or control systems.

Key Features:

• Model / Item No.: MCR‑F/U‑100K/V (2808255) – factory‑order only, discontinued from catalogue

• Input Range: 0–100 kHz frequency signals (pulse input)

• Power Supply: 20–30 V DC; typical DIN‑rail module form

• Output Signal: 0–5 V or 0–10 V adjustable analog output proportional to input frequency up to 100 kHz

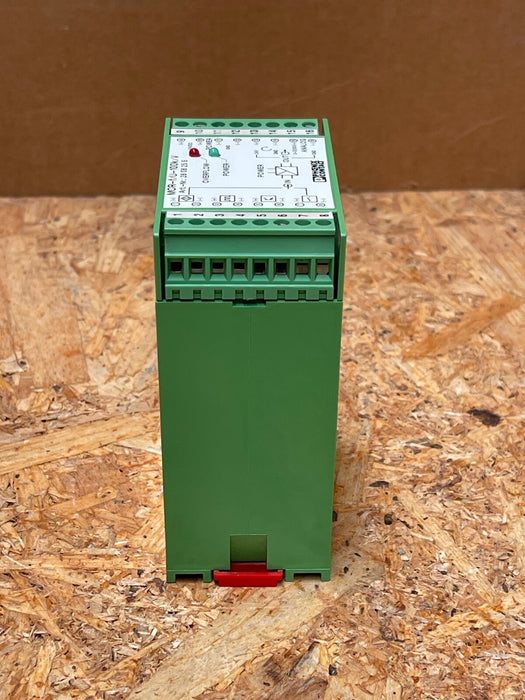

• Mounting: Standard DIN‑rail housing, ~235 g, customs tariff 85389091, made in Germany

• Application Sectors: Power generation, transmission, process industry (marine, offshore, mining, solar, wind), machine building, and factory automation
