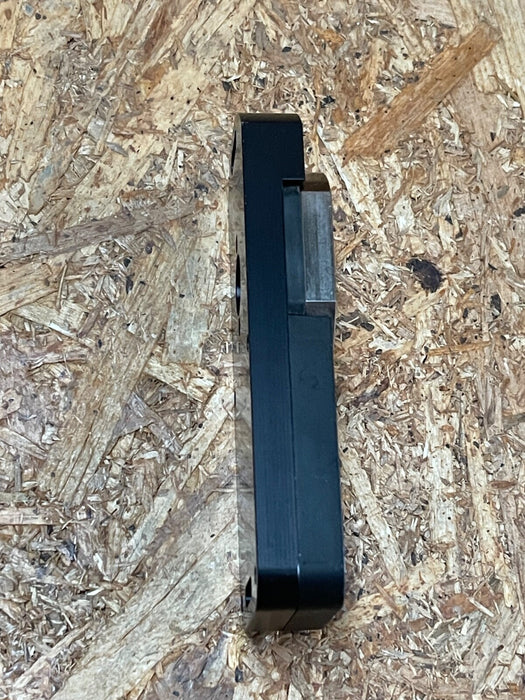

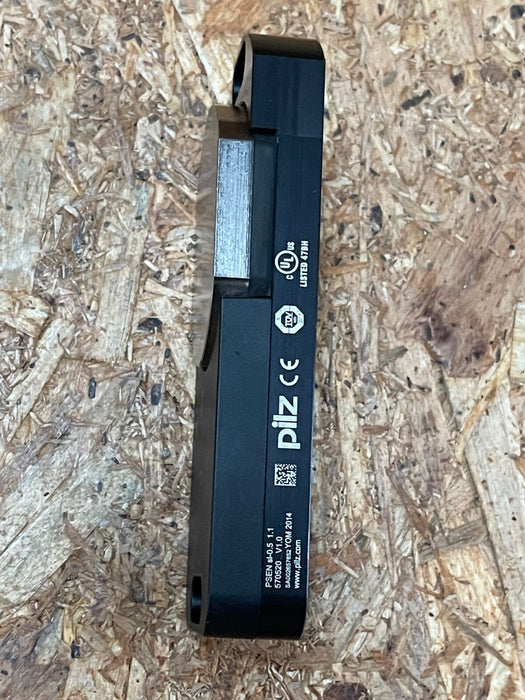

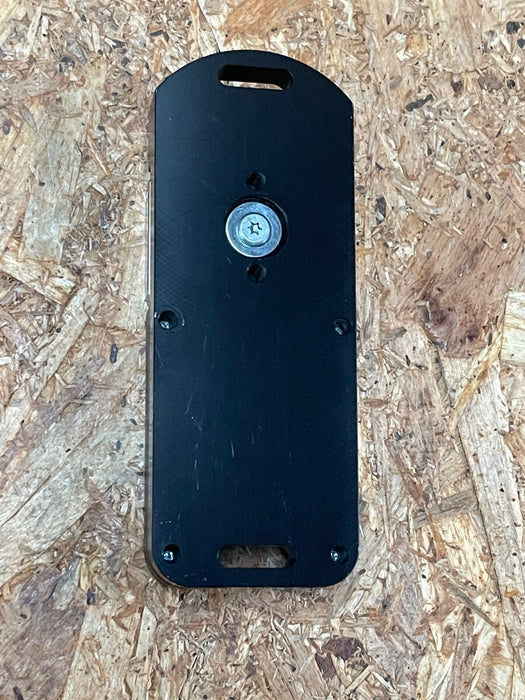

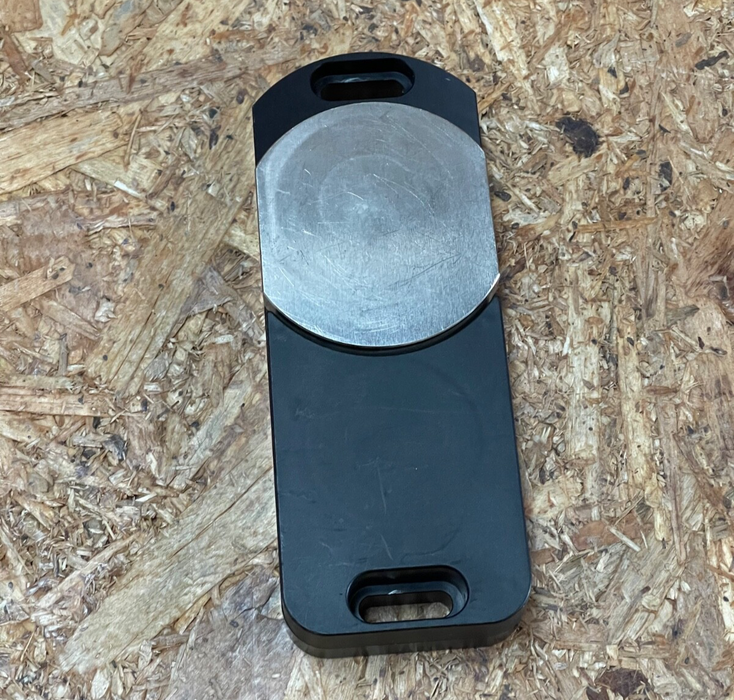

Pilz – 570520 – PSEN sl‑0.5 1.1 Actuator for PSEN sl Safety Locking Device

Main Features

• Manufacturer: Pilz – PSENslock / PSEN sl series safety locking devices

• Model/MPN: 570520 – PSEN sl-0.5 1.1 actuator (standard configuration)

• Function: Mechanical actuator for magnetic–coded guard locking switches; mates with PSEN sl-0.5p safety switch

• Mechanical Specification:

  • Holding force: 500 N

  • Coded transponder principle ensures tamper-resistance and reliable safe guarding

• Construction & Dimensions:

  • Hard-anodised aluminium body (anticorodal), compact design

  • Approx. W 52 mm × H 138 mm × D 23 mm; weight ≈ 375 g

  • Protection rating: IP67 for harsh industrial environments

• Certifications: SIL 3 / PL e / Cat 4; CE / cULus / TÜV listed
