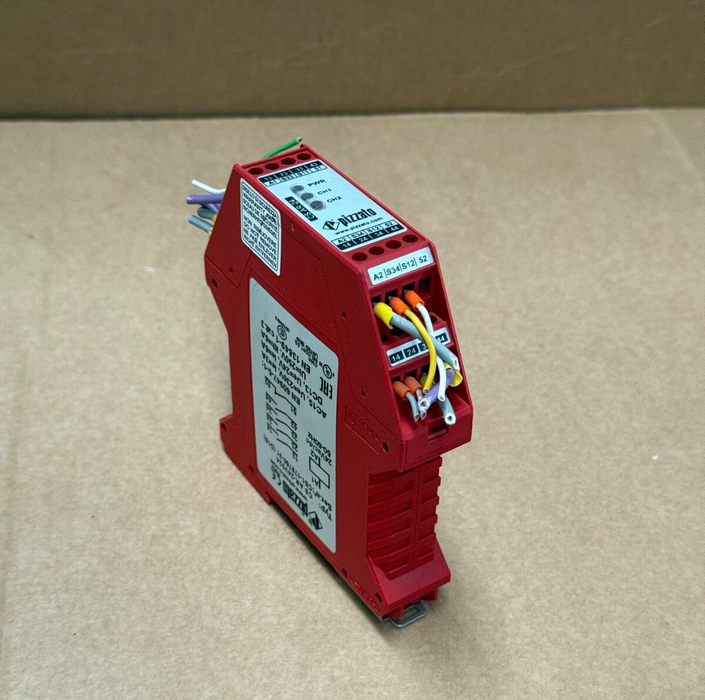

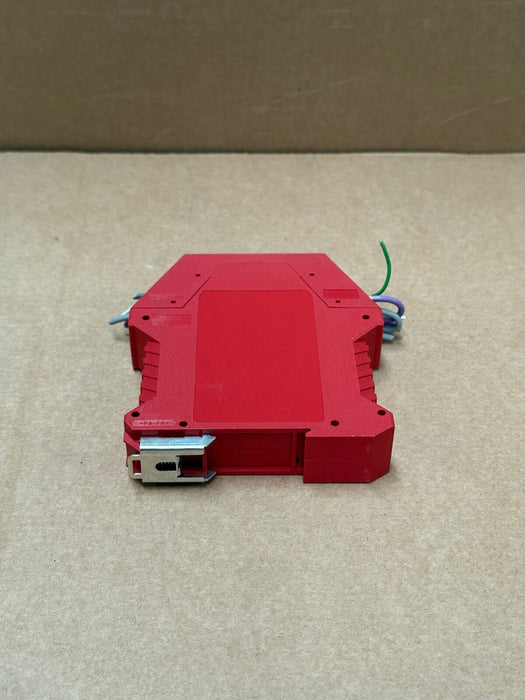

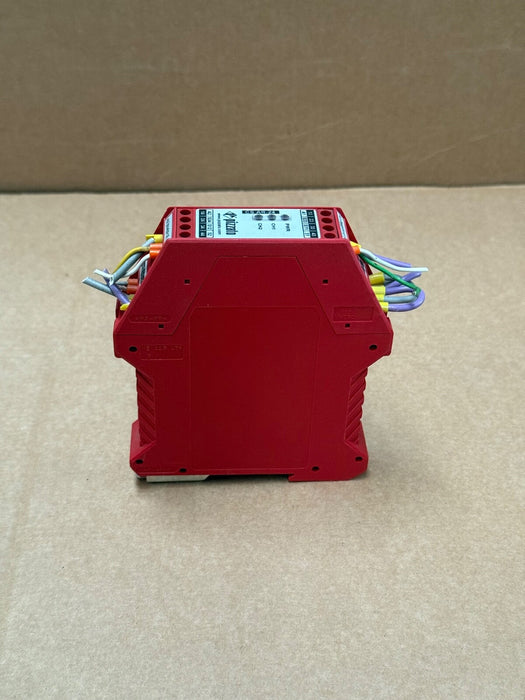

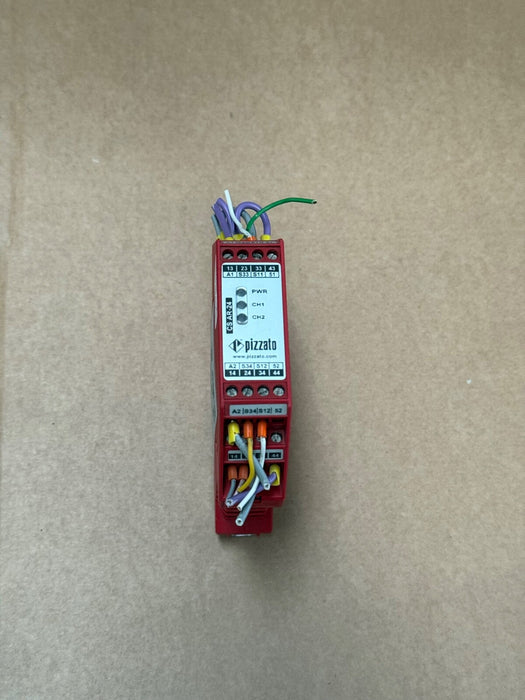

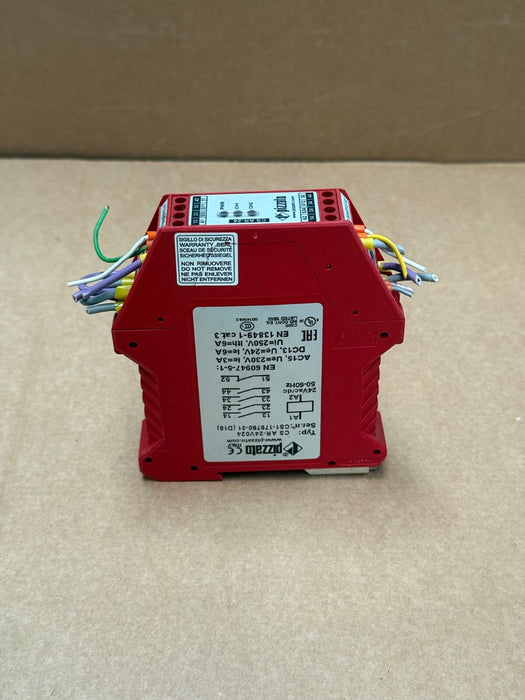

The Pizzato CS AR‑24V024 is a compact safety relay module designed for emergency-stop, safety gate, and movable-guard applications. It features four safety-rated normally-open (NO) contacts and one auxiliary NC contact, selectable auto/manual start modes, and operates on 24 V AC/DC. Housed in self-extinguishing polyamide (V0), this 22.5 mm-wide DIN-rail module ensures high-reliability safety control in industrial environments.

Key Features & Specifications

Model / P/N: CS AR‑24V024
Safety Contacts: 4 × NO + 1 × NC auxiliary, forcibly guided mechanics
Safety Category: EN ISO 13849‑1 Category 3, Performance Level PL e, SIL 3
Start Modes: Configurable automatic, manual, or monitored start using DIP switch
Inputs: Supports single or dual-channel emergency-stop or safety sensors
Power Supply: 24 VAC/DC (10–30 VDC / 24 VAC, 50–60 Hz); consumption <5 VA AC, <4 W DC
Terminals & Housing: Screw terminals, IP20 terminal strip, IP40 housing; polyamide PA66 V0 rated
Dimensions & Weight: 22.5 mm width (1 DIN module), -25…+55 °C; ~205 g
