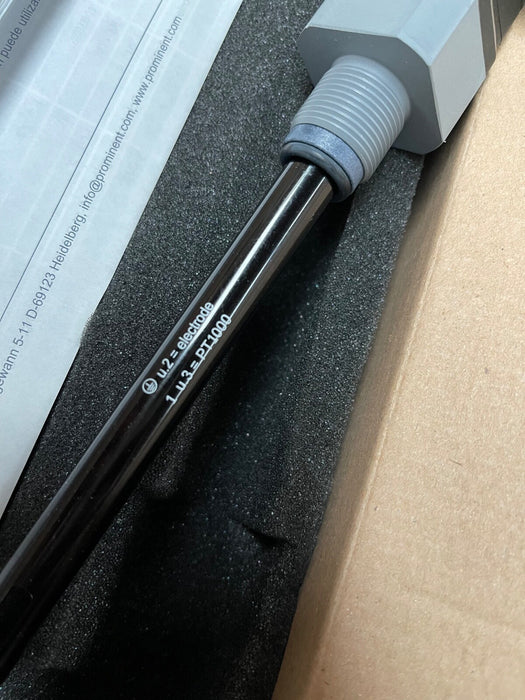

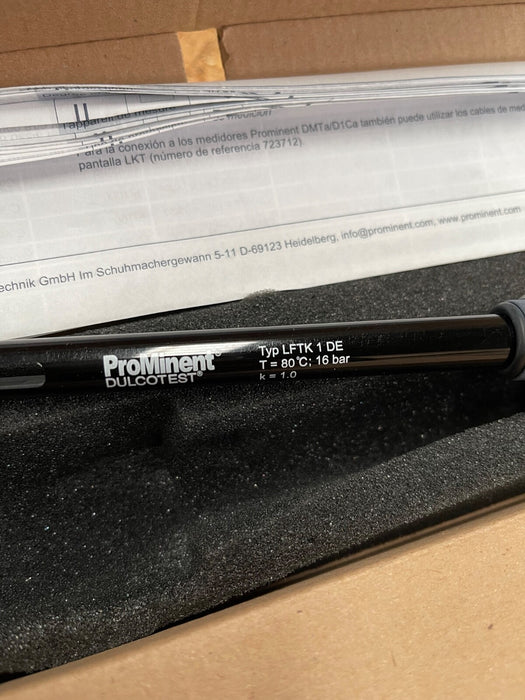

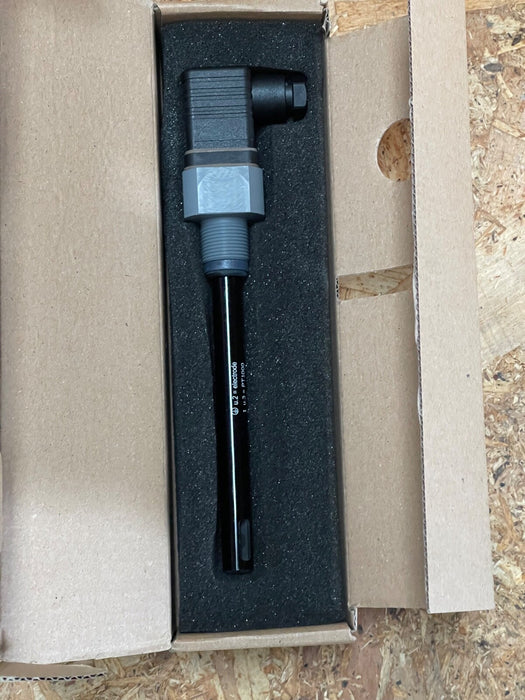

ProMinent - LFTK 1 DE - Conductivity Sensor with Pt1000, DIN Plug - 1002822

The ProMinent LFTK 1 DE is a cost-effective conductivity sensor designed for measuring electrolytic conductivity in clear, uncontaminated water. Equipped with integrated temperature compensation via a Pt1000 sensor and a DIN 4-pin plug, it ensures accurate and reliable measurements in various water treatment applications.

Key Features:

• Model: LFTK 1 DE

• Brand: ProMinent

• Measured Variable: Electrolytic conductivity

• Measuring Range: 0.01 to 20 mS/cm

• Cell Constant: 1.00 cm⁻¹ ±5%

• Temperature Measurement: Integrated Pt1000 sensor

• Medium Temperature: 0 to 80 °C (at 1 bar)

• Maximum Pressure: 16.0 bar (25 °C)

• Sensor Material: Special graphite electrodes with epoxy shaft

• Thread: PG13.5

• Installation Length: 120 ± 3 mm

• Electrical Connection: DIN 4-pin angle plug

• Enclosure Rating: IP65

• Applications: Ideal for drinking water, swimming pool water, and process water monitoring.
