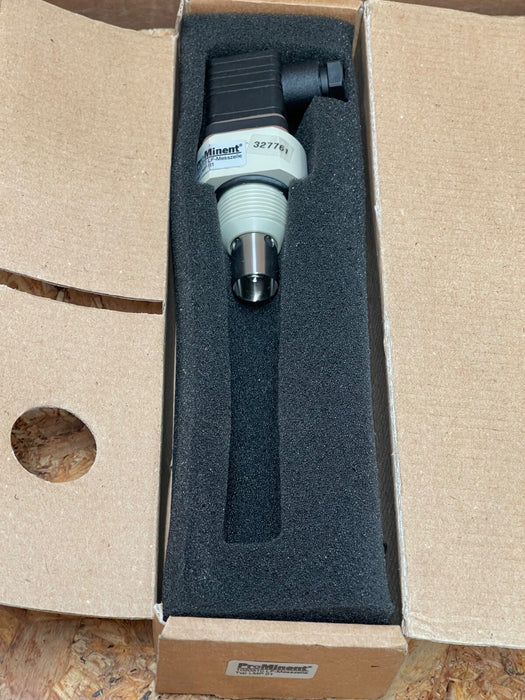

ProMinent - LMP 01 - DULCOTEST Conductivity Sensor, 0.1–500 µS/cm, Pt100

The ProMinent LMP 01-TA is a high-precision conductivity sensor from the DULCOTEST series, designed for monitoring low electrolytic conductivities in clear or chemically contaminated water. Equipped with an integrated Pt100 temperature sensor, it ensures accurate temperature compensation without the need for additional fittings. The sensor is pre-mounted in a polypropylene immersion tube, facilitating straightforward installation in tanks and containers.

Key Features:

• Model: LMP 01-TA

• Brand: ProMinent

• Order Number: 1020512

• Measuring Range: 0.1 to 500 µS/cm

• Cell Constant: 0.10 cm⁻¹ ±5%

• Temperature Sensor: Integrated Pt100

• Medium Temperature Range: 0 to 70 °C

• Maximum Pressure: 16 bar at 50 °C

• Sensor Electrodes: Stainless Steel 1.4571

• Sensor Shaft Material: Polypropylene (PP)

• Thread: M28 × 1.5 for TA-LM in-line probe fitting

• Installation Length: Up to 1 m

• Electrical Connection: 5 m fixed cable

• Enclosure Rating: IP65

• Process Integration: Immersion via immersion tube

• Typical Applications: Monitoring ion exchangers, reverse osmosis systems, and desalination systems

• Compatible Controllers: DULCOMETER DCCa, DACb, DMTa, D1Ca, diaLog X, DULCOMARIN 3, AEGIS II, AEGIS S

• Measuring Principle: Conductive, 2 electrodes with integrated temperature measurement
