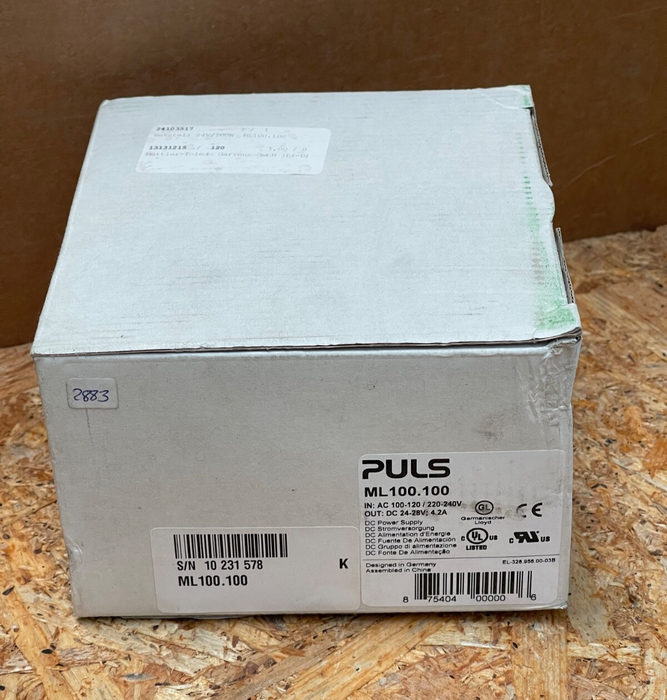

PULS – ML100.100 – 100 W DIN‑Rail Power Supply, 24–28 V DC @ 4.2 A

The PULS ML100.100 from the MiniLine series is a high-performance DIN-rail power supply delivering 100 W at 24 V with a maximum output current of 4.2 A. It supports universal AC (100–120 / 220–240 V) or DC (up to 290 V) input and is built with compact spring-clamp terminals. With 90% efficiency, electronic inrush current limiting, and dual-mode parallel operation, it’s ideal for reliable power delivery in industrial and control systems up to +70 °C.

 Key Specifications

• Output: 24 V DC (adjustable up to 28 V) at 4.2 A / 100 W

• Input: AC 100–120 / 220–240 V (auto‑select) or DC up to 290 VDC

• Efficiency: ~90%; Power loss ~11.4 W; MTBF ~500,000 h @ 40 °C

• Protection: Internal fuse, overload, short‑circuit, and electronic inrush current limiting

• Operating Temp: –10 … +70 °C (full power) with derating above 60 °C

• Form Factor: 73 × 75 × 103 mm, DIN-rail (TS35), spring clamps, weight ~360 g

• Certifications: UL 508, IEC 60950-1, Class I Div 2/NEC, marine approvals, RoHS compliant
