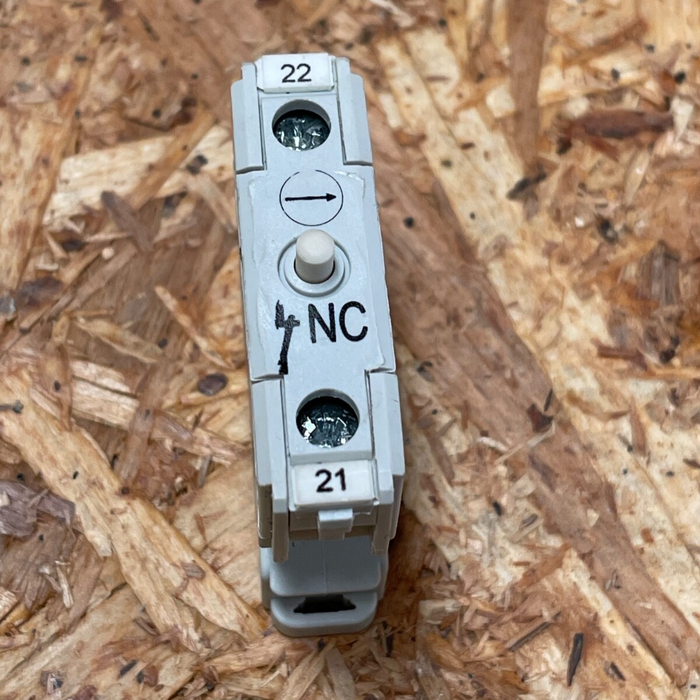

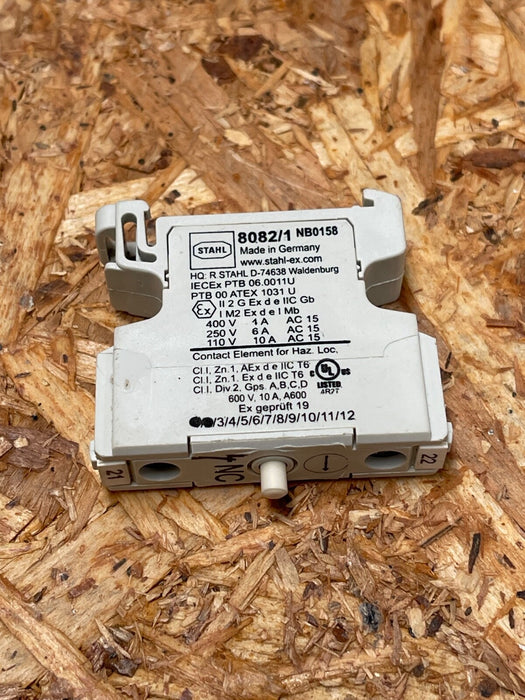

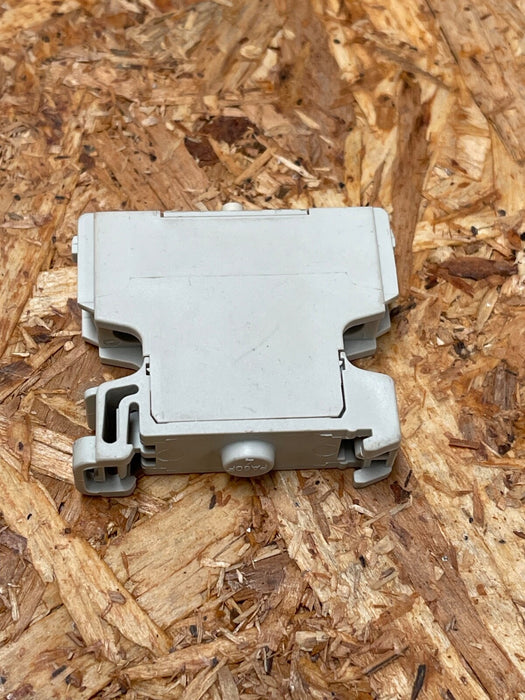

R. STAHL - 8082/1-1-00 - Contact Element, 1 NC, Screw Terminal, Ex d e IIC

The R. STAHL 8082/1-1-00 is a single contact element featuring one normally closed (NC) contact with positive opening operation, designed for integration into control and signaling devices within hazardous environments. Engineered for use in Zone 1 and Zone 2 areas, this module ensures reliable performance under demanding industrial conditions.

Key Features:

• Model: 8082/1-1-00

• Brand: R. STAHL

• Contact Configuration: 1 Normally Closed (NC) with positive opening operation

• Mounting: DIN rail mounting

• Terminal Type: Screw terminals

• Contact Material: Silver-nickel

• Rated Operational Voltage: Up to 550 V AC

• Rated Operational Current: Up to 10 A AC15

• Switching Capacity:

  • AC-12: 250 V / 10 A

  • AC-15: 110 V / 10 A, 250 V / 6 A, 400 V / 4 A

  • DC-13: 60 V / 6 A

• Mechanical Service Life: 1 million operations

• Electrical Service Life: 1 million operations

• Ambient Temperature Range: -60°C to +70°C

• Protection Rating: IP20

• Explosion Protection:

  • ATEX Certification: II 2 G Ex db eb IIC T6 Gb

  • IECEx Certification: Ex db eb IIC T6 Gb

  • UL Certification: Class I, Div. 2, Groups A, B, C, D

• Applications: Suitable for use in hazardous areas requiring reliable control and signaling components, such as chemical plants, oil refineries, and offshore platforms.
