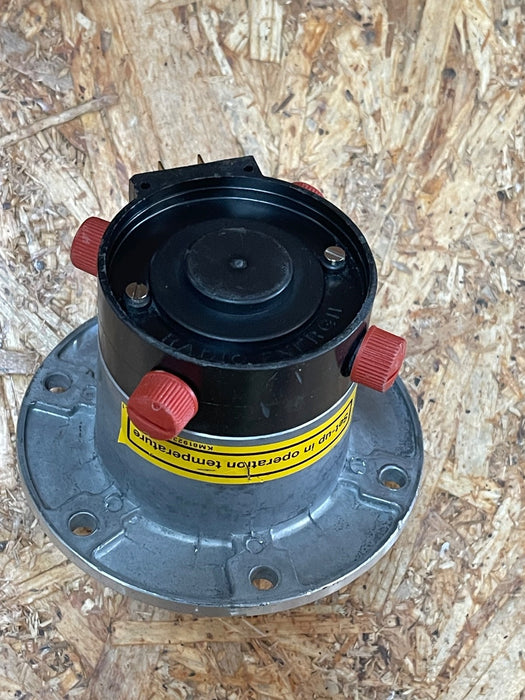

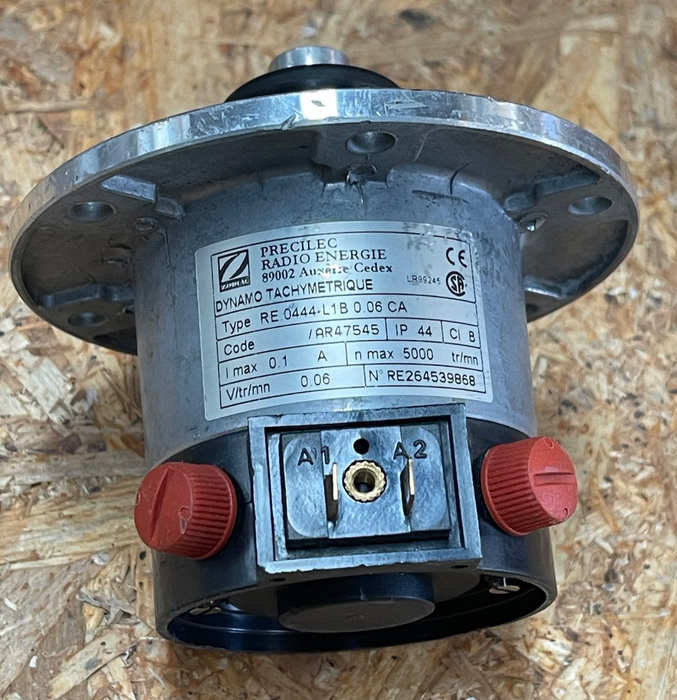

The Radio-Energie RE.0444 L1B 0.06 CA is a robust DC tachogenerator designed for precise speed feedback in closed-loop variable speed control systems and industrial monitoring applications. This model provides a single DC output signal of 60V at 1000 RPM (0.06V/RPM), making it ideal for accurate shaft speed measurement. The unit features a B5 industry-standard flange mount with 6 x 6.5mm holes on a 100mm PCD and an 85mm diameter register in a 115mm diameter flange. The shaft is 11mm in diameter and 30mm long, equipped with a 4mm key for secure coupling. The device includes a terminal box for easy wiring and is rated IP54 for protection against dust and splashing water. It is fitted with silver graphite (CA) brushes for reliable signal transmission and long operational life.

Key Features:

• Output voltage: 60V at 1000 RPM (0.06V/RPM)

• Mounting: B5 industry-standard flange, 6 x 6.5mm holes on 100mm PCD

• Shaft: 11mm diameter x 30mm length, 4mm key

• Enclosure rating: IP54

• Maximum speed: 5,000 RPM

• Current: 1 x 3mA

• Brushes: Silver graphite (CA)

• Terminal box for robust industrial connections

• Accurate speed feedback for closed-loop control

Radio-Energie – RE.0444 L1B 0.06 CA – Tachogenerator, 60V/1000RPM, Flange Mount
