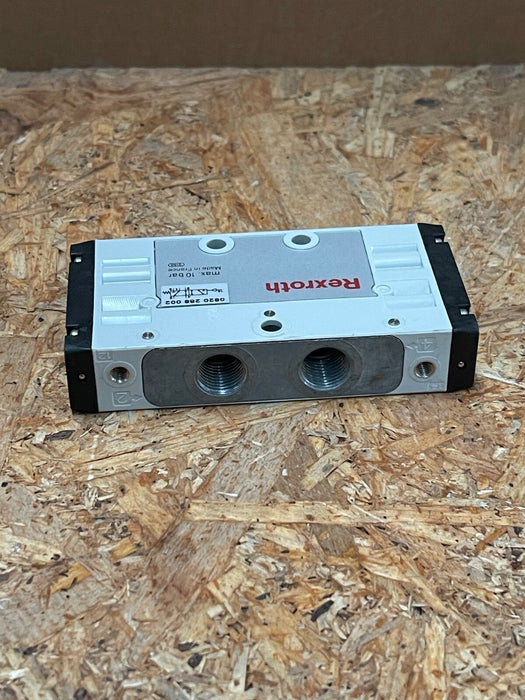

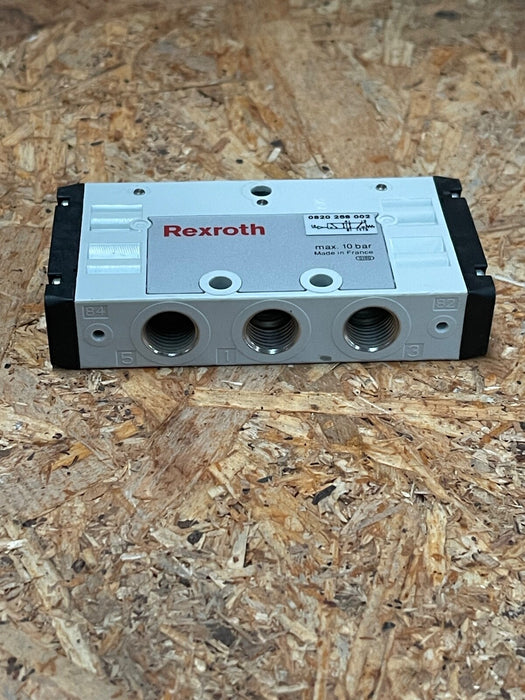

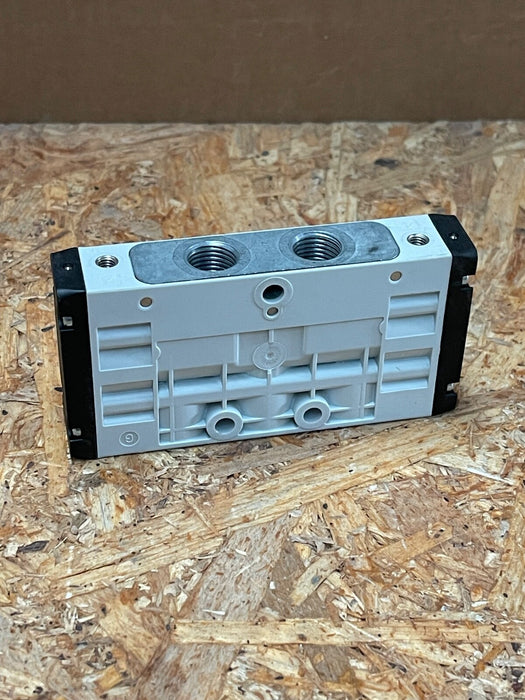

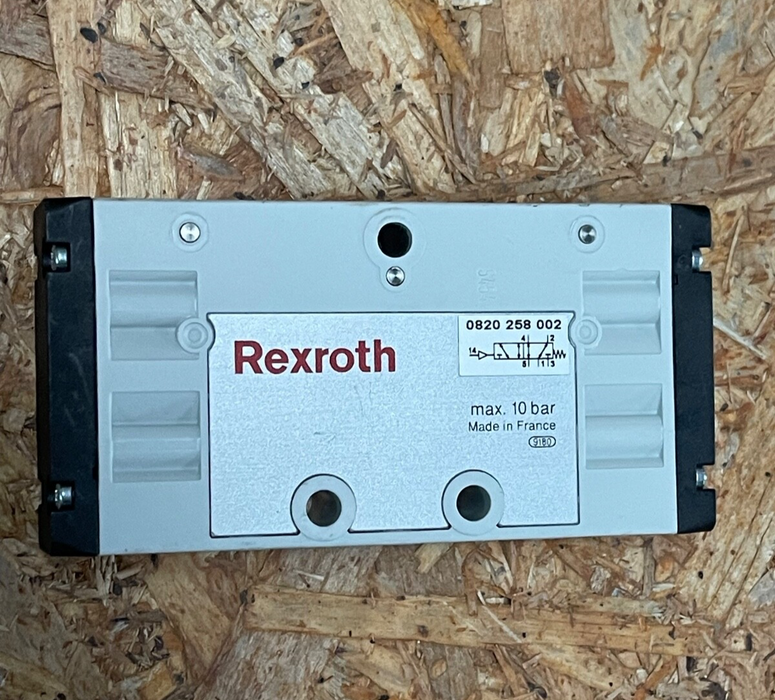

Rexroth – 0820258002 – TC15 Series 5/2-Way Pneumatically Piloted Valve, G 1/4

The Rexroth 0820258002 is a 5/2-way directional control valve from the TC15 series, designed for high-speed pneumatic applications. With a pneumatically piloted actuator and spring return mechanism, it reliably switches compressed air flow in industrial automation systems. This valve features a compact, lightweight design with G 1/4 threaded ports and robust polyamide housing for long-term durability.

Key Features:

• Model: 0820258002 (TC15 Series)

• Brand: Rexroth (Bosch Rexroth Group)

• Valve Type: 5/2-way directional control

• Actuation: Pneumatically piloted, spring return

• Flow Capacity: Up to 1,500 L/min

• Port Size: G 1/4 inlet/outlet; M5 pilot port

• Pressure Range: –0.9 to 10 bar (–13 to 145 psi)

• Operating Temperature: –10 °C to +50 °C

• Body Material: Glass-fiber reinforced polyamide

• Seal Type: Soft-seal spool design

• Mounting: Sub-base or manifold mountable

• Dimensions: Approx. 30 mm width (compact TC15 form factor)
