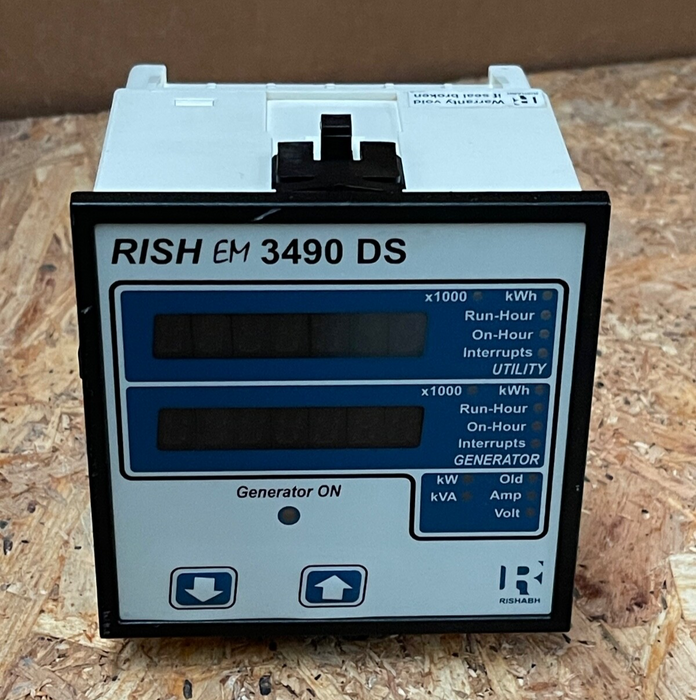

The RISH Master 3490 DS by Rishabh Instruments is a dual-source digital energy meter designed for monitoring electrical parameters from both utility and generator sources in three-phase and single-phase networks. Housed in a compact 96×96 mm DIN panel mount enclosure, it features a high-brightness dual-line 7-digit LED display for simultaneous viewing of utility and generator parameters. The meter supports true RMS measurements up to the 15th harmonic and offers optional MODBUS (RS485) communication and pulse outputs for integration into energy management systems.

Key Features:

Model: RISH Master 3490 DS
Brand: Rishabh Instruments
Functionality: Dual-source energy monitoring (Utility & Generator)
Display: Dual-line 7-digit LED
Measured Parameters: AC Voltage, AC Current, Frequency, Active Power, Apparent Power, Power Factor, Phase Angle, Active Energy (kWh), Run Hour, ON Hour, Number of Interruptions
Measurement Type: True RMS up to 15th harmonic
Input Voltage: Nominal 57.7 V–288.68 V L-N / 100 V–500 V L-L
Input Current: 1 A or 5 A (programmable)
Auxiliary Supply: 100–250 V AC/DC or 12–48 V DC
Generator Sense Input: 10–60 V DC / 20–300 V AC
Communication: Optional MODBUS (RS485)
Pulse Output: Optional, separate outputs for Utility and Generator
Mounting: Panel mount (96×96 mm DIN)
Protection Rating: IP54 (front panel)
Applications: Ideal for industrial and commercial facilities requiring accurate monitoring of energy consumption from multiple sources.
