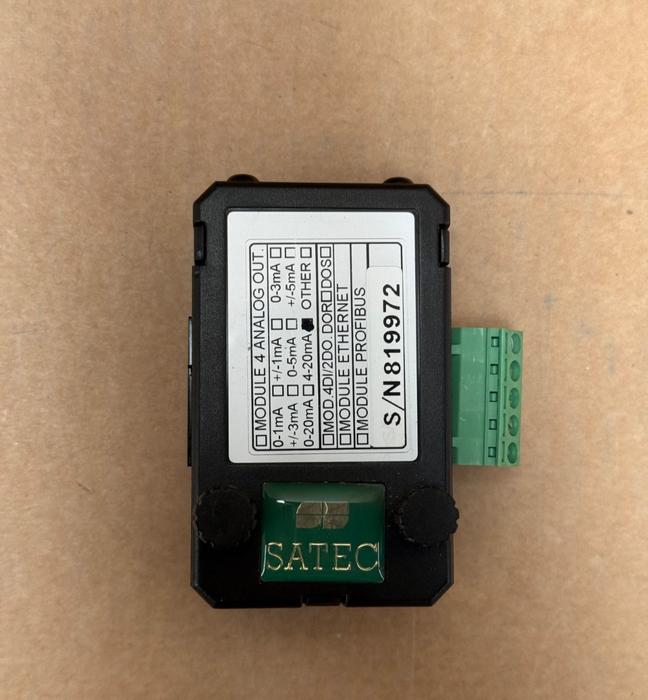

SATEC – Module 4 – Analog Output Module 4–20 mA for PM130/PM135 Power Meters

The SATEC Module 4 is an analog output expansion designed for use with SATEC multifunction power meters such as the PM130 and PM135 series. This unit provides four analog outputs (selected 4–20 mA), suitable for PLCs, analog panel meters, or remote signal control. It connects directly to the meter via the rear interface and supports flexible signal scaling for process monitoring.

Key Features:

• Manufacturer: SATEC

• Module Type: Module 4 – Analog Output Expansion

• Output Type: 4 × Analog Outputs

• Signal Range: 4–20 mA (factory-selected)

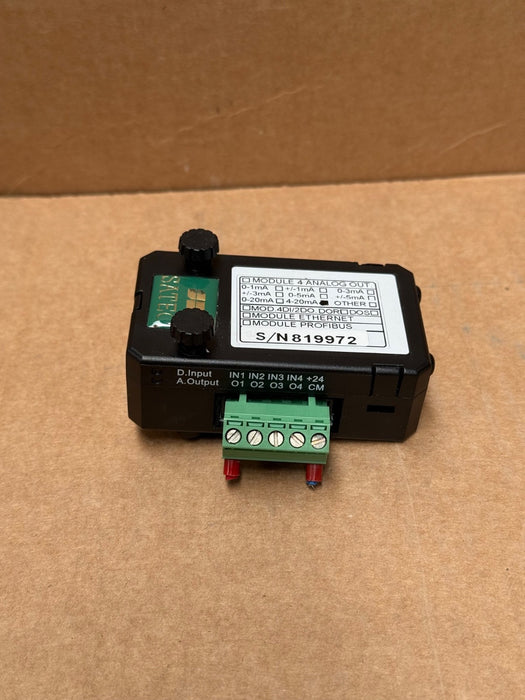

• Inputs/Terminals: IN1–IN4, +24 V, CM (common)

• Compatible With: SATEC PM130, PM130EH, PM135 series

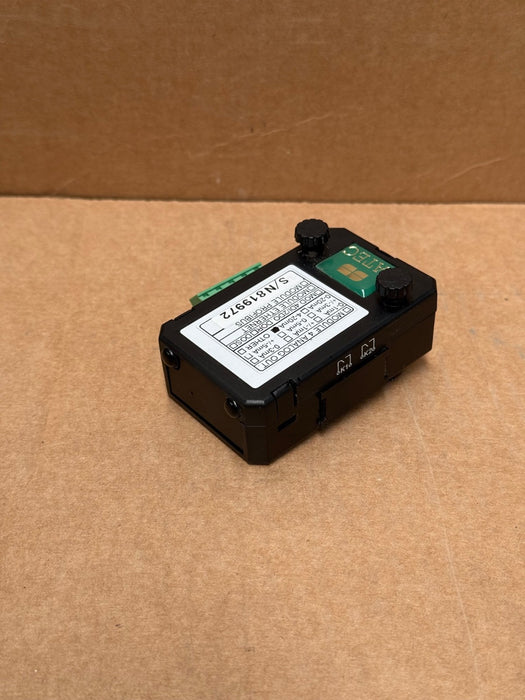

• Mounting: Direct plug-in module for rear of SATEC meters

• Applications:

  • Analog retransmission to PLC/DCS

  • SCADA signal interface

  • Process or load control feedback

• Label Info:

  • Options include 0–1 mA, ±1 mA, 0–3 mA, ±3 mA, 0–20 mA, 4–20 mA

  • This unit is marked for 4–20 mA output
