The SATEC PM130EH PLUS is a multifunctional three-phase power meter with comprehensive energy and harmonic analysis capabilities, ideal for industrial, commercial, and utility applications. It supports DC metering via shunts and features versatile communication ports (RS‑485, Ethernet, optional Profibus) using open protocols like Modbus RTU/TCP, DNP3.0, and IEC 60870‑5‑101/104. The bright LED display and load‑bar graph enable easy on-site monitoring.

Key Features:

Manufacturer: SATEC
Model: PM130EH PLUS (EH = Energy + Harmonics) ()

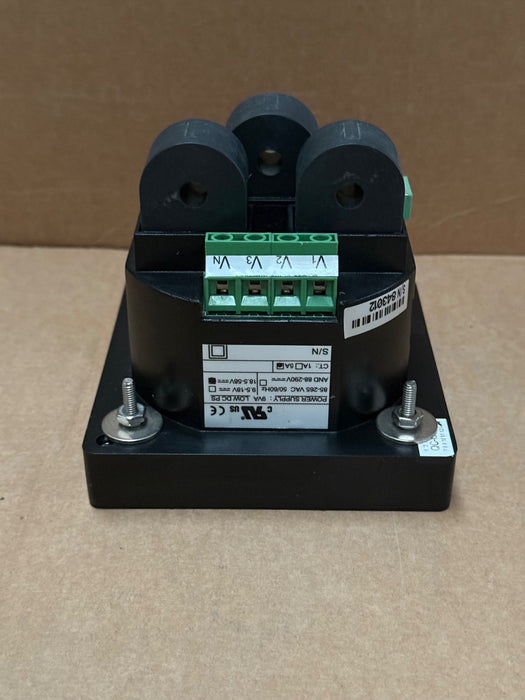

Inputs: 3-phase voltage (15–828 V AC), 3-phase current (1A or 5A CT), and optional DC via shunt
Accuracy: Class 0.5/0.5S (AC) and Class 0.5 (DC) per ANSI/IEC standards
Parameters Measured: RMS volts, amps, power, energy, frequency, power factor, neutral & unbalance, harmonics (>80 parameters)
Communication Ports: Standard RS‑485; optional Ethernet, PROFIBUS; supports Modbus RTU/TCP, DNP3.0, IEC 60870‑5‑101/104
I/O Modules: Supports up to 16 digital/analog I/O modules

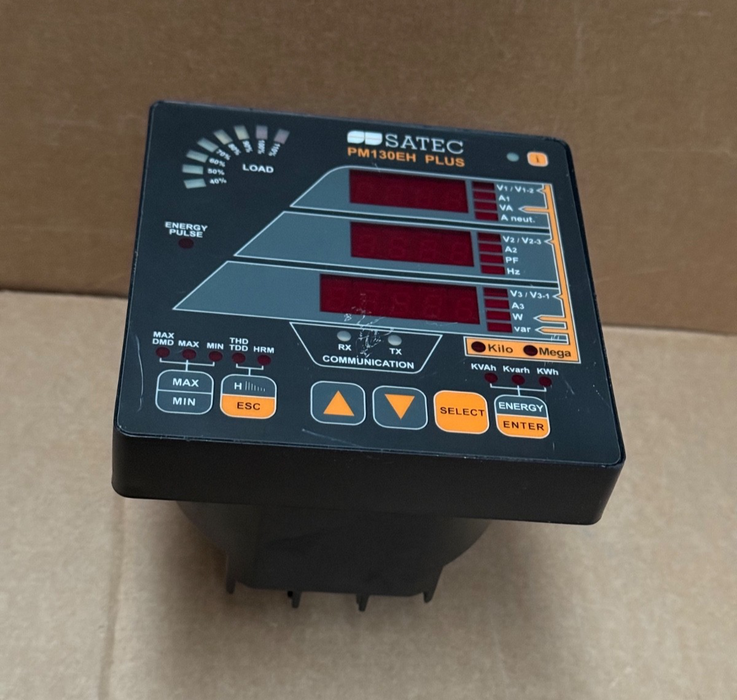

Display: 7-segment LED + load-bar indicator for real-time usage visual
Frequency Range: 25–400 Hz supporting both AC and DC metering
Form Factor: Panel-mount (92×92 mm or 4″ round cutout)
Protocols: Class-leading integration for SCADA/substation systems
