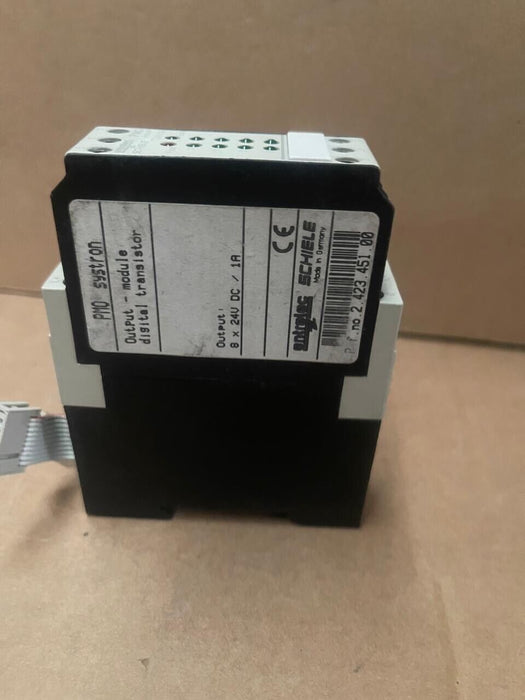

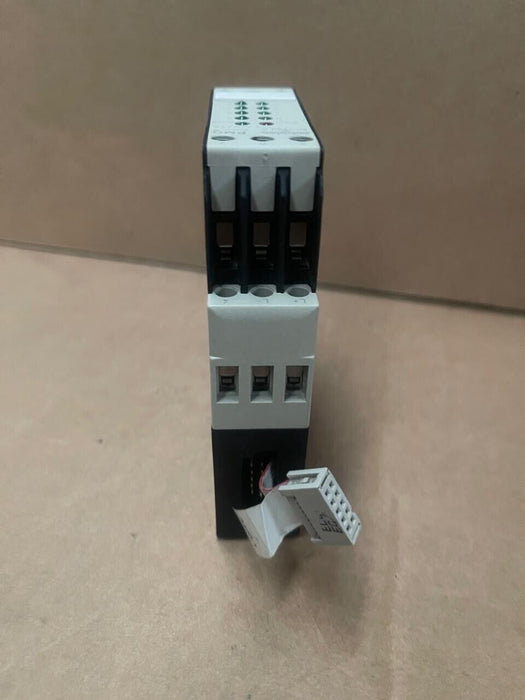

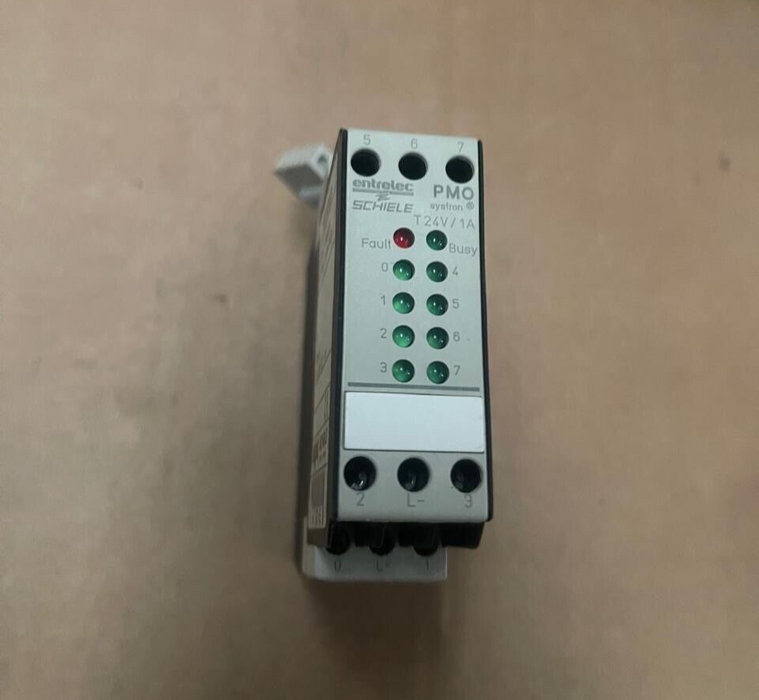

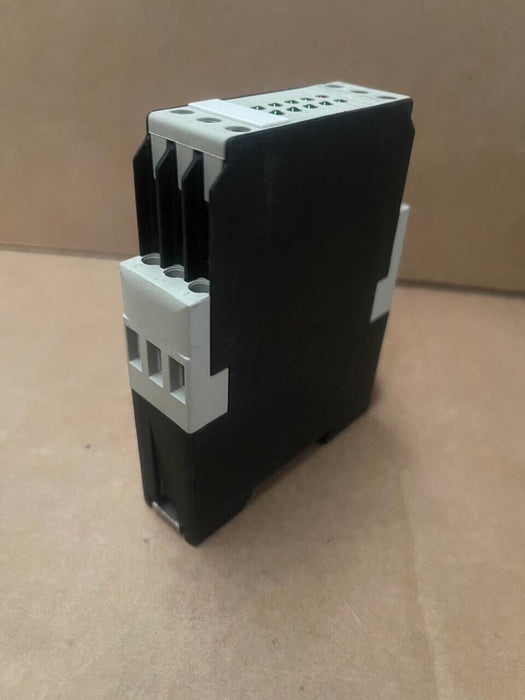

Schiele - PMO T 24V/1A - Relay Output Module

The Schiele PMO T 24V/1A is a relay output module designed for integration into industrial automation systems. This module facilitates the control of various electrical loads by providing reliable switching capabilities, making it suitable for use with Programmable Logic Controllers (PLCs) and other control devices.

Key Features:

• Relay Outputs: Equipped with multiple relay outputs capable of switching AC and DC loads.

• Switching Capacity: Supports switching currents up to 1 A at 24 V, suitable for controlling various industrial devices.

• Durable Construction: Built to withstand demanding industrial environments, ensuring long-term reliability.

Technical Specifications:

• Supply Voltage: 24 V DC

• Output Channels: Multiple relay outputs (exact number not specified)

• Switching Voltage: Up to 24 V DC

• Switching Current: Up to 1 A (resistive load)

• Electrical Life: Approximately 100,000 operations at DC 24 V / 1 A

• Mechanical Life: Approximately 30 million operations

• Mounting: DIN rail mounting

• Dimensions: 22.5 mm (Width) x 78 mm (Height) x 100 mm (Depth)

• Operating Temperature: 0 °C to +55 °C

• Storage Temperature: -25 °C to +75 °C

• Degree of Protection: IP 50 (housing), IP 20 (terminals)

Applications:

The PMO T 24V/1A module is suitable for various industrial applications, including:

• Process Automation: Controlling actuators, valves, and other devices in automated processes.

• Building Automation: Managing lighting, HVAC systems, and other building infrastructure components.

• Machine Control: Interfacing with motors, pumps, and other machinery requiring reliable switching operations.

Weight: Approximately 150 grams
