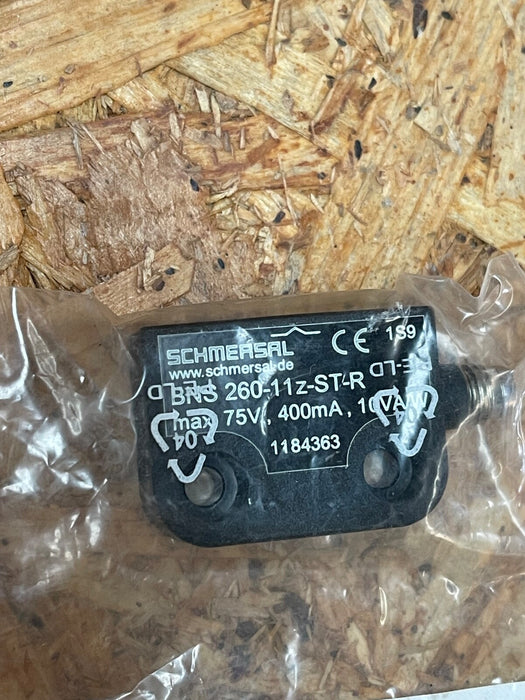

The Schmersal BNS 260-11Z-ST-R is a compact, non-contact magnetic safety sensor designed to monitor the position of movable safety guards in industrial environments. Featuring a right-hand door hinge configuration and an M8 connector, this sensor ensures reliable performance and easy integration into safety circuits.

Key Features:

Model: BNS 260-11Z-ST-R
Brand: Schmersal
Part Number: 101184363
Switching Elements: 1 Normally Open (NO), 1 Normally Closed (NC)
Actuating Element: Magnet
Assured Switching Distance (ON): 5 mm
Assured Switching Distance (OFF): 15 mm
Housing Material: Glass-fibre reinforced thermoplastic
Dimensions (L × W × H): 13 mm × 26 mm × 36 mm
Connection: M8, 4-pole connector
Protection Class: IP67
Operating Temperature Range: -25 °C to +70 °C
Switching Voltage (Max): 75 V DC
Switching Current (Max): 0.4 A
Switching Capacity (Max): 10 VA
Switching Frequency (Max): 5 Hz
Standards: EN IEC 60947-5-3, EN ISO 14119
Certifications: cULus
Applications: Suitable for monitoring the position of movable safety guards in machinery, ensuring reliable detection and safety compliance.

Schmersal - BNS 260-11Z-ST-R - Magnetic Safety Sensor, 1 NO/1 NC, M8 Connector
