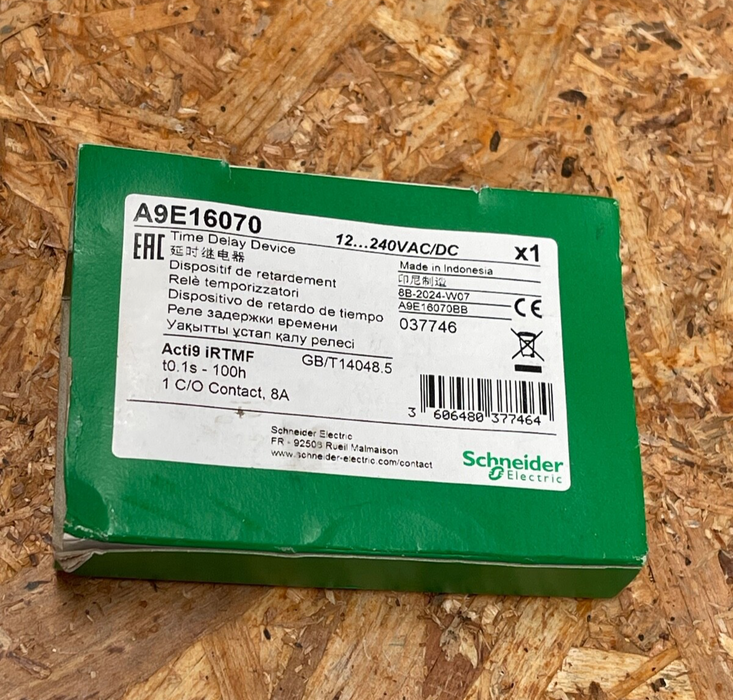

Schneider Electric – A9E16070 – iRTMF Multifunction Time-Delay Relay

Main Features

• Model & Series: A9E16070, part of Schneider’s Acti 9 iRTMF multifunction timer relay line

• Supply Voltage: Wide range from 12 to 240 VAC/DC, suitable for diverse control applications

• Timing Range: Adjustable from 0.1 s up to 100 h (360,000 s), with ±10 % accuracy

• Function Modes: Supports four timing functions—types A, B, C, or H—selectable via top panel

• Relay Output: Single SPDT contact rated 8 A @ 250 VAC/DC (AC and DC loads)

• User Interface: Rotary knobs for function and time setting, with LED indicator that flashes during timing process

• Mounting & Connections: Compact 18 mm DIN-rail mountable module; screw-type tunnel terminals for 1.5–2.5 mm² conductors

• Durability & Protection: IP20 rated, operational from –5 °C to +55 °C, mechanical life > 5 million cycles, electrical life > 100,000 cycles (AC‑1)

• Certifications: Green Premium environmental rating, RoHS‑compliant
