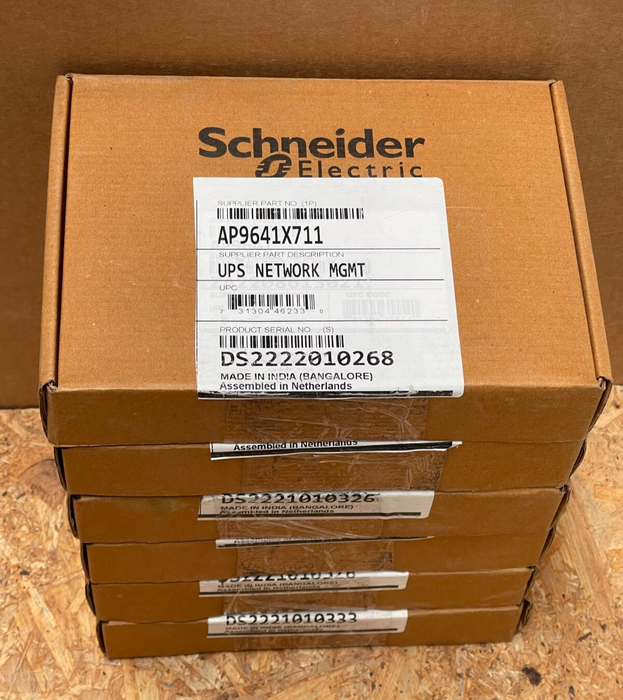

Schneider Electric (APC) – AP9641X711 – Network Management Card 3 (Gigabit)

The AP9641X711 (AP9641) is Schneider Electric’s Network Management Card 3 (NMC3) tailored for remote UPS monitoring and management. This Gigabit Ethernet-enabled module offers secure access, environmental sensing, and event notification to optimize UPS performance and data-center operations.

Key Features:

• Model: AP9641X711 (also AP9641)

• Function: UPS remote management & environmental monitoring interface

• Network Interface: RJ45 10/100/1000 BASE‑TX; supports IPv4, IPv6, HTTP(S), SSH, SNMP v1/2c/3, Telnet, NTP

• Connectivity Ports:

 – RJ45 Ethernet port

 – 2 × USB ports (Type A & micro‑USB console)

• Environmental Sensor: Includes internal temperature sensor; supports remote probe option

• Physical Specifications:

 – Size: 124 × 38 × 114 mm (W×H×D) / 4.76″ × 1.50″ × 4.49″

 – Weight: ~0.09 kg

• Usage Conditions: Operation: 0–45 °C, 0–95 % RH; Storage: –5–45 °C, up to 15 km elevation

• Certifications: UL, FCC Class A, EN 55022/24, AS/NZS C‑Tick, VCCI, GOST; CE, RoHS compliant; Green Premium product
