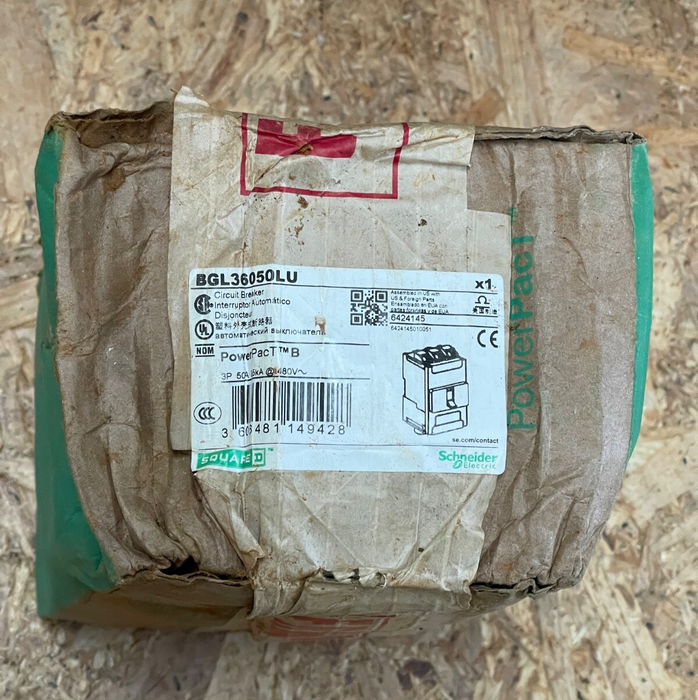

Schneider Electric – BGL36050LU – PowerPact B 50 A 3‑Pole MCCB, 600Y/347 V AC

The Schneider Electric BGL36050LU is a robust molded-case circuit breaker from the PowerPact B series (also branded Square D). Designed for heavy-duty industrial and commercial use, this 3-pole breaker offers dependable thermal-magnetic trip protection with a continuous rating at 80% and a high interrupting capacity, ideal for load center, feeder, or motor circuit protection in 600Y/347 V systems.

Key Features:

• Model: BGL36050LU – PowerPact B, 3 poles, 50 A

• Voltage Rating: 600Y/347 VAC – UL listed; also rated for 480 VAC and 525 VAC

• Interrupting Capacity:

  • 18 kA at 600Y/347 VAC

  • 35 kA at 480 VAC

  • 65 kA at 240 VAC

• Trip Unit: Thermal-magnetic with manual reset; internal push-to-trip button

• Terminations: EverLink lugs on line and load ends; includes control-wire terminal on end

• Mounting: Unit-mount construction with optional DIN-rail clip; B-frame compact size

• Standards: UL 489, CSA, IEC, CE; UL listed for 600Y/347 V systems

• Robustness: Dual-break rotating contacts reduce peak fault stress; durable mechanical design with ~15,000 operating cycles
