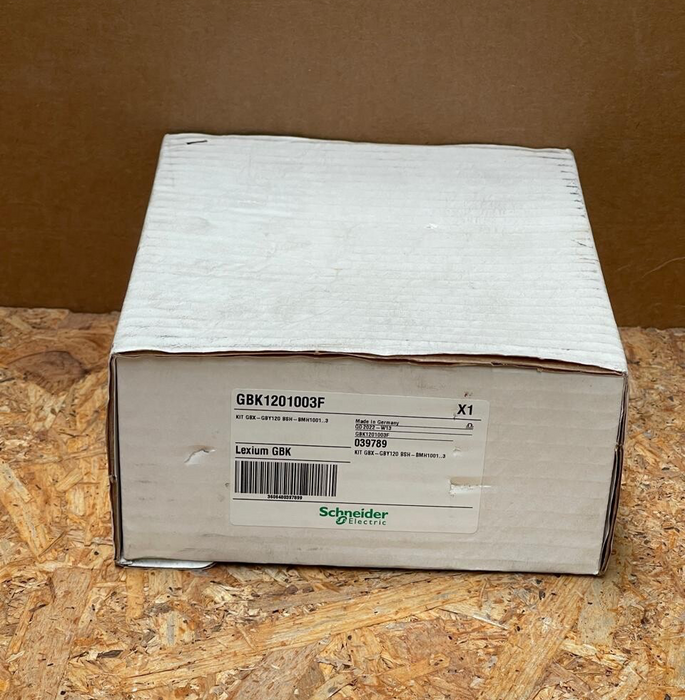

Schneider Electric – GBK1201003F – Lexium Servo Motor to Gearbox Adapter Kit

The GBK1201003F is a Schneider Electric adapter kit designed to mechanically interface Lexium servo motors with size 120 gearboxes. This precision kit ensures reliable alignment and easy assembly, including all necessary hardware and a shaft coupler—ideal for OEMs and maintenance use.

Key Features:

• Model: GBK1201003F (Adapter Kit)

• Compatibility: Lexium 32, 32i, 52, 62, 62 ILM servo motors matched with BMH/BSH/BMI/MH3/SH3/ILM gearboxes

• Motor Flange Size: 100 mm (3.94 in)

• Gearbox Adapter Diameter: 120 mm (4.72 in)

• Kit Includes: Adapter plate, shaft-end coupler, mounting screws/bolts

• Stack Capacity: Supports up to three motor stacks

• Adapter Length (a): 21.8 mm

• Weight: 0.65 kg (1.43 lb)

• Housing Origin: Manufactured in Germany

• Compliance & Sustainability: REACH compliant; RoHS declaration; not Green Premium but mercury-free
