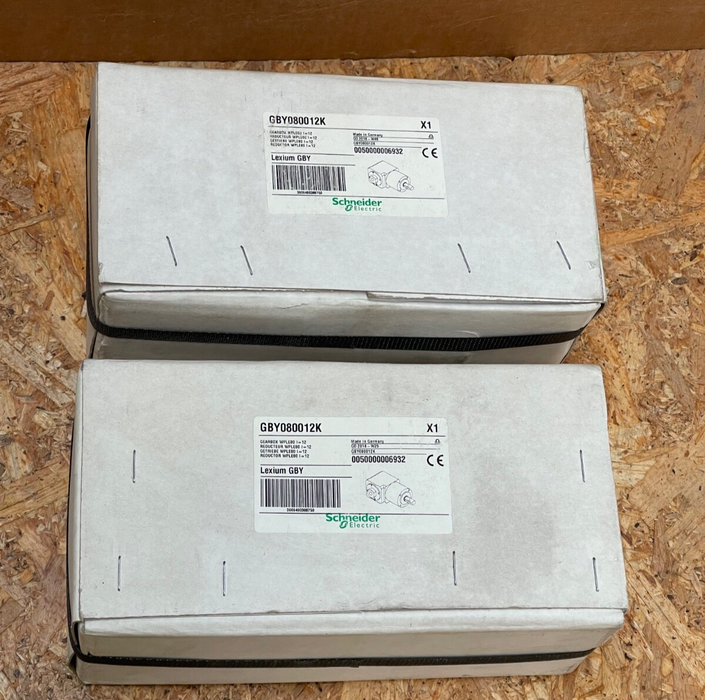

Schneider Electric – GBY080012K – 80 mm Angular Planetary Gearbox Ratio 12:1

The GBY080012K is a straight-teeth angular planetary gearbox made by Schneider Electric (Lexium series). Designed for precise motion control, it delivers high torque and minimal backlash in a compact 90° configuration. It’s ideally matched with Lexium 32/52/62/ILS stepper and servo motors, offering smooth operation in positioning, labelling, printing, packaging, and textile machinery.

 Key Features

• Model / P/N: GBY080012K

• Gear Configuration: 90° angular planetary gearbox with straight-cut teeth

• Ratio: 12:1 reduction

• Output Size: Ø 80 mm flange

• Torque: 120 Nm continuous at 100 rpm

• Axial Force Rating: 1200 N at 100 rpm

• Backlash: ≤ 15 arc min

• Housing: Black anodized aluminum, lubricated for life, IP54 rated

• Mounting Flexibility: Can be mounted in any orientation; 30,000 h service life at 100 rpm
