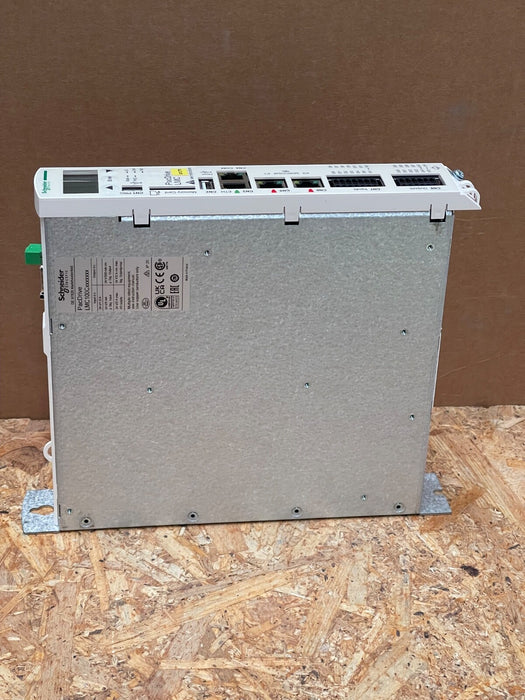

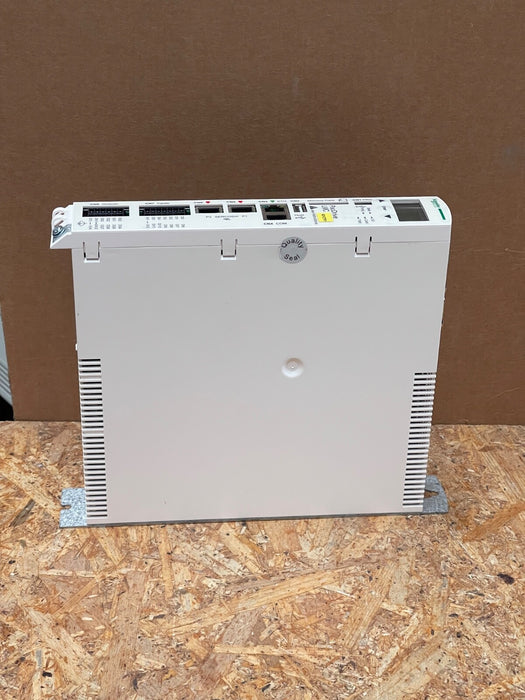

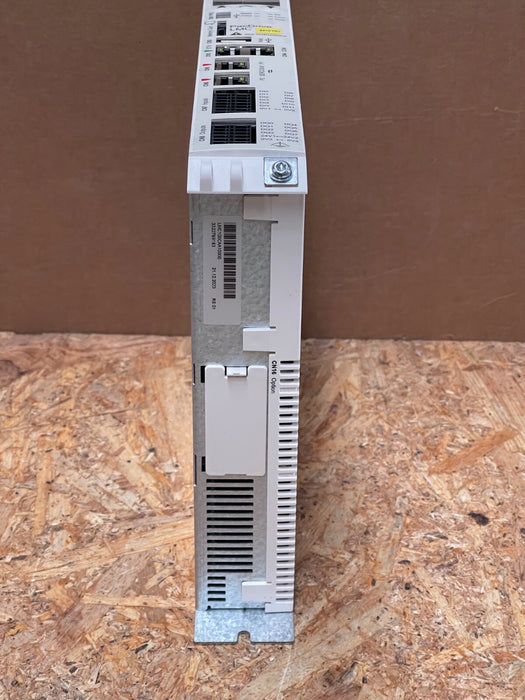

Schneider Electric – LMC100CAA10000 – PacDrive 3 LMC100 0‑Axis Motion Controller

The Schneider Electric LMC100CAA10000 is a compact 0‑axis motion controller from the PacDrive 3 line, offering acceleration kit functionality in a streamlined form factor. Built for industrial automation, this controller features digital I/O and multiple communication ports, enabling integration into modular machine frameworks with controlled motion coordination.

Key Features:

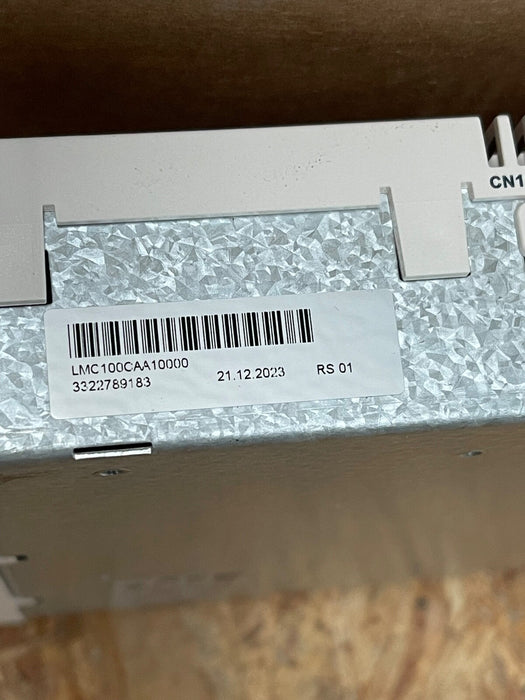

• Model / P/N: LMC100CAA10000 – motion controller, 0‑axis basic kit

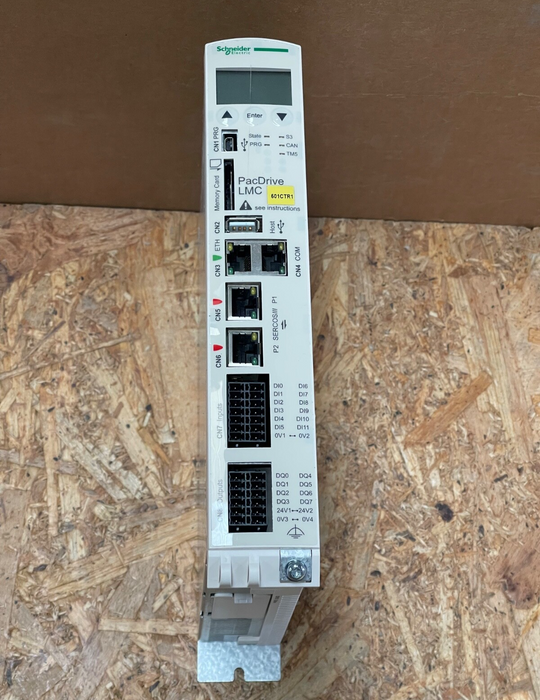

• I/O: 8 digital inputs (including 4 touch-probe channels) and 8 digital outputs

• Input Voltage: 24 V DC supply

• Input Voltage Ranges: 3–5 V & 15–30 V DC, 4 mA per channel

• Anti‑bounce Filter: Configurable 100 µs–4.29 s

• Discrete Output Load: 500 mA per channel, leakage <0.5 mA

• Expansion Capability: Supports 1 I/O expansion module

• Memory: 512 MB DDR2 RAM, 128 kB non‑volatile RAM

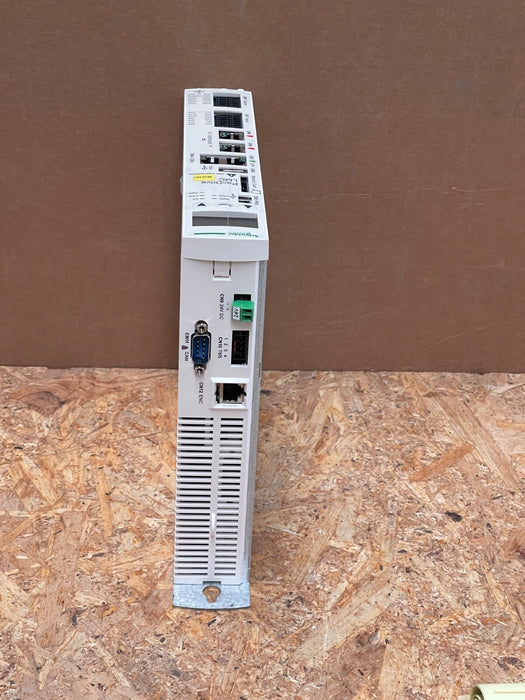

• Communications:

  • 2× Ethernet Sercos (real-time)

  • 1× Ethernet 10/100 Mbps (FTP/HTTP)

  • 1× Ethernet for encoder

  • 1× serial (RS‑232/RS‑485)

  • 1× CANopen (Sub‑D9)

  • 1× USB‑A
