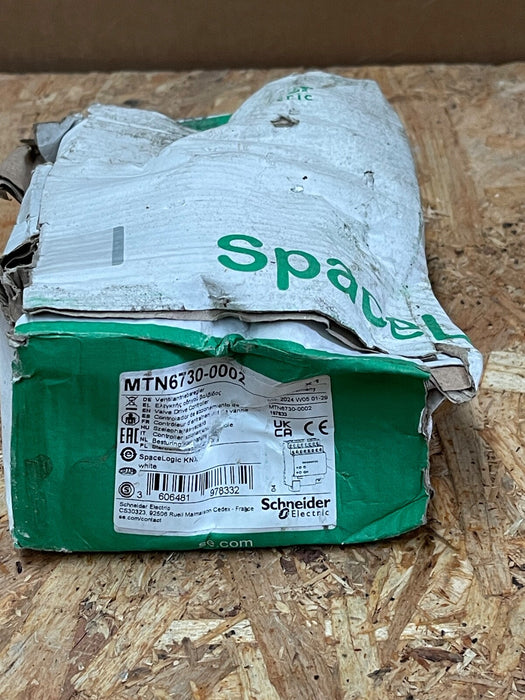

Schneider Electric – MTN6730‑0002 – SpaceLogic KNX Valve Drive Controller

Main Features

• Manufacturer: Schneider Electric – SpaceLogic KNX series

• Model/MPN: MTN6730‑0002

• Device Type: 6‑channel valve drive/actuator controller with integrated temperature regulation for KNX systems

• Output Channels:

  • Six electronic triac outputs (A1–A6), each switching 24–230 VAC load currents of 0.05–0.16 A

  • Supports up to 4 × 230 VAC actuators or 2 × 24 VAC actuators per channel

• KNX Integration: Full KNX/TP bus connectivity; consumes ≤250 mW, coils 21–32 V DC SELV

• Embedded Temperature Control: Six independent integrated room controllers; configurable for PWM or on/off valve regulation

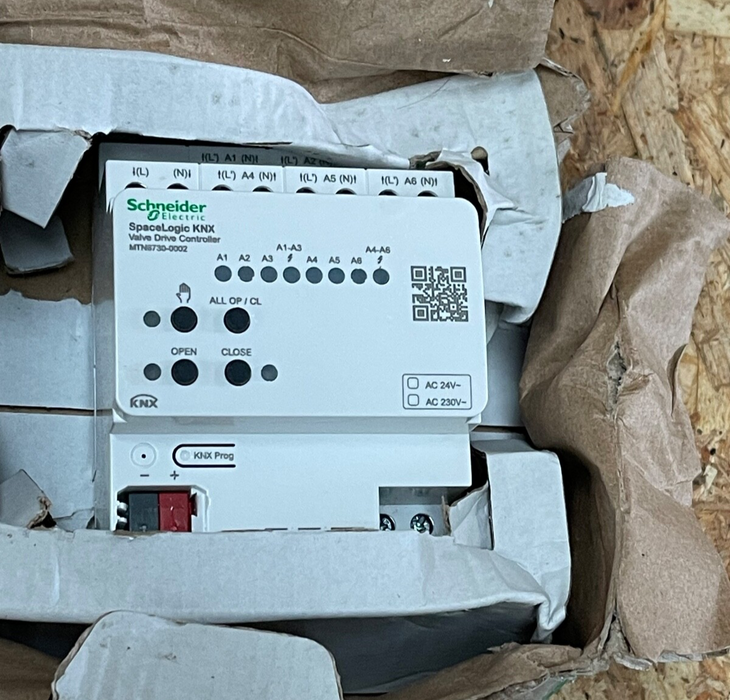

• Manual Override Support: Front panel Open/Close/All controls with real-time status LEDs for outputs and overload detection

• Supply & Mounting:

  • Two power inputs: mains 110–230 VAC for outputs, plus KNX bus supply

  • Snap-on standard 35 mm DIN‑rail mounting, 4‑module width (~72 mm)

• Technical Specs:

  • Ambient temperature range: –5 °C to +55 °C

  • Compact build: 72 × 87 × 77 mm; IP20 protection

• Typical Applications: Underfloor heating, fan coil zone control, radiator valve automation in residential/commercial KNX smart buildings
