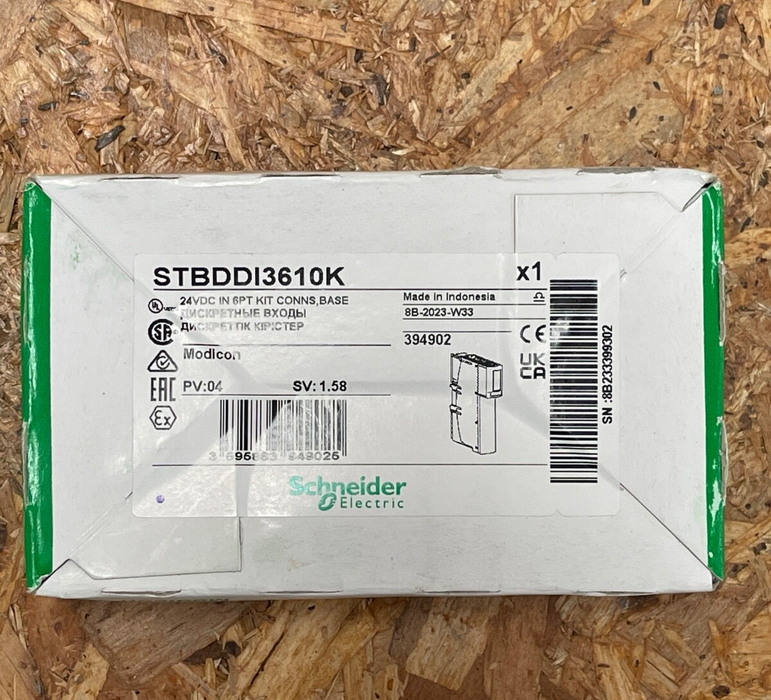

Schneider Electric – STBDDI3610K – Modicon STB 6‑Channel 24 V DC Digital Input

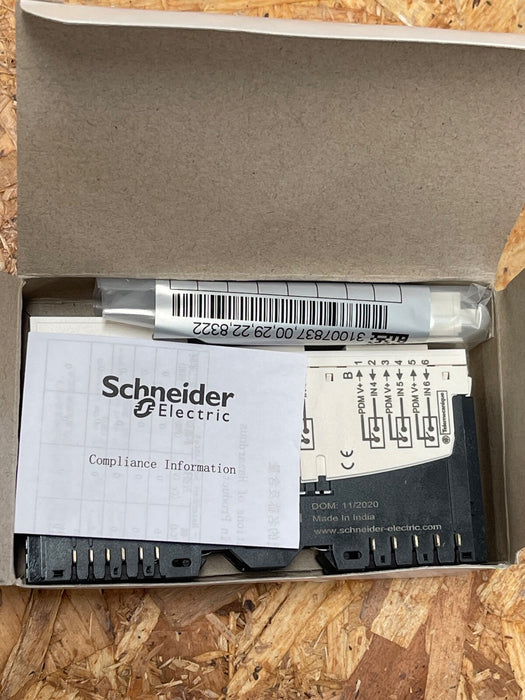

The Schneider Electric STBDDI3610K is a digital input kit from the Modicon STB (Smart Distributed I/O) range. Designed for distributed automation systems, this kit includes a 6-channel 24 V DC digital input module, wiring base, and necessary connection accessories. It supports both positive and negative logic signals and is ideal for applications requiring reliable and compact digital input monitoring.

Key Features:

• Model: STBDDI3610K

• Brand: Schneider Electric

• Input Type: Digital, 6 channels

• Input Voltage Range: 15–30 V DC

• Input Current: Approx. 4.5 mA per channel

• Logic Compatibility: Positive and negative logic

• Response Time: ON: 1.21 ms, OFF: 1.74 ms

• Built-in Filtering: 1 ms

• Status Indicators: Individual green LEDs per channel, module-level READY and ERROR LEDs

• Mounting: DIN-rail with STBXBA1000 base

• Protection: Reverse polarity, input resistors, fused

• Operating Temperature: –25 °C to +70 °C

• Certifications: IEC 61131-2, UL, CSA, FM, RoHS, REACH
