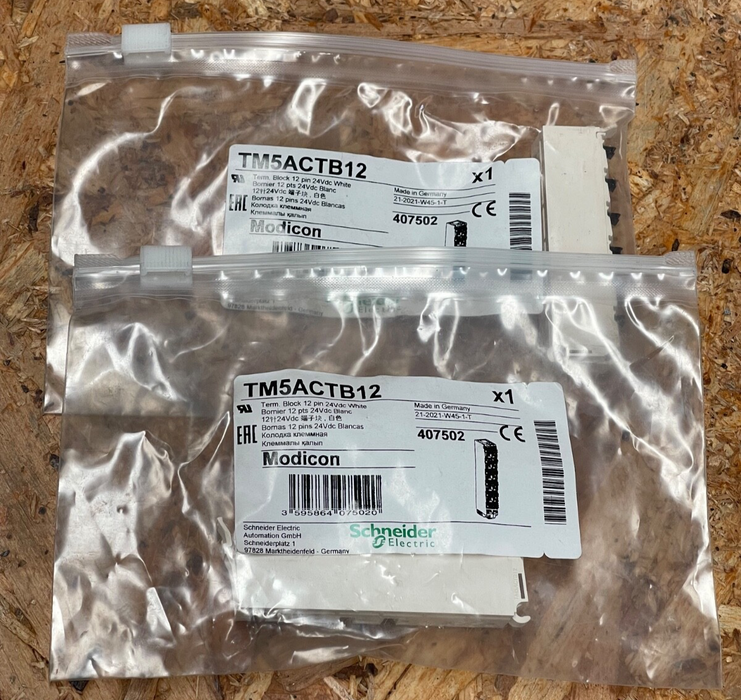

Schneider Electric – TM5ACTB12 – TM5 Modular Terminal Block, 12‑Pin

Main Features

• Part & Compatibility

  • Terminal block designed for the Modicon TM5 IP20 modular I/O system

  • Compatible with digital, analog, common distribution, transmitter, power distribution, and fieldbus interface modules

• Connection Style

  • Spring‑clamp push‑in wiring: tool‑free insertion, quick-release push button, accommodates 0.2–1.5 mm² wires

  • Each of the 12 contacts features a test point for easy diagnostics

• Labeling & Identification

  • Individual terminal labeling slots; supports plain-text marking for wiring clarity

• Color and Coding

  • White housing indicates compatibility with standard 24 V I/O and common distribution modules

  • Avoids mixing with gray variant used for power/fieldbus blocks

• Mechanical & Electrical

  • Snap‑on installation onto bus base; spring‑clamp ensures solid contact under vibration

  • Rated to match the current capacity of associated I/O modules (typically 0.5–2 A per channel)

• Environmental & Packaging

  • IP20 protection

  • Environmentally friendly packaging with ≥70% recycled cardboard
