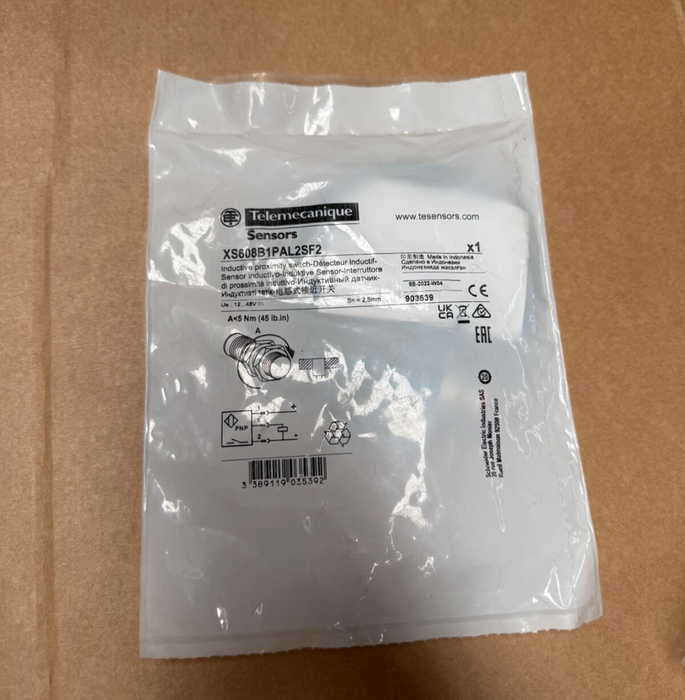

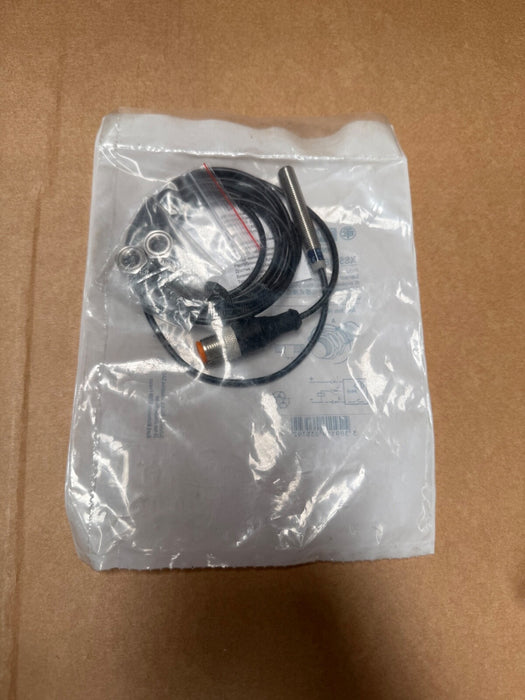

Telemecanique – XS608B1PAL2SF2 – M8 Stainless‑Steel Flush‑Mount Inductive Sensor

The Telemecanique XS608B1PAL2SF2 is a rugged, compact inductive proximity sensor designed for reliable detection of metallic targets in demanding industrial environments. Housed in a stainless-steel M8 body, this flush-mount sensor features PNP switching, an extended 2 m cable, and IP67 protection for robust, maintenance-free performance.

⸻

Key Features

• Model: XS608B1PAL2SF2 — part of the OsiSense XS6 series

• Detection Distance: 2.5 mm (0.098 in)

• Output Configuration: PNP, Normally Open (1 NO), 3‑wire connection via cable (approx. 2 m)

• Supply Voltage: 12–48 VDC with reverse polarity protection

• Housing Material: Stainless steel (303) with PPS sensing face; cylindrical M8 x 51 mm length

• Ingress Protection: IP67 (watertight and dustproof)

• Electrical Specs: ≤200 mA switching current with built-in overload and short-circuit protection

• Indicator: Yellow LED for output status visible on sensor face

• Performance: Response time ~0.2 ms, recovery ~0.2 ms, switching frequency up to 2,500 Hz

• Environmental Ratings: Operating temperature –25 °C to +70 °C; shock/vibration rated per IEC standards
