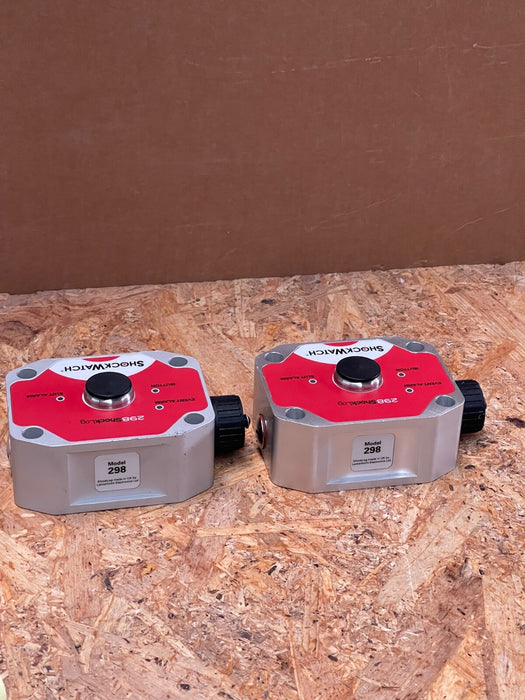

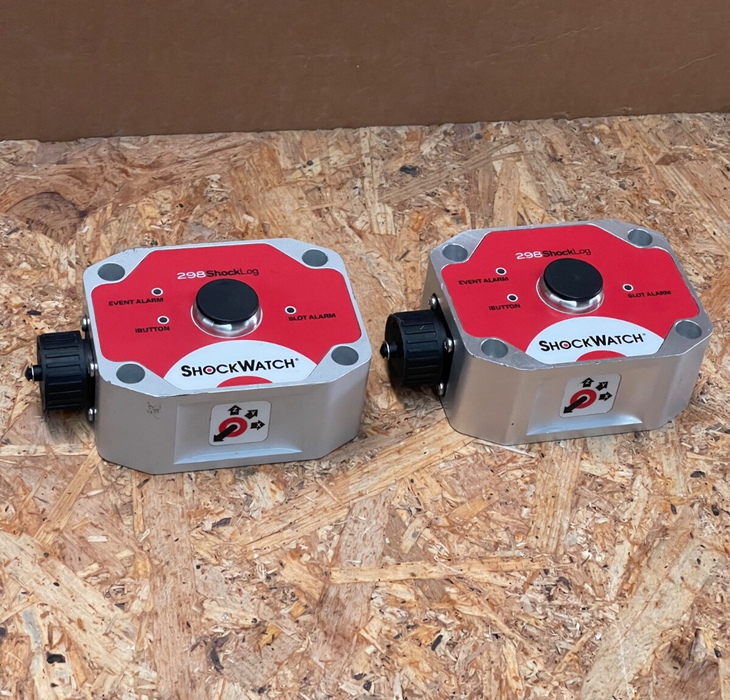

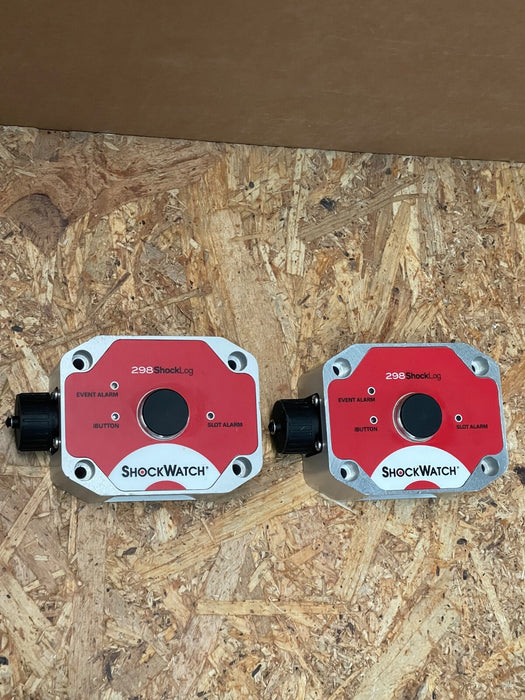

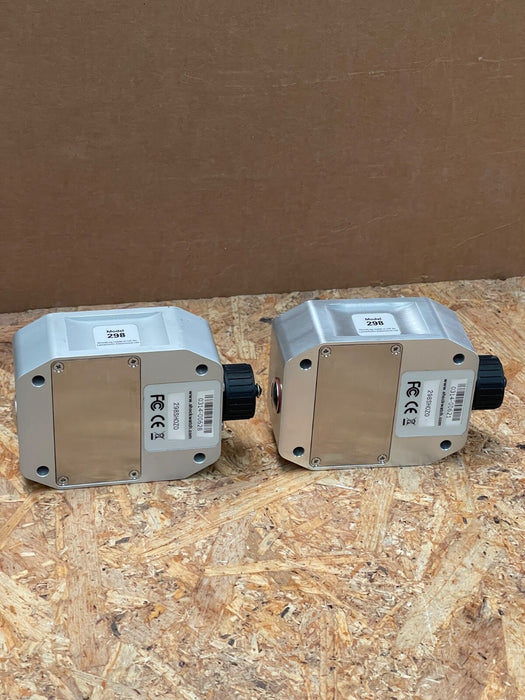

The ShockWatch 298SH0Z0 (ShockLog 298) is a robust, tri-axial piezoelectric impact recorder designed to monitor and log shock, vibration, and environmental events. With onboard high-resolution memory for over 870 events and 262,000 time slots, this standalone device is ideal for monitoring sensitive equipment during shipping, industrial use, or storage.

Key Features:

Model: 298SH0Z0 (ShockLog 298)
Brand: ShockWatch / SpotSee
Sensor: Tri‑axial piezoelectric accelerometer recording impact peaks, gRMS, and internal temperature
Memory Capacity: Logs up to 870 impact events and 262,000 time-slot records
Data Rates & Filters: User-configurable acceleration ranges (1–200 g), velocity and hardware frequency filters (10–250 Hz)
Alarms & Indicators: Multi-color LED system (Green = OK, Amber = Warning, Red = Alarm) when threshold levels are exceeded
Optional Sensors: Compatible with external temperature, humidity, pressure, tilt/roll, GPS, and cellular modules
Connectivity & Software: PC interface via iButton/USB; setup and data analysis through dedicated software
Durability: IP-rated enclosure; survival drop tested to 1 m; operational temperature range –40 °C to +85 °C
Dimensions & Weight: Approx. 123 × 78 × 55 mm, 515 g

1xPc ShockWatch – 298SH0Z0 – ShockLog 298 Impact Recorder &amp; Data Logger

1xPc ShockWatch – 298SH0Z0 – ShockLog 298 Impact Recorder & Data Logger
