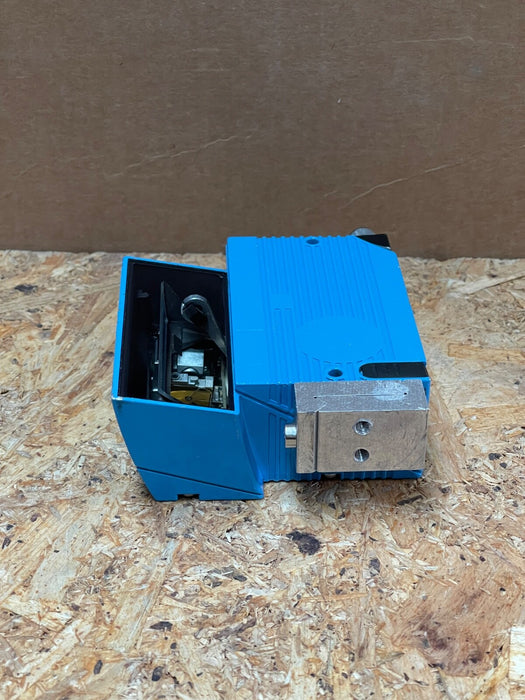

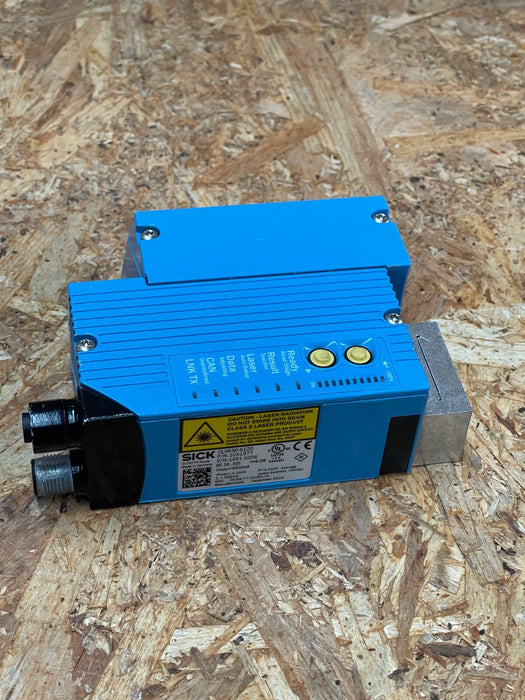

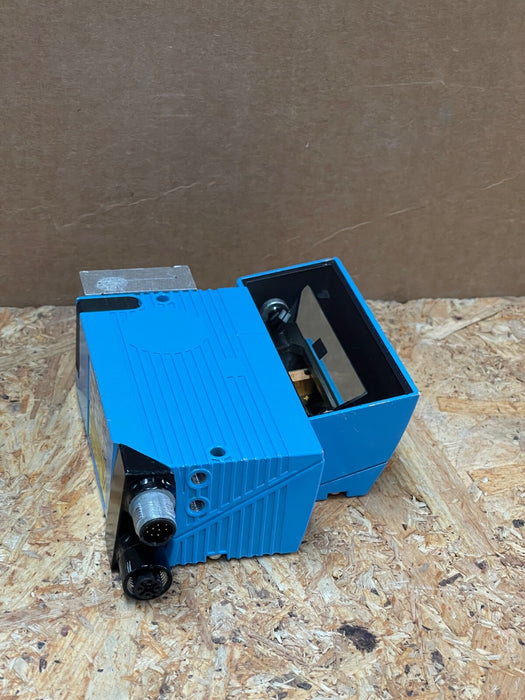

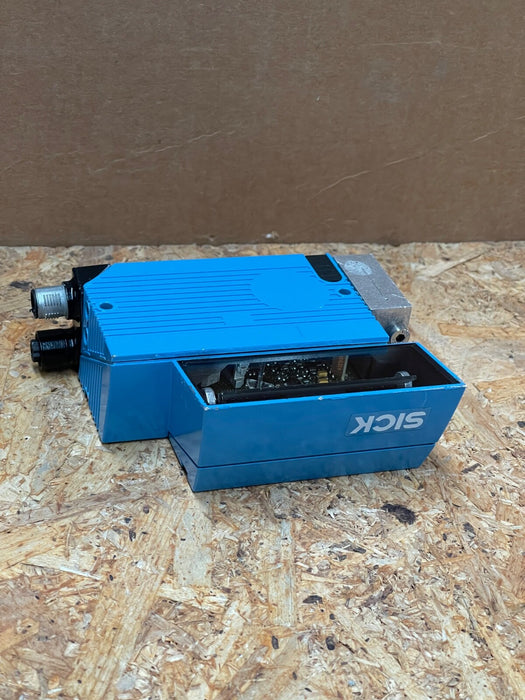

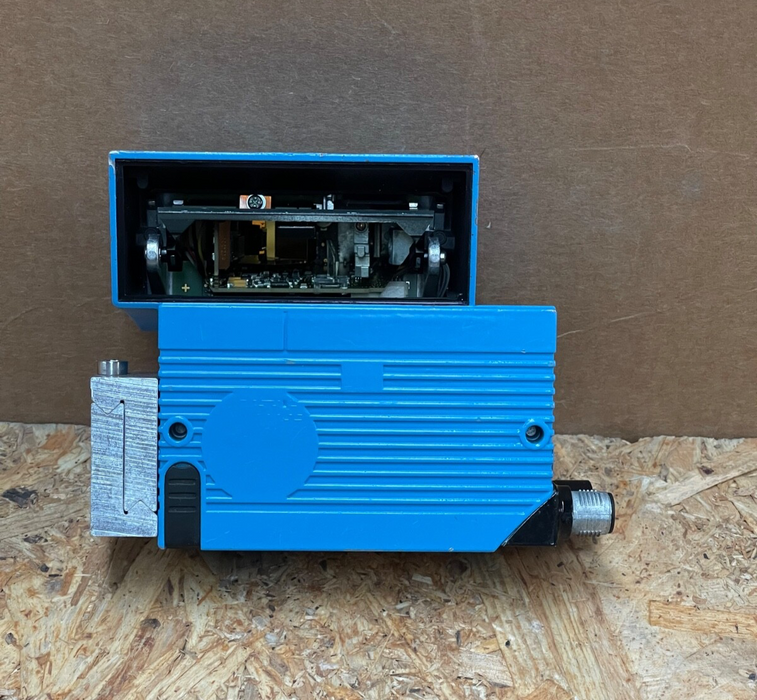

SICK – CLV630‑6120 (1041977) – Long‑Range Fixed Scanner, Ethernet / PROFINET

The SICK CLV630‑6120 (1041977) is a long-range, fixed-mount 1D barcode scanner, part of the CLV63x series. Featuring a laser spot and oscillating mirror, it reads 1D labels from up to 659 mm away and supports multiple industrial network protocols including Ethernet, PROFINET, EtherNet/IP, EtherCAT, CAN/CANopen, and serial. Built with a durable die-cast aluminum housing and IP65 protection, it’s ideal for automation environments.

Key Features & Technical Specifications:

• Model / Part No.: CLV630‑6120 (1041977) – long-range version

• Optics: Laser spot, fixed focus; scanning field up to 659 mm @ 0.35–1 mm resolution; oscillating mirror at 400–1,200 Hz

• Connectivity: Ethernet-based interfaces (TCP/IP, PROFINET, EtherNet/IP, EtherCAT), plus RS-232/422/485 serial and CAN/CANopen; supports up to 100 MBit/s

• Inputs / Outputs: 3 digital inputs; optional digital outputs via CMC600; microSD memory support; 6 LED indicators + beeper

• Optical Safety: Laser class 2 compliant with IEC 60825‑1 & FDA standards

• Power / Durability: 18–30 V DC @ 6 W; IP65 housing, die-cast aluminum; operating temp 0–40 °C; MTTF 40,000 h

• Mechanical: ~350 g; dimensions 95 × 107 × 41 mm; two M12 connectors
