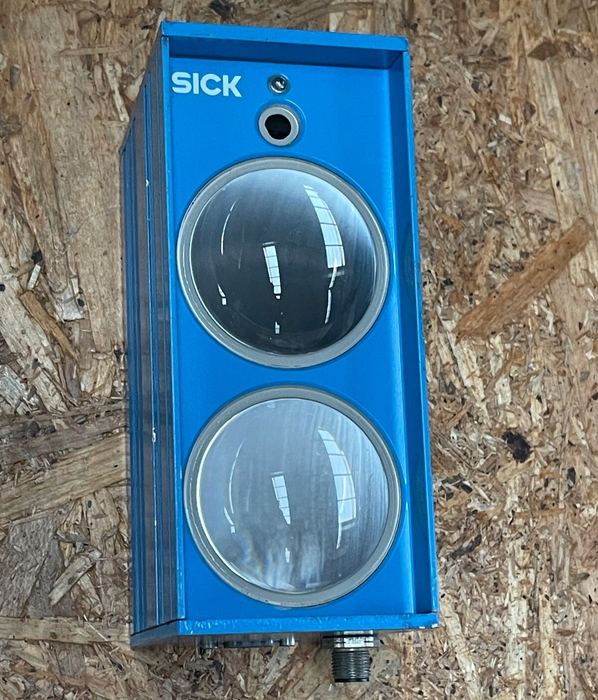

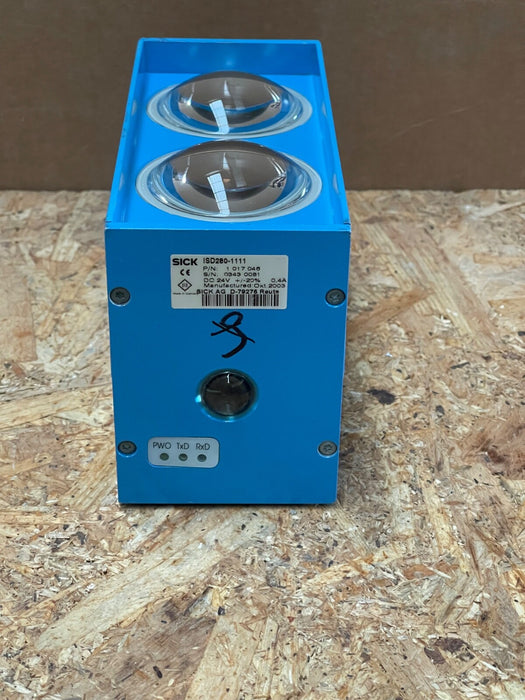

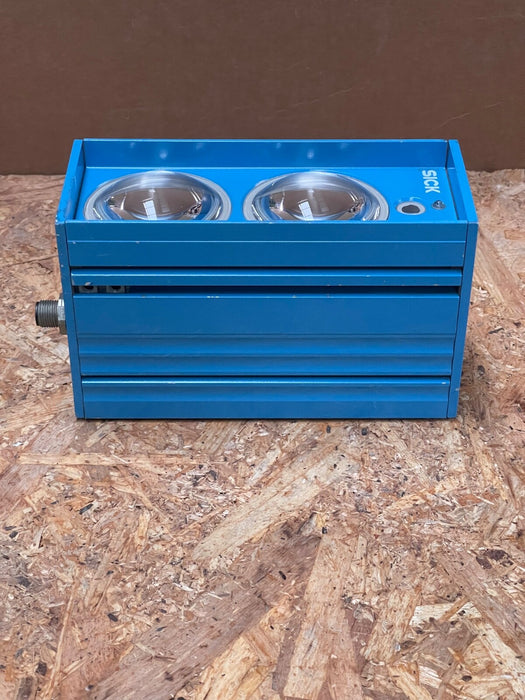

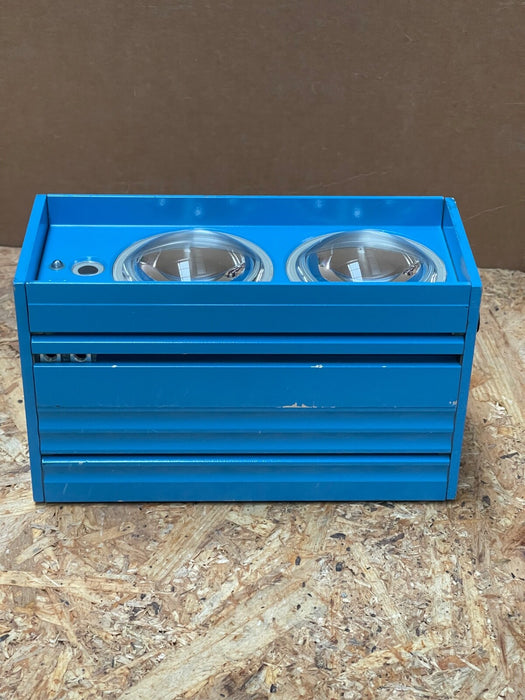

SICK – ISD280‑1111 (1017046) – Infrared Optical Data Transmitter(0.2–150 m)

Main Features

• Manufacturer: SICK AG — specialist in industrial sensing solutions

• Model/MPN: ISD280‑1111, Order No. 1017046

• Device Type: Optical data transmitter for contactless, high-speed communication over RS‑422/485 and PROFIBUS DP

• Transmission Range: 0.2 m to 150 m, with infrared LED (860 nm), and ~1.4 m beam diameter at 100 m

• Performance:

  • Data rate up to 1.5 MBaud (≤ 0.5 MBaud up to +55 °C)

  • Signal latency ≤ 2 µs; switching output (UV–2 V) fault indicator, 20 mA

• Electrical Info:

  • Power: 24 V DC; current consumption ≤ 0.4 A (no heating), ≤ 2.5 A (with heating)

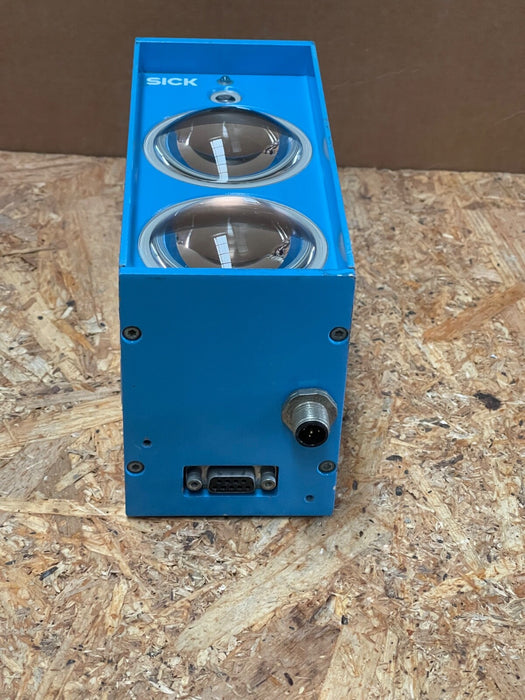

  • Connectors: 9‑pin D‑Sub (data), 5‑pin M12 (power/control)

• Mechanical & Environmental:

  • Metal housing, ~1 kg, IP54 rated, protection class III

  • Ambient temperature: 0–40 °C (–38 °C with heater), max 55 °C @ reduced speed
