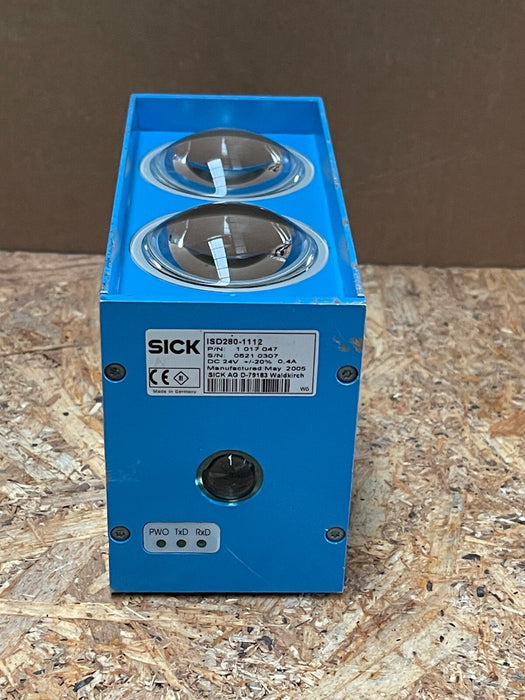

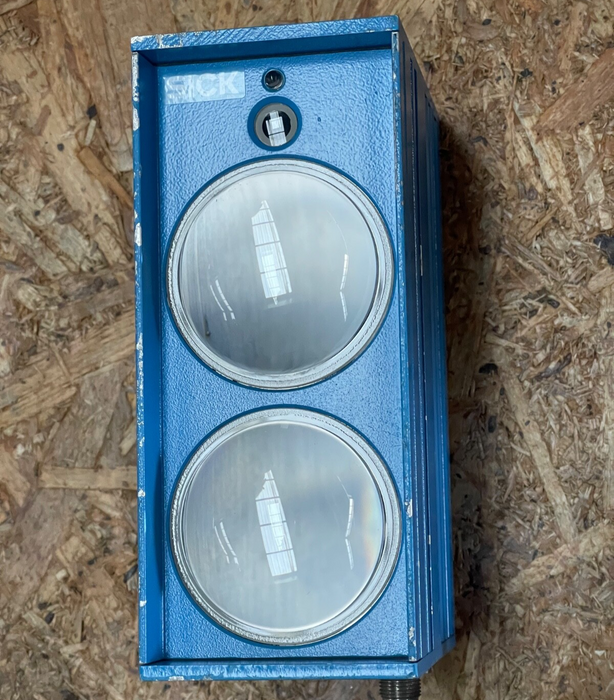

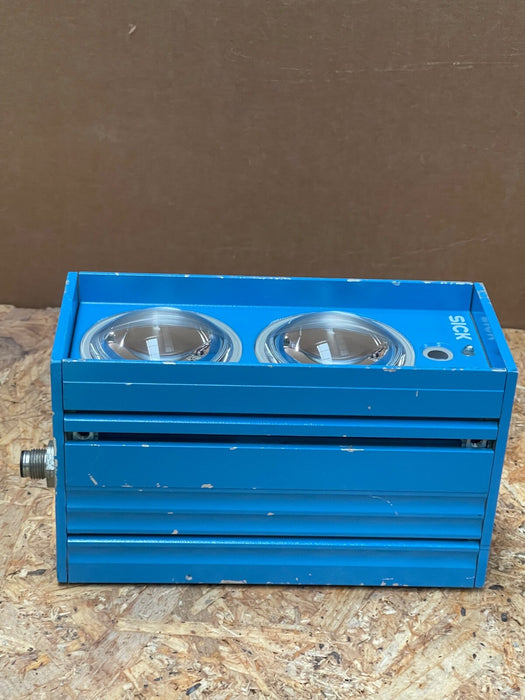

SICK – ISD280‑1112 (1017047) – Infrared Data Transmission Unit (24 V DC)

Main Features

• Manufacturer: SICK AG – sensor technology specialist

• Model/MPN: ISD280‑1112, part no. 1017047

• Device Type: Infrared optical data transmission system (light barrier) for RS-422/RS-485 communication

• Supply Voltage & Current: 24 V DC ±20 %; consumption ~0.4 A

• Transmission Specs:

  • Infrared LED at 860 nm

  • Operating range: 0.2 m to 150 m

  • Beam spot size: ~1.4 m at 100 m

• Interface & Indicators:

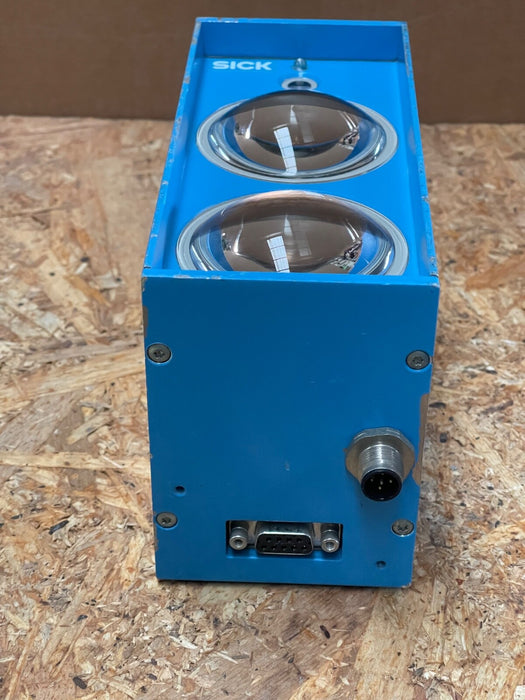

  • 9‑pin D‑Sub connector for data (RS‑422/485)

  • 5‑pin M12 connector for power and control

  • LEDs for light beam alignment, power, TxD/RxD status

• Mechanical / Environmental:

  • Robust metal housing, approximate weight ~1 kg

  • Protection rating: IP54
