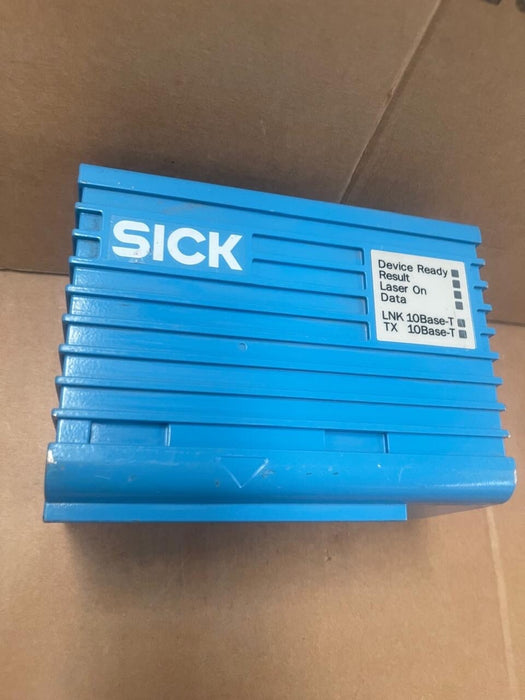

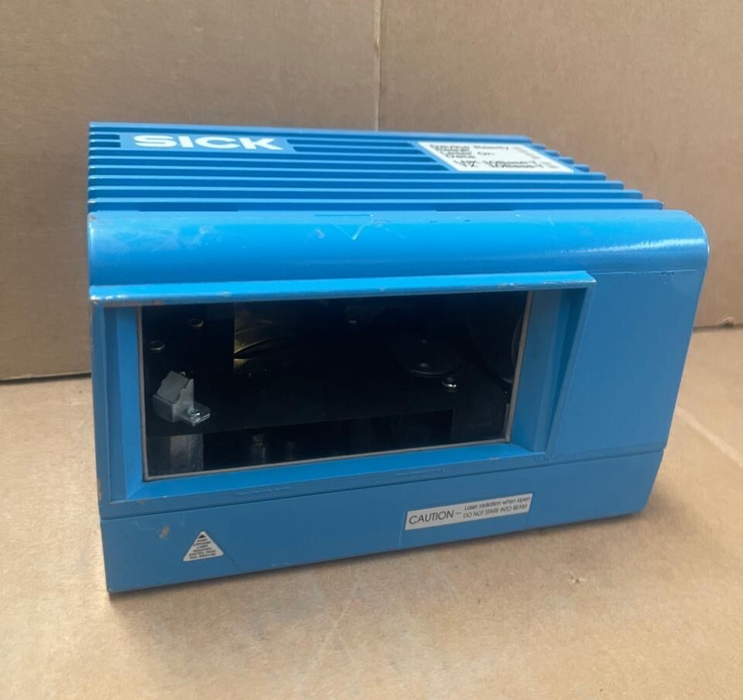

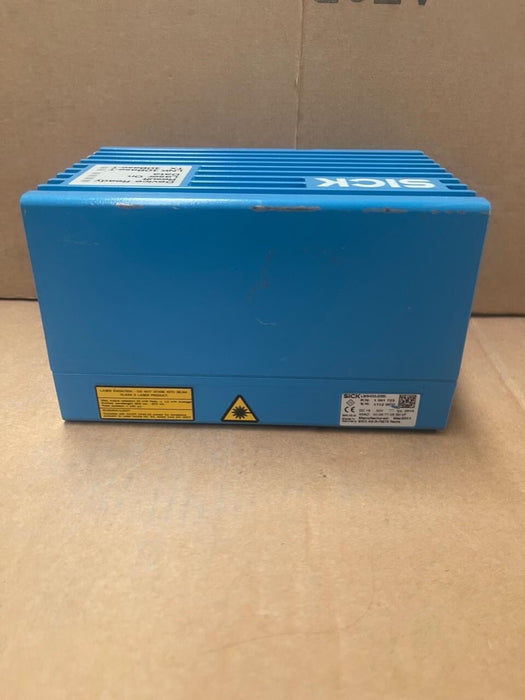

SICK - LMS400-2000 - 2D LiDAR Sensor, Short-Range, Indoor Use, 0.7–3 m Range

 Product Overview

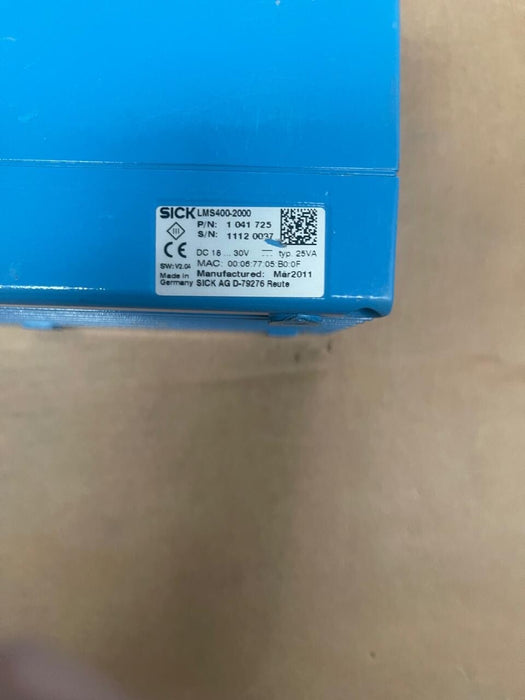

The SICK LMS400-2000 (Part No. 1041725) is a high-precision 2D LiDAR sensor designed for indoor applications requiring accurate distance and contour measurements. Equipped with a visible red light laser, it offers a scanning range of up to 3 meters and features an integrated “Level Control” application for reliable detection of objects within containers, regardless of their color or position.

🔧 Key Specifications

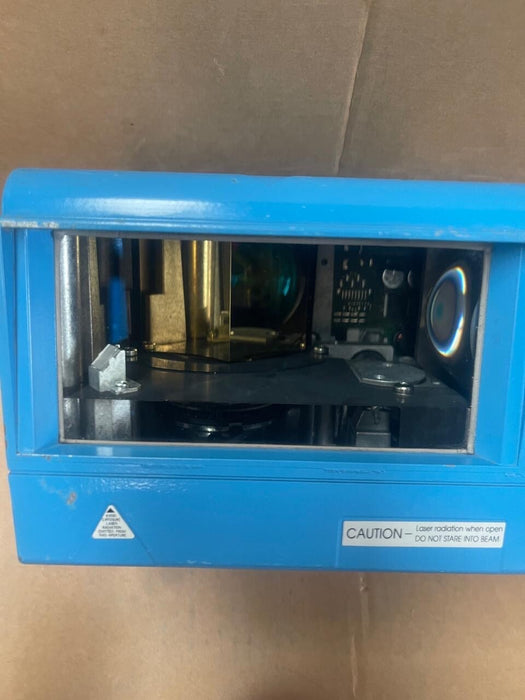

• Laser Type: Visible red light (650 nm), Laser Class 2 (Class 1 in standby)

• Scanning Range: 0.7 m to 3 m

• Aperture Angle: 70°

• Angular Resolution: Configurable between 0.1° and 1.0°

• Scanning Frequency: 300 Hz to 500 Hz

• Response Time: ≥ 2 ms

• Measurement Accuracy:



  • Systematic Error: ±4 mm

  • Statistical Error: ±3 mm

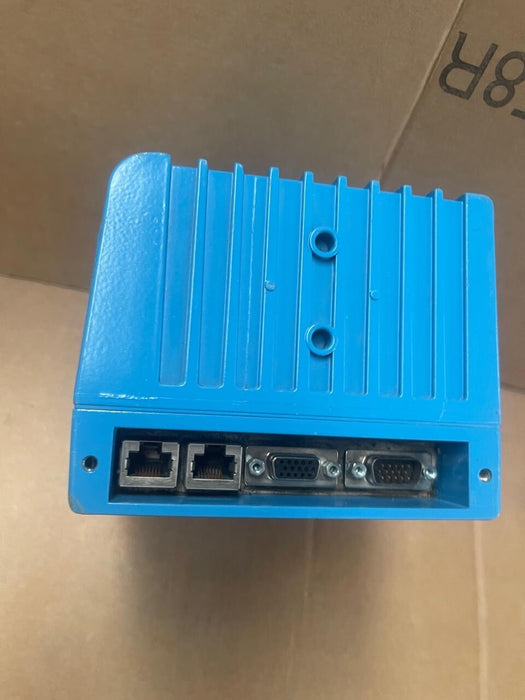

• Interfaces:



  • Ethernet: TCP/IP, 10 Mbit/s, half-duplex

  • Serial: RS-232

  • Digital Inputs: 4

  • Digital Outputs: 5 (4 x PNP, 1 x analog 4–20 mA)



• Power Supply: ≤ 24 V DC ±15%

• Power Consumption: 25 W

• Housing Material: Aluminum die-cast

• Enclosure Rating: IP65

• Dimensions (L × W × H): 179 mm × 107 mm × 130 mm

• Weight: 2.3 kg

• Operating Temperature: 0°C to +40°C

• Storage Temperature: –20°C to +70°C

• Integrated Application: Level Control

🛠️ Applications

The LMS400-2000 is ideal for:

• Material handling and logistics

• Filling level detection in containers

• Depalletizing tasks

• Contour verification

• Vision applications on pallets
