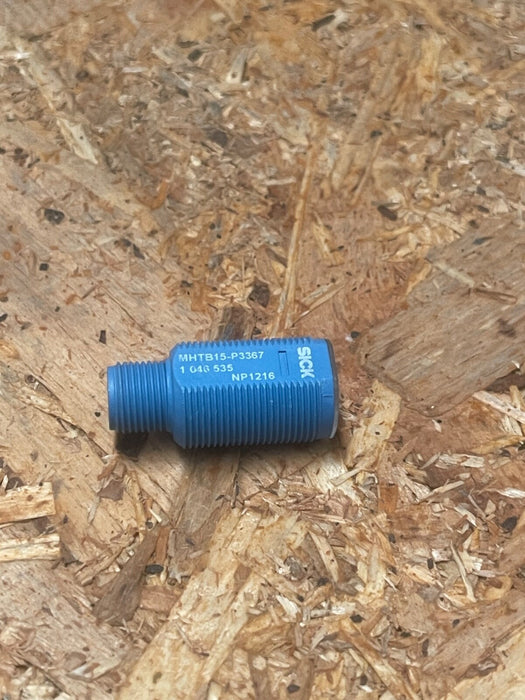

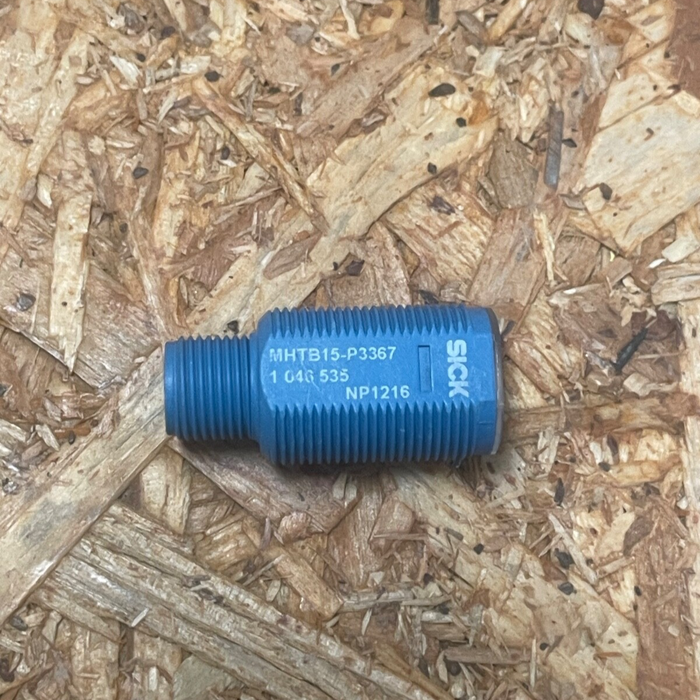

SICK – MHTB15‑P3367 (1046535) – M18 Background‑Suppression Photoelectric Sensor

The SICK MHTB15-P3367 (1046535) is a compact M18 cylindrical photoelectric sensor with advanced background suppression, ideal for precise detection in automation applications. Featuring a red PinPoint LED and a potentiometer for adjustable sensing range, it reliably senses objects from 3 mm up to 300 mm with fast switching and PNP output.

Key Features:

• Model: MHTB15‑P3367, Part No. 1046535

• Sensing Principle: Background suppression with pinpoint 650 nm LED

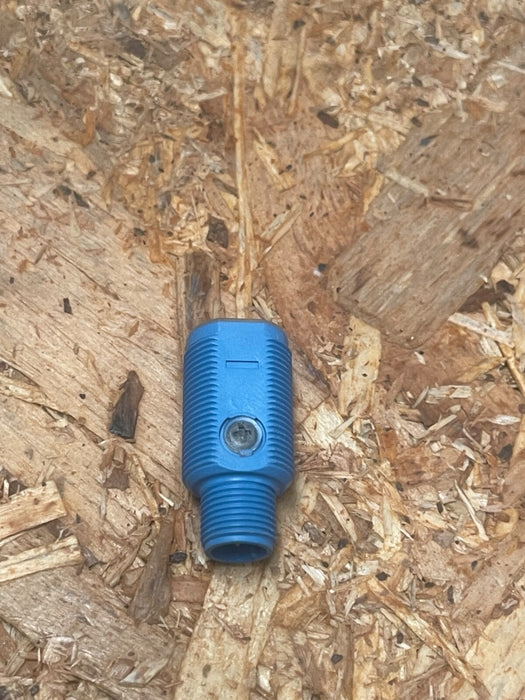

• Sensing Range: 3–300 mm (white target); adjustable via 270° potentiometer

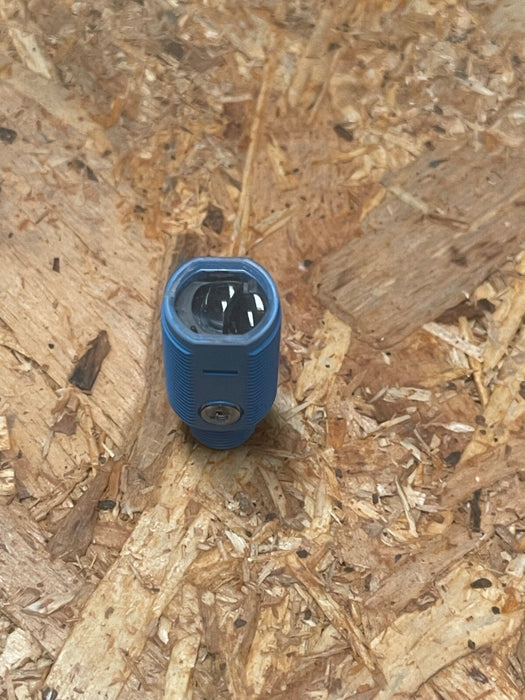

• Optical Axis: Axial; spot size Ø7 mm at 100 mm

• Output: PNP light-switching, ≤100 mA load current (≤50 mA above 50 °C)

• Electrical Specs: 10–30 V DC; current consumption 30 mA; response time ≤0.72 ms (700 Hz)

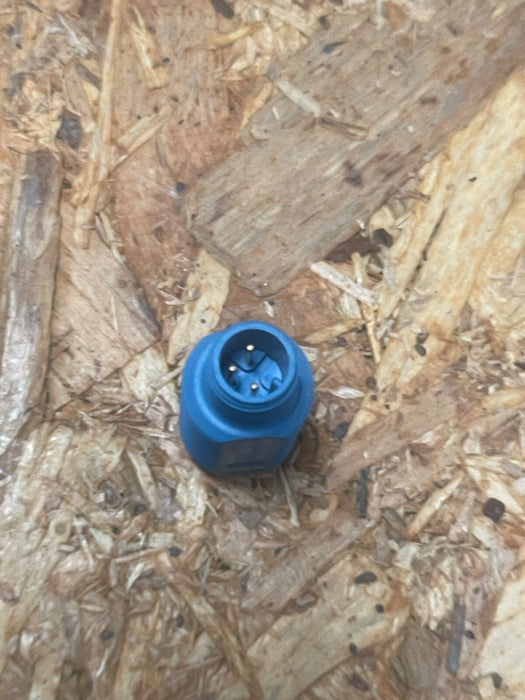

• Connection: M12 3‑pin connector

• Housing: M18×36.8 mm ABS body; IP67/IP69K rated; plastic optics; weight ~7 g

• Protection: Reverse-polarity, EMC suppression, short-circuit protection

• Temperature Range: –25 °C to +55 °C operating; –25 °C to +70 °C storage

• Certifications: UL listed; CE/China-RoHS compliant
